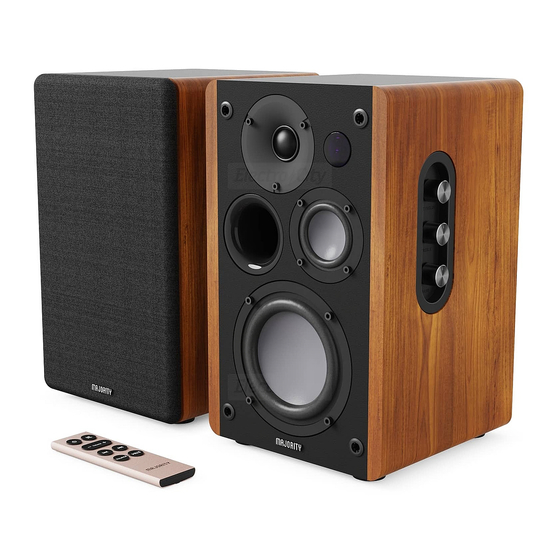

- Page 1 D100 Bookshelf Speakers User Manual H O M E A U D I O • C A M B R I D G E...
-
Page 2: Table Of Contents
Contents What’s In the Box?......................Controls And Functions…………………………..…………………………………………...... Instructions Guide………………………………………………………………………………..…....Basic Operation……………………………………………………………………………………. Bluetooth Mode…………………………………………………………………………………… USB Port Usage…………………………………………………………………………………… HDMI ARC Input………………………………………………………………………....Optical & Phono Input……………………………………………………………………..Audio Input………………………………………………………………………………………….. Troubleshooting & Support……………………………………………..………………………………..Product Specifications………………………………………………………………………………………... Warranty………………………………………………………………………………………………………………. Safety Information……………………………………………………………………………....... -
Page 3: Box Contents
Box Contents What’s in the Box? Majority D100 speakers Remote Control Power Cable User Manual Speakers connecting cable... -
Page 4: Controls And Functions
Controls & Functions Front View 1.Power/ Standby LED Light Indicator. •The red light indicates that the speakers are in Standby Mode. •The green light indicates that the speakers are switched on (working mode). 2. Remote Control Sensor 3. Input / Volume Knob •Press to power on the speakers. - Page 5 Controls & Functions Back View 6. AC IN Port 11. Optical Input 7. Power switch 12. Headphone Socket 8. Speaker connecting Port 13. HDMI ARC Port 9. Audio Input 14. Connecting Port with the left speaker 10. USB Port 15. Phono Input Port PLEASE NOTE: The USB port is only to be used for playback from a USB stick or for charging a mobile phone using a USB cable (not included).
-
Page 6: Remote Control
Remote Control 16. Power ON/ Standby Mode 17. Mute •Press to mute or resume sound. •Press and hold for 4-5 seconds to hear which mode the speakers are 18. Volume - 19. Volume + 20. 'Previous'. •Press to skip and play previous track in Bluetooth or USB Mode. -
Page 7: Remote Control Usage
Remote control usage Prepare your remote for usage. Open the battery slot, position CR2032 the battery into its slot as per this diagram. Remote Control Operational Range The remote control sensor on the front of the unit is sensitive to the remote-control commands of up to a 5 metres distance and within a maximum of a 60º... -
Page 8: Basic Operation
If the volume level of the audio source connected with the speakers is set to minimum, the D100 might recognise this as 'No Audio Signal'. This will affect the capability of signal detection and can also lead to the unit automatically switching to Standby Mode. - Page 9 Basic Operations Changing the audio play mode Press the 'Source' button on the remote control (Rem.22) repeatedly to change the playing mode: BT-USB-AUDIO-PHONO-HDMI ARC-OPTICAL. Alternatively, press the 'Input/Volume' button (Ref.3) on the speaker repeatedly. A voice message will announce each mode. Adjust the Volume Level Press the 'Volume +/–' buttons to adjust the volume- the POWER indicator will flash a green light when doing so.
-
Page 10: Bluetooth Mode
Bluetooth Mode (BT) The Majority D100 Speakers can be paired via Bluetooth with a device such as a smartphone or a tablet or any other Bluetooth enabled device to play audio from via the speakers. Ensure the D100 Speakers are powered on before connecting with another •... -
Page 11: Usb Port Usage
USB Port Usage USB Charging Port The USB port on Majority D100, can be used as a charging port for phones or small similar devices. Connect your phone using an USB cable (not included) and insert into the speakers USB port (Ref.10).... -
Page 12: Hdmi Arc Input
HDMI ARC/ eARC Input The Majority D100 Speakers can be connected to a TV with compatible HDMI-CEC and ARC (Audio Return Channel). Using an HDMI high-speed cable which supports ARC function (not • included), insert one end into the HDMI port on the rear of the main speaker (Ref.13) and the other end into the HDMI ARC port on the TV.... -
Page 13: Optical & Phono Input
Optical & Phono Input Using the Optical Input, you can connect the Majority D100 with a TV/DVD/SET BOX, outputs using an optical cable. Insert one end of the optical cable into the optical input port on the rear • panel of the main speaker (Ref.11) and the other end into your device optical output port.... -
Page 14: Audio Input
AUDIO (Analogue) Input The Majority D100 Speakers can be connected with an audio source using the 'audio input' port with a TV/ PC/ DVD Player. For this, you can use two different cable types such as: AUX (3.5mm jack) to RCA, or AUX(3.5 mm) to AUX (3.5 mm).... -
Page 15: Troubleshooting & Support
Function disturbance then plug these back in and connect again with your device, then power on the speakers. Support If you require further assistance with your Majority D100 Bookshelf speakers, please contact our tech support team on the Majority website: www.majority.co.uk/support... -
Page 16: Product Specifications
All products come with a standard 12-month warranty. All items must be registered within 30 days of purchase, on www.majority.co.uk for the warranty to be valid. Once on the web page, use the menu to find ‘Register Your Product’. You will also be given... -
Page 17: Safety Information
Read these instructions. ADDITIONAL WARNINGS Keep these instructions. Instructions are also The apparatus shall not be exposed to dripping, available for download at www.majority.co.uk. splashing or objects filled with water. Heed all warnings. Follow all instructions. The main plug is used to disconnect the device. In Do no clean the apparatus near or with water. -
Page 18: Eu Declaration Of Conformity
EU RP: AR Experts, P.O. Box 5047, 3620 AA Breukelen, The Netherlands US: iZilla Ltd, C/O A.N. Deringer, Inc., 19520 Wilmington Ave, Rancho Dominguez, CA, 90220 Majority is owned and operated by iZilla Ltd. Registered in England with Company No: 08520738...
