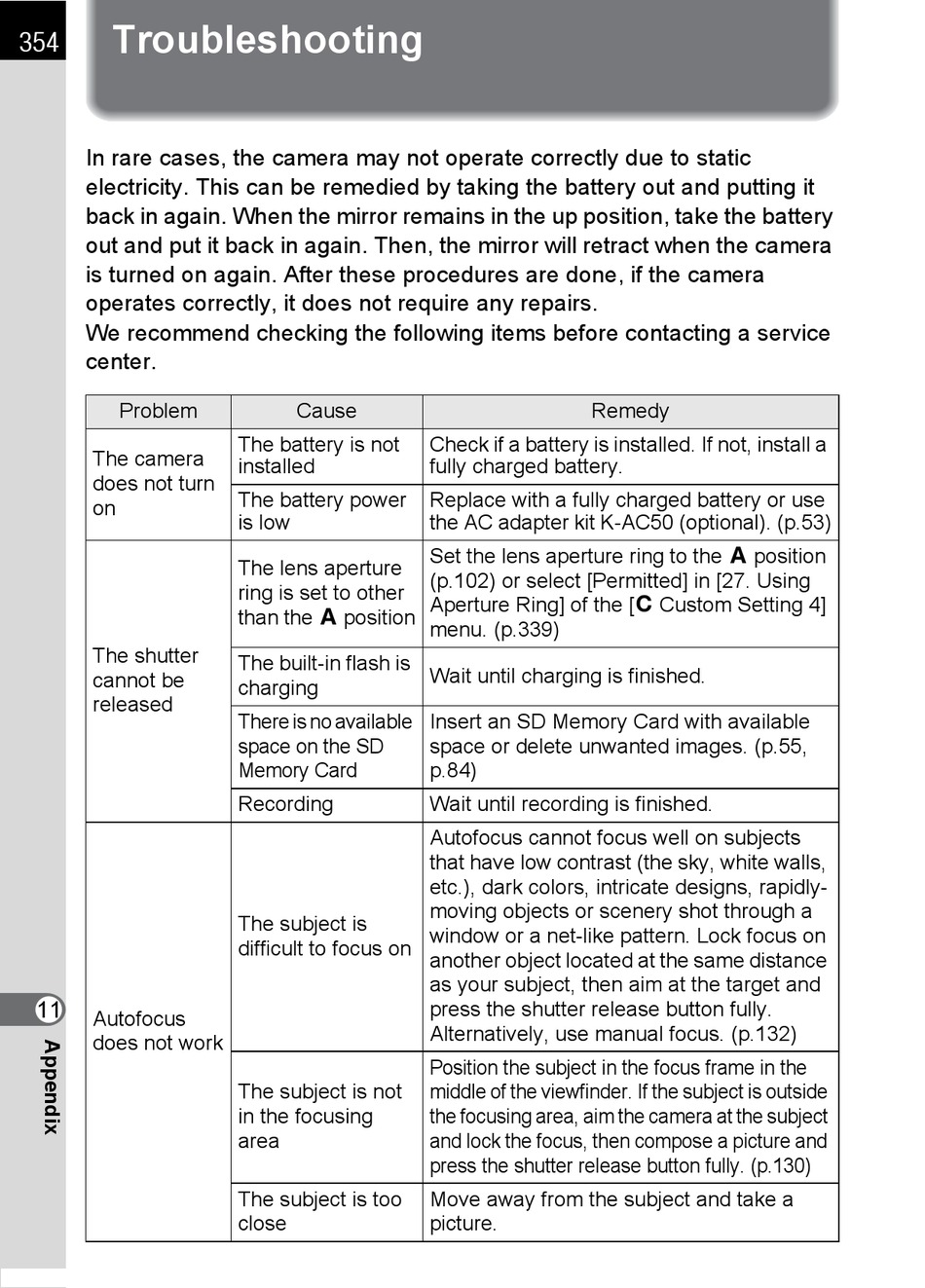

Troubleshooting

354
In rare cases, the camera may not operate correctly due to static
electricity. This can be remedied by taking the battery out and putting it
back in again. When the mirror remains in the up position, take the battery
out and put it back in again. Then, the mirror will retract when the camera
is turned on again. After these procedures are done, if the camera
operates correctly, it does not require any repairs.
We recommend checking the following items before contacting a service
center.
Problem
The camera
does not turn
on
The shutter
cannot be
released
11
Autofocus
does not work
Cause
The battery is not
installed
The battery power
is low
The lens aperture
ring is set to other
than the s position
The built-in flash is
charging
There is no available
space on the SD
Memory Card
Recording
The subject is
difficult to focus on
The subject is not
in the focusing
area
The subject is too
close
Remedy
Check if a battery is installed. If not, install a
fully charged battery.
Replace with a fully charged battery or use
the AC adapter kit K-AC50 (optional). (p.53)
Set the lens aperture ring to the s position
(p.102) or select [Permitted] in [27. Using
Aperture Ring] of the [A Custom Setting 4]
menu. (p.339)
Wait until charging is finished.
Insert an SD Memory Card with available
space or delete unwanted images. (p.55,
p.84)
Wait until recording is finished.
Autofocus cannot focus well on subjects
that have low contrast (the sky, white walls,
etc.), dark colors, intricate designs, rapidly-
moving objects or scenery shot through a
window or a net-like pattern. Lock focus on
another object located at the same distance
as your subject, then aim at the target and
press the shutter release button fully.
Alternatively, use manual focus. (p.132)
Position the subject in the focus frame in the
middle of the viewfinder. If the subject is outside
the focusing area, aim the camera at the subject
and lock the focus, then compose a picture and
press the shutter release button fully. (p.130)
Move away from the subject and take a
picture.
