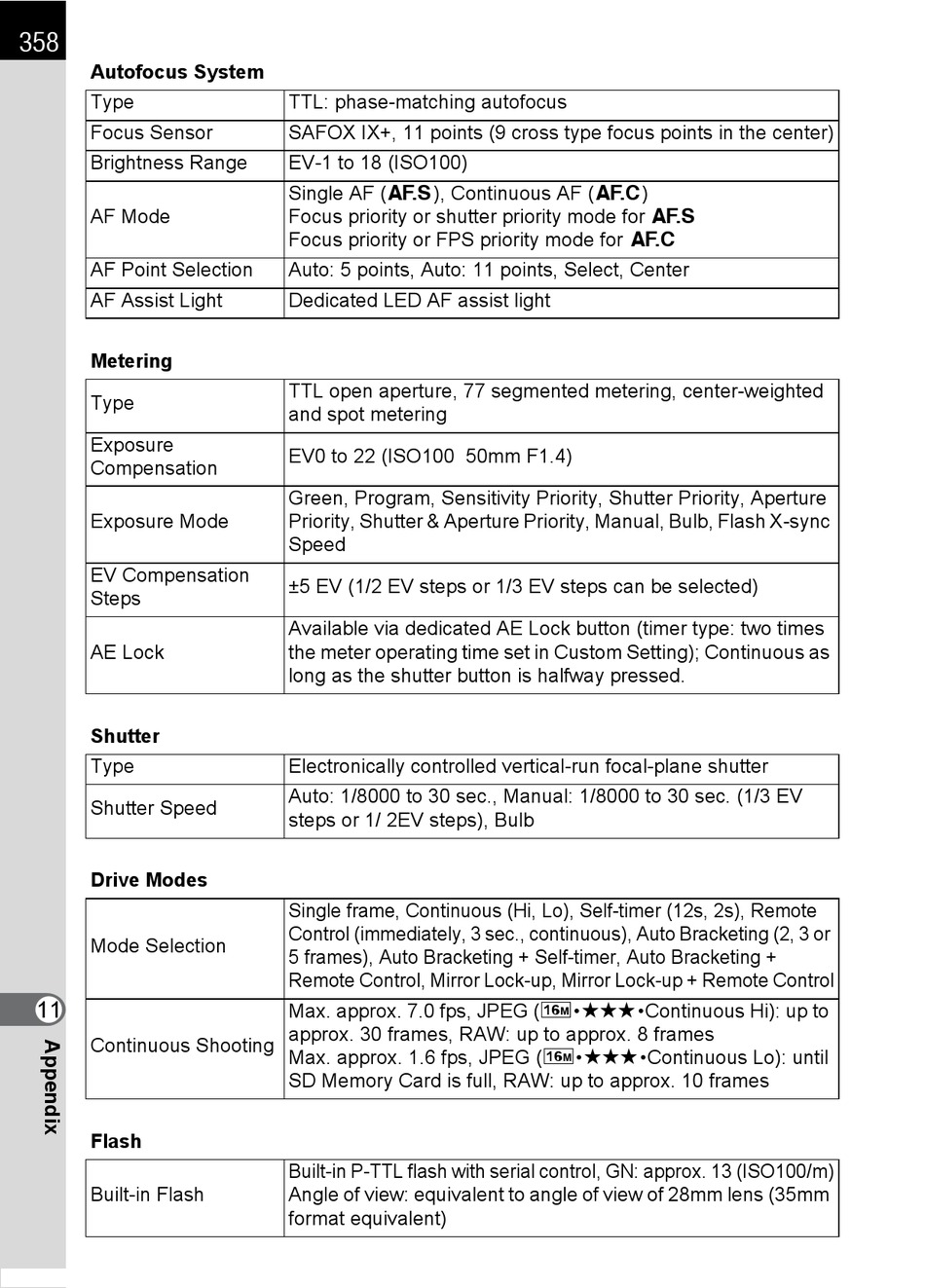

Pentax K-5 Operating Manual page 360

358
Autofocus System
Type
Focus Sensor
Brightness Range
AF Mode
AF Point Selection
AF Assist Light
Metering
Type
Exposure
Compensation
Exposure Mode
EV Compensation
Steps
AE Lock
Shutter
Type
Shutter Speed
Drive Modes
Mode Selection
11
Continuous Shooting
Flash
Built-in Flash
TTL: phase-matching autofocus
SAFOX IX+, 11 points (9 cross type focus points in the center)
EV-1 to 18 (ISO100)
Single AF (l), Continuous AF (k)
Focus priority or shutter priority mode for l
Focus priority or FPS priority mode for k
Auto: 5 points, Auto: 11 points, Select, Center
Dedicated LED AF assist light
TTL open aperture, 77 segmented metering, center-weighted
and spot metering
EV0 to 22 (ISO100 50mm F1.4)
Green, Program, Sensitivity Priority, Shutter Priority, Aperture
Priority, Shutter & Aperture Priority, Manual, Bulb, Flash X-sync
Speed
±5 EV (1/2 EV steps or 1/3 EV steps can be selected)
Available via dedicated AE Lock button (timer type: two times
the meter operating time set in Custom Setting); Continuous as
long as the shutter button is halfway pressed.
Electronically controlled vertical-run focal-plane shutter
Auto: 1/8000 to 30 sec., Manual: 1/8000 to 30 sec. (1/3 EV
steps or 1/ 2EV steps), Bulb
Single frame, Continuous (Hi, Lo), Self-timer (12s, 2s), Remote
Control (immediately, 3 sec., continuous), Auto Bracketing (2, 3 or
5 frames), Auto Bracketing + Self-timer, Auto Bracketing +
Remote Control, Mirror Lock-up, Mirror Lock-up + Remote Control
Max. approx. 7.0 fps, JPEG (p•C•Continuous Hi): up to
approx. 30 frames, RAW: up to approx. 8 frames
Max. approx. 1.6 fps, JPEG (p•C•Continuous Lo): until
SD Memory Card is full, RAW: up to approx. 10 frames
Built-in P-TTL flash with serial control, GN: approx. 13 (ISO100/m)
Angle of view: equivalent to angle of view of 28mm lens (35mm
format equivalent)
