220

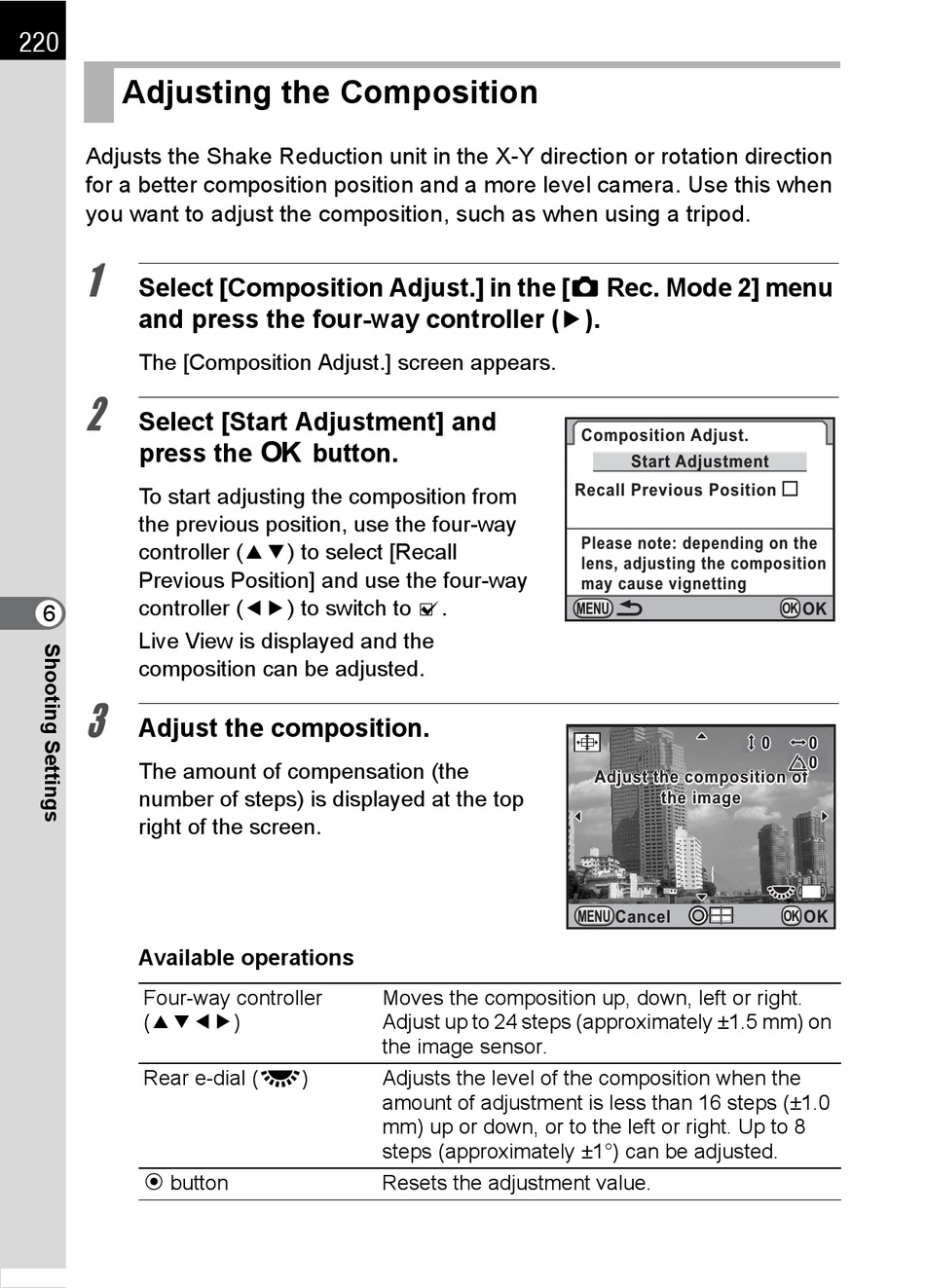

Adjusting the Composition

Adjusts the Shake Reduction unit in the X-Y direction or rotation direction
for a better composition position and a more level camera. Use this when
you want to adjust the composition, such as when using a tripod.
1
Select [Composition Adjust.] in the [A Rec. Mode 2] menu
and press the four-way controller (5).
The [Composition Adjust.] screen appears.
2
Select [Start Adjustment] and
press the 4 button.
To start adjusting the composition from
the previous position, use the four-way
controller (23) to select [Recall
Previous Position] and use the four-way
controller (45) to switch to O.
6
Live View is displayed and the
composition can be adjusted.
3
Adjust the composition.
The amount of compensation (the
number of steps) is displayed at the top
right of the screen.
Available operations
Four-way controller
(2345)
Rear e-dial (S)
| button
Moves the composition up, down, left or right.
Adjust up to 24 steps (approximately ±1.5 mm) on
the image sensor.
Adjusts the level of the composition when the
amount of adjustment is less than 16 steps (±1.0
mm) up or down, or to the left or right. Up to 8
steps (approximately ±1°) can be adjusted.
Resets the adjustment value.
Composition Adjust.
Start Adjustment
Recall Previous Position
Please note: depending on the
lens, adjusting the composition
may cause vignetting
MENU
Adjust the composition of Adjust the composition of
the image the image
MENU
Cancel
OK OK
0 0 0 0
0 0
OK OK
