STARLINK MINI ROOF RACK MOUNT Install Manual page 4

INSTALL

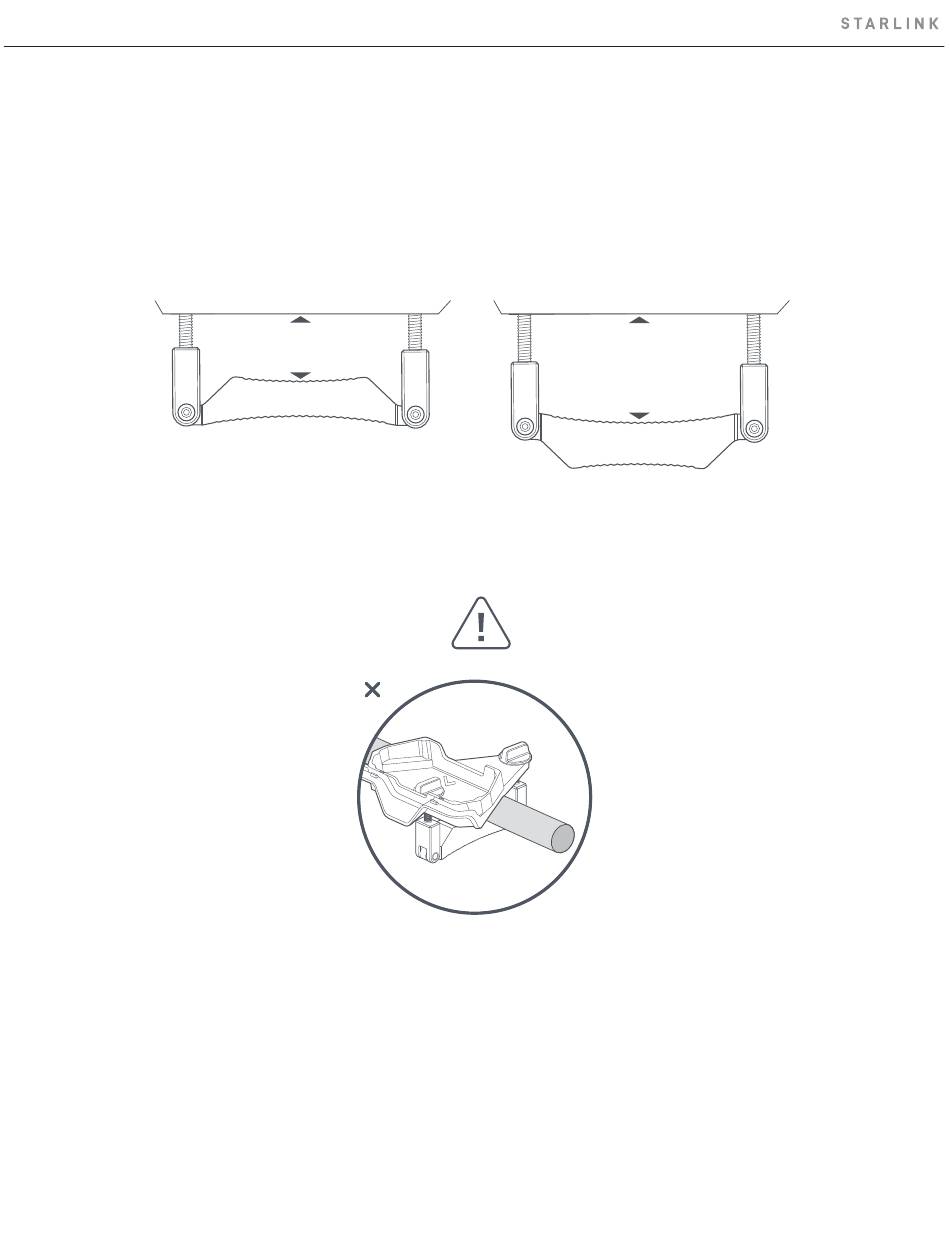

Determine Correct Grip Pad Orientation
4 |
Determine the correct grip pad orientation based on the thickness of the roof rack bar on your vehicle.
The Mini Roof Rack Mount can accommodate bars up to 88 mm (3.5 in) wide. The short side should be used with bars 12 mm (0.47 in)
to 32 mm (1.26 in) thick. The long side should be used for all other bars up to 48 mm (1.89 in) thick.
12 mm - 32 mm
28 mm - 48 mm
(0.47 in - 1.26 in)
(1.10 in - 1.89 in)
NOT INTENDED TO BE MOUNTED TO ROUND PROFILE BARS
