DMP 44 xi • Setup Guide
IMPORTANT NOTE:
Go to www.extron.com
before connecting the product to the power source.
The Extron DMP 44 xi is a compact 4x4 stand-alone audio matrix processor featuring a digital signal processing (DSP) platform
for audio signal routing, processing, and control. The device features four line-level audio inputs and outputs, all balanced or
unbalanced. Several audio DSP tools are available for mixing, routing, and room optimization with quick and intuitive configuration
using the DSP Configurator Pro software.
This guide provides quick start instructions for an experienced installer to set up the Extron DMP 44 xi. For full installation,
configuration, and operation details, see the DMP 44 xi User Guide, available at www.extron.com.
A
e

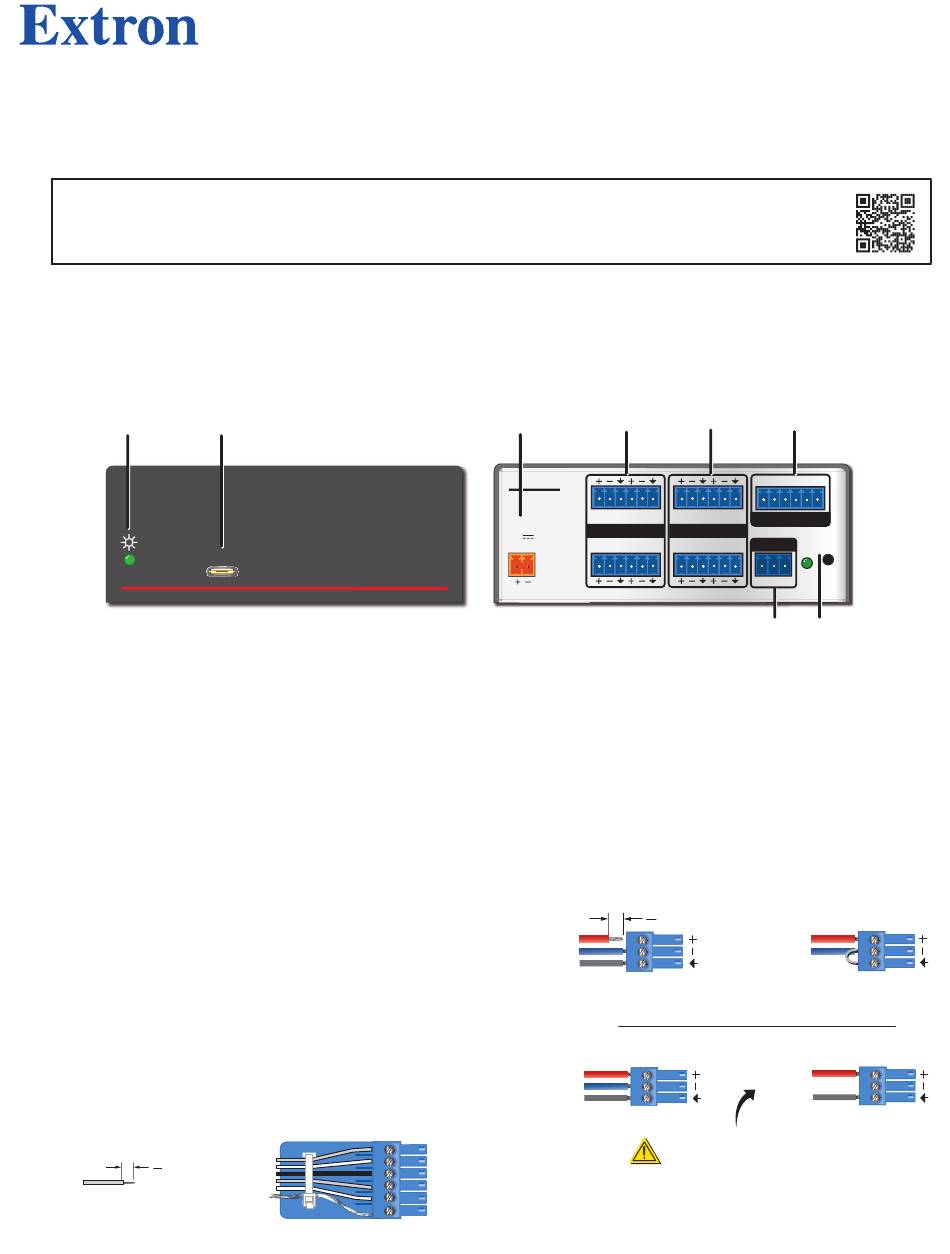

Front View
Power LED
A
Configuration port
B
Figure 1.
Installation
1.
Disconnect power from all equipment.
2. (Optional) Mount the unit to a rack or furniture using optional Extron mounting brackets and accessories
(see www.extron.com
3.
Connect the audio input. Connect up to four balanced
or unbalanced mono line-level input devices to line inputs
(see figure 1, and the audio input wiring on the right) .
D
4. Connect the audio output. For balanced or unbalanced
audio output, connect up to four output devices to line output
(see figure 1, and the audio output wiring on the right).
E
5. Connect the digital input. Up to four configurable input ports
and a + 5 V convenience port allow connection to various external
switches and sensors for remote triggering of functions within the
device (see figure 1,
The +5 VDC power pin is intended to provide power for
illuminated switches used to control the digital inputs. The
maximum current draw is 150 mA.
3 "
(5 mm) MAX.
16
Do not tin the wires!
for the complete user guide, installation instructions, and specifications
B
CONFIG
DMP 44 xi
DIGITAL MATRIX PROCESSOR
Power port
C
Line inputs 1-4
D
Front and Rear Panel Features
to determine which optional mounting accessories are compatible).
and the digital input wiring below).
F
Digital Input Wiring
C
DMP 44 xi
1
INPUTS
POWER
12V
0.5A MAX
3
Rear View
Line outputs 1-4
E
Digital inputs
F
Tip
Ring
Sleeve
Balanced Input
Tip
Ring
Sleeve
Balanced Output
1
2
3
4
+
G
D
E F
1 2 3 4
2 1 2
DIGITAL IN
OUTPUTS
RS-232
4 3 4
Tx Rx G
G H
Remote RS-232 port
G
Reset button and LED
H
Audio Input Wiring
3 " (5 mm) MAX.
16
Tip
Sleeve
Unbalanced Input
Audio Output Wiring
Tip
NO Ground Here
Sleeve
Unbalanced Output
CAUTION
For unbalanced audio, connect the sleeve
to the ground contact.
DO NOT connect the sleeve to the negative
(−) contacts.
+
G
RESET
Jumper
1
