- Page 1 CAME.COM/UK STYLOA-P24 Complete kit for a pair of swing gates weighing up to 100kg per leaf / max. width 1.8m QUICK SETUP GUIDE Typical gate setup & geometry Gate motor manual release Kit wiring diagram Control panel guide & safety...
-
Page 2: Table Of Contents

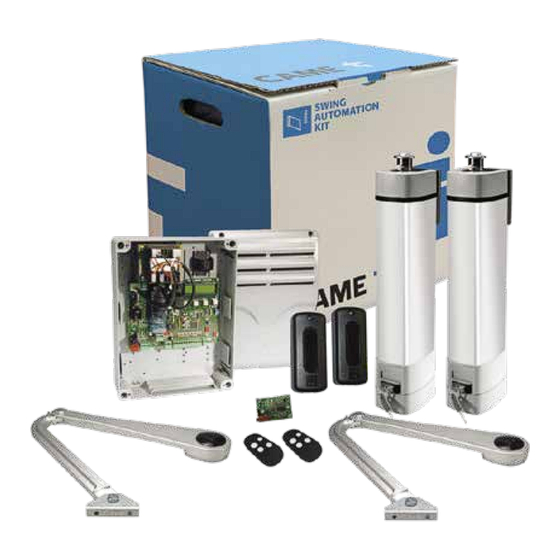

CONTENTS Control Panel: Kit Contents Quick Start Guide Safety Instructions Control Panel: Programming Transmitters Typical Gate Setup Control Panel: Safety Geometry Optional Accessories Manual Release Instructions Kit Wiring Diagram STYLOA-P24: KIT CONTENTS STYLO-ME STYLO-BS ZL92Z AF43S Motor Articulated Drive Arm Control Panel Radio Frequency Card topd4rks... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS When correctly installed in compliance to installation instructions and adhering to all current electrical, mechanical and manufacturer regulations, your automation system will provide a high degree of safety and problem free operation. Please take note of the following warnings that must be followed in order to prevent accidents during your gate operation: •... -
Page 4: Typical Gate Setup
STYLO: TYPICAL GATE SETUP OUTSIDE OF GATES INSIDE OF GATES STYLO Motor Flashing Light (optional) 2nd set of Photocells (optional) Control Panel Selector Keypad (optional) Mechanical End Stop (not supplied) Reception Antenna Photocells (on outside of gate posts) Photocell column (optional accessory) CONTROL PANEL •... -
Page 5: Preliminary Checks
stylo-BS: GEOMETRY Preliminary checks Tick 1. Check that the gate structure is sturdy enough, the hinges work efficiently and that there is no friction between the fixed and moving parts 2. Make sure that measurement does not exceed the value shown in the reference table 3. -
Page 6: Manual Release Instructions
STYLO: MANUAL RELEASE The STYLO articulated arm swing gate operator has a release mechanism located behind the hatch at the bottom of the unit. To manually RELEASE THE NON-REVERSIBLE GEARMOTOR: 1. Slide open the hatch covering the lock 2. Insert key into lock and turn until it clicks 3. -
Page 7: Wiring Diagram
230V STYLOA-P24: wiring diagram ZL92Z Control Panel AF43S Plug-in M1 N1 ENC1 EB1 M2 N2 ENC2 EB2 CX CY B1 B2 S1 GND 10 2 TX C NC TX 2 TOP-A433N Antenna Cable/length RG58 Max. 5m Mains Supply 230 V AC Cable/length Photocells 1m - 20m = 3 Core 1.5mm... - Page 8 Safety inputs should now be configured and the gate force tested as required. Please refer to the full manual to complete the commissioning. Should the gates not operate as suggested above, call CAME helpline 0115 921 0430 for technical support.
- Page 9 Press and hold the button for 2 seconds to access programming. (F1 appears on the display). Remove all transmitters – – All transmitters will be deleted. Should the transmitter not operate as suggested above, call CAME helpline 0115 921 0430 for technical support.
-
Page 10: Safety Inputs
ZL92Z: SAFETY SAFETY INPUTS FUNCTIONS > CX Input, CY Input REOPENING DURING CLOSING • When the automation is in its closing cycle and the safety circuit is triggered the automation will stop and reverse its motion until it reaches its fully open position again. - Page 11 STYLOA-P24: ACCESSORIES Code(s) Description RADIO KEYPAD SELECTORS 806SL-0170 SELT1W4G - Surface-mounted, 433.92 MHz radio-frequency keypad selector, 12-keys, with blue backlighting. 25 savable codes and password to access the programming mode. Settable in Rolling Code or Fixed Code mode. RAL7024 Grey colour. 806SL-0180 SELT1W8G - Surface-mounted, 868.35 MHz radio-frequency keypad selector, 12-keys, with blue backlighting.
- Page 12 YOU MAY NOT EVEN PARTIALLY REPRODUCE THIS DOCUMENT CAME RESERVES THE RIGHT TO MAKE ANY CHANGES TO THIS DOCUMENT AT ANY TIME THE DATA AND INFORMATION SHOWN IN THIS CATALOGUE ARE SUBJECT TO CHANGE WITHOUT OBLIGATION TO GIVE PRIOR NOTICE BY CAME S.P.A, E&OE CAME S.p.A.
