Summary of Contents for Emerson CURVA SKY LED INDOOR CF145LBS00
Page 1

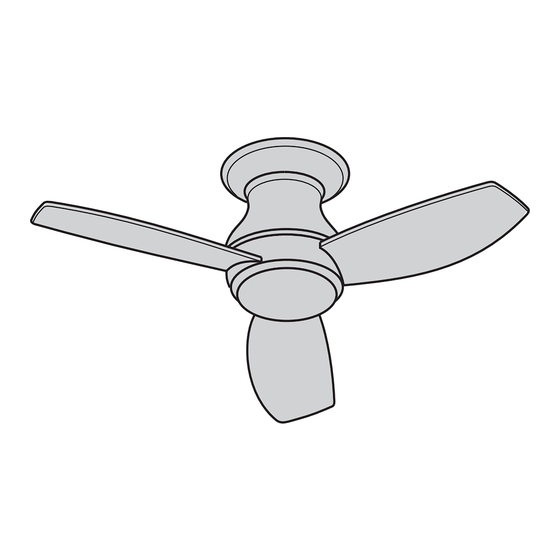

READ AND SAVE THESE INSTRUCTIONS CURVA SKY LED INDOOR 44” & 52” Snugger Ceiling Fan Owner’s Manual 44” Model Number 52” Model Number CF145LBS00 CF153LBS00 Brushed Steel Brushed Steel 18.5 19.4 Net Weight: Lbs. Net Weight: Lbs. Questions, problems, missing parts: Before returning to the store, Call Customer Service 1-888-757-7697 U.L.
Table of Contents Section Section Safety Instructions Maintenance 10 . Repair Parts 1 . Unpacking Instructions 11 . Troubleshooting 2 . Electrical Requirements 3 . Ceiling Fan Assembly 12. Energy Efficient Use of Ceiling Fans 4 . How to Hang Your Ceiling Fan 5 .
1. Unpacking Instructions PACKAGE CONTENTS Part Description Quantity Fan Motor Assembly Ceiling Trim Ring Ceiling Mounting Plate Fan Blades Lower Housing LED Light Fixture Assembly Glass No-Light Cover 6-Speed Electronic Receiver Control with Parts Bag 6-Speed Handheld Transmitter with Wall Bracket PROTECTIVE PLASTIC BAG Remove the fan motor...
1. Unpacking Instructions (Continued) This Manual Is Designed to Make it as Easy as Possible for You to Assemble, Install, Operate and Maintain Your Ceiling Fan Tools Needed for Assembly One Phillips Head Screwdriver One Stepladder WARNING One Wire Stripper One Wire Cutter Before assembling your ceiling fan, refer to section Materials...
3. Ceiling Fan Assembly M5 x 16 mm FLANGE HEAD BLADE SCREWS (3 per blade) FAN BLADE SLIDE FAN BLADE INTO BLADE CENTER SLOT FAN MOTOR ASSEMBLY WARNING BLADE SLOT To reduce the risk of personal injury, do not bend Figure 1 the blades during installation, balancing the blades or cleaning the fan.
Page 6
3. Ceiling Fan Assembly (Continued) Remove one of the three M4 x 10 mm Pan Head LED LIGHT FIXTURE Screws in the Lower Housing and loosen the remaining ASSEMBLY two screws . Retain the M4 x 10 mm Pan Head Screw for future use . Tuck wires into the LED Light Fixture Assembly and CUT OUT position in the Lower Housing Assembly .
Page 7
CAUTION CEILING To reduce the risk of injury, install the fan so that the blades are at least 7 ft. (2.1m) above the floor (Figure 6). WARNING Turning off wall switch is not sufficient. To avoid LEAST possible electrical shock, be sure electricity is turned off at the main fuse box before wiring.
Page 8
Slide the Ceiling Trim Ring over the Fan Motor Assembly and let it rest on the Fan Motor Assembly FAN MOTOR ASSEMBLY (Figure 8) . CEILING TRIM RING Figure 8 Place the Fan Motor Assembly onto the Ceiling Mounting Plate Hook during wiring Fan Motor Assembly to Outlet Box (Figure 9) .
5. How to Wire Your Ceiling Fan If you feel that you do not have enough electrical WARNING wiring knowledge or experience, have your fan installed by a licensed electrician. Turning off wall switch is not sufficient. To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before wiring.
Page 10
5. How to Wire Your Ceiling Fan (Continued) MOUNTING Securely connect the Supply White Wire (neutral) to PLATE the Receiver White Wire (AC IN N)/(TO MOTOR N) SUPPLY and White Fan Wire (neutral) using a Wire Connector WHITE WIRE (Figure 12) . WIRE CONNECTOR RECEIVER...
Page 11
Figure 15 RECEIVER GREEN GROUND WIRE WHITE BLACK RECEIVER SUPPLY WIRE WIRE BLACK RECEIVER WHITE WIRE SUPPLY WIRE BLACK/WHITE RECEIVER WIRE BLUE RECEIVER WIRE BLUE FAN WIRE WHITE FAN WIRE GREEN MOUNTING BLACK FAN WIRE PLATE WIRE GREEN FAN WIRE Figure 16 BP7538-1 Curva Sky Indoor (EnSpFr) 20210127.indb 11 BP7538-1 Curva Sky Indoor (EnSpFr) 20210127.indb 11...
Page 12
Remove and retain one of the four M5 x 10 mm Pan Head Ceiling Cover Screws and Split Washers in the Ceiling Mounting Plate . Loosen the remaining three M5 x 10 mm Pan Head Ceiling Cover Screws and Split Washers (Figure 17) . Unhook the Fan Motor Assembly from the Ceiling Mounting Plate Hook and lift the Fan Motor Assembly up to the Ceiling Mounting Plate .
Page 13
Place the Glass into the opening in the Lower Housing, aligning the three Flat Areas on the top edge of the Glass with the three raised Dimples on the Lower Housing and turn the Glass clockwise until it stops (Figure 19) . NOTE: Periodically check that the Glass is seated fully clockwise in the Lower Housing.
7. Optional Installation of No-Light Cover NOTE: To use the No-Light Cover, the LED Light Fixture Assembly MUST NOT Be Installed, or the LED Light Fixture Assembly MUST Be Removed. WARNING Turning off wall switch is not sufficient. To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before wiring.
Page 15
7. Optional Installation of No-Light Cover (Continued) Disconnect the LED Light Fixture Assembly wire terminals from the Fan Motor Assembly wire terminals . (Figure 22) . Store the LED Light Fixture Assembly in a safe location for future installation . Tuck the Fan Motor Assembly wires and connectors into the Lower Housing prior to assembling the No-Light FAN MOTOR...
8. Remote Control Procedures 8.1: Preset Memory Feature WARNING Your Receiver is equipped with a preset memory feature . If the AC supply to the Receiver is powered Fan installation must be completed, including the installation of the fan blades, before testing the remote through a Wall Switch, when the Switch is turned OFF, control.
Page 17
Your Remote Control has full control of your Ceiling Fan and Light . POWER INDICATOR When power is restored, push and hold the FAN LIGHT POWER OFF Button ( ) for 3 to 5 Seconds to set the Code in the Receiver (Figure 26) . FAN POWER OFF BUTTON NOTE: The Ceiling Fan Lights (if installed) will Blink...
Page 18
8.8: Storage Bracket Installation A Storage Bracket is provided for holding your Remote Control when not in use . If you desire to use the Bracket, install it on a wall that is away from excess heat or humidity . COVER Slide the Wall Bracket Cover up to expose the Screw Holes for installation (Figure 30) .
9. Maintenance IMPORTANT CARE INSTRUCTIONS WARNING for your Ceiling Fan Do not use water when cleaning your ceiling fan. Periodic cleaning of your new ceiling fan is the only It could damage the motor or the blades and create the maintenance that is needed .
11. Troubleshooting WARNING FOR YOUR OWN SAFETY TURN OFF POWER AT FUSE BOX OR CIRCUIT BREAKER BEFORE TROUBLESHOOTING YOUR FAN. TROUBLE PROBABLE CAUSE SUGGESTED REMEDY 1. Fan will not start. 1 . Fuse or circuit breaker blown . 1 . Check main and branch circuit fuses or circuit breakers . WARNING Make sure main power is turned OFF.
Page 22
SERIAL NUMBER: DATE CODE: The serial number of this fan can be found on the nameplate on top of the fan housing . The date code can be found on the carton and on top of the fan housing, stamped in ink on a white label . You should record this data above and keep it in a safe place for future use .
