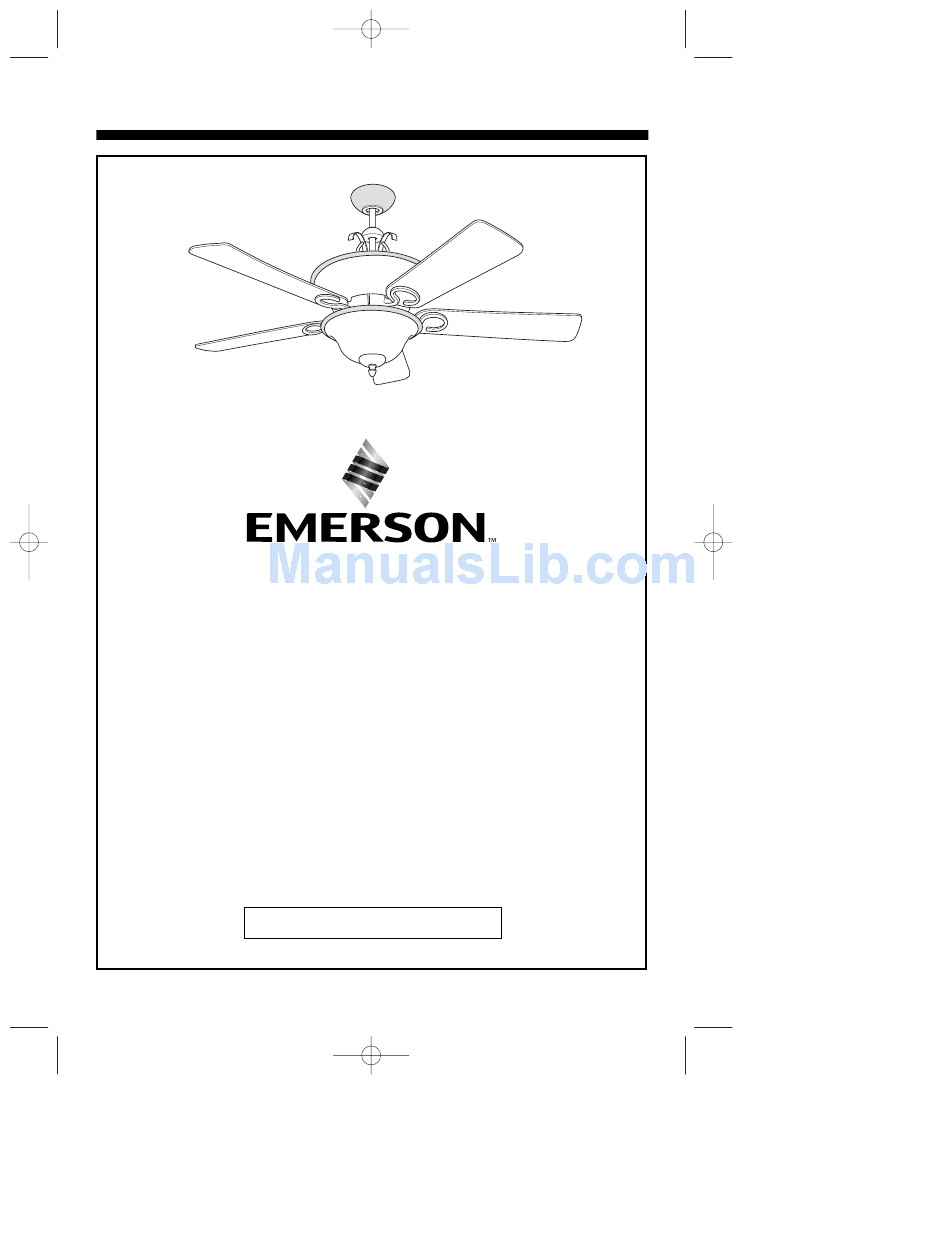

READ AND SAVE THESE INSTRUCTIONS

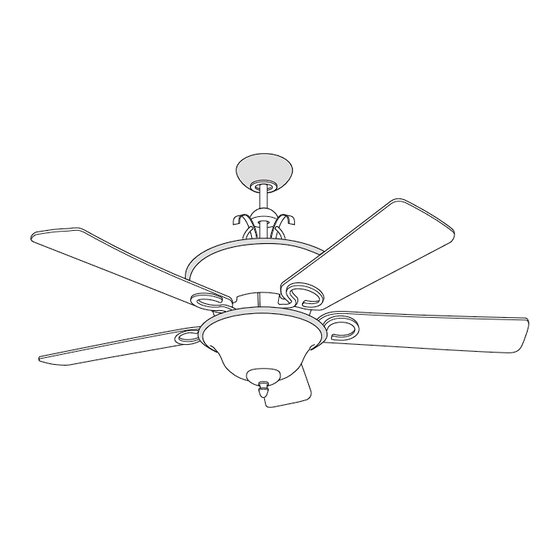

RUSTICO
™

Ceiling Fan

Owner's Manual
Model Number
CF160RTI00
Rustic Iron with
Washed Oak/Honey Maple Blades
30.6
Net Weight:
Lbs.
Part No. F40BP73580001
Form No. BP7358-1
U.L. Model No.: CF160

Advertisement

Table of Contents
loading

Related Manuals for Emerson RUSTICO CF160RTI00

Summary of Contents for Emerson RUSTICO CF160RTI00

  • Page 1: Ceiling Fan

    BP7358 RUSTICO CF160 9/19/07 11:23 AM Page 1 READ AND SAVE THESE INSTRUCTIONS RUSTICO ™ Ceiling Fan Owner's Manual Model Number CF160RTI00 Rustic Iron with Washed Oak/Honey Maple Blades 30.6 Net Weight: Lbs. Part No. F40BP73580001 Form No. BP7358-1 U.L. Model No.: CF160...

  • Page 2: Safety Instructions

    Emerson Electric Co. Substitution of parts or accessories not designated for use with this product by Emerson Electric Co. could result in personal injury or property damage. WARNING: To reduce the risk of personal injury, do not bend the blade flange when installing the blade flanges, balancing the blades or cleaning the fan.

  • Page 3: Unpacking Instructions

    If any parts are use with this product by Emerson Electric missing, contact your local retailer or Co. could result in personal injury or catalog outlet for replacement before property damage.

  • Page 4: Remote Control Procedures

    11:23 AM Page 4 General Preset Memory Feature Your Emerson ceiling fan comes equipped Your remote control receiver is equipped with a remote control transmitter and a with a preset memory feature. The receiv- remote control receiver. This remote con-...

  • Page 5: How To Assemble Your Ceiling Fan

    BP7358 RUSTICO CF160 9/19/07 11:23 AM Page 5 2. Slide the four switch levers on the code WARNING switch to your choice of ON (up) or down positions. Use a ball-point pen or Turning off wall switch is not suffi- cient.
  • Page 6 BP7358 RUSTICO CF160 9/19/07 11:23 AM Page 6 7. Carefully remove the fan motor housing WARNING assembly from the lower foam pad. To reduce the risk of personal injury, Turn the housing assembly over and do not bend the blade flange when position it on the lower foam pad with installing the blade flanges, balanc- the fan blades resting on the pad so...
  • Page 7 BP7358 RUSTICO CF160 9/19/07 11:23 AM Page 7 tight against the pin and securely tight- WARNING en the setscrew in the hanger ball. A loose setscrew could create fan It is critical that the clevis pin in the wobble. motor coupling is properly installed and the setscrews securely tight- ened.

  • Page 8: Your Ceiling Fan How To Hang

    BP7358 RUSTICO CF160 9/19/07 11:23 AM Page 8 13. The fan comes with blue, orange, black 1. Securely attach the hanger bracket to and white leads that are 80” long. Before the outlet box using the two screws installing the fan, measure up approxi- supplied with the outlet box (Figure 10).

  • Page 9: How To Wire Your Ceiling Fan

    BP7358 RUSTICO CF160 9/19/07 11:23 AM Page 9 How to Wire 2. Refer to Figure 12 and 13 and connect the receiver wires to the supply wires Your Ceiling Fan and the fan motor wires as follows: If you feel that you do not have enough a.
  • Page 10 BP7358 RUSTICO CF160 9/19/07 11:23 AM Page 10 STANDARD ON-OFF WALL SWITCH OR OPTIONAL SW115 BLACK WALL CONTROL BLACK BLACK (HOT) 120- VOLT WHITE SUPPLY WHITE WHITE GROUND BLACK TWO-CONDUCTOR CABLE (WITH ORANGE WHITE BLUE GROUND) BLACK BLUE GREEN WIRE (GROUND) WHITE FROM HANGER BALL AND ORANGE...
  • Page 11 BP7358 RUSTICO CF160 9/19/07 11:23 AM Page 11 8. Connect the white wire from the light 10. Screw in three 60-watt (maximum) fitter to the white wire from the motor candelabra base bulbs into the light (Figure 16). Connect the black wire fitter sockets (Figure 18).

  • Page 12: Operating Your Ceiling Fan

    BP7358 RUSTICO CF160 9/19/07 11:23 AM Page 12 Operating Your Installation of Ceiling Fan Storage Bracket IMPORTANT A storage bracket is supplied with the remote control for holding the transmitter Fan installation must be completed, when not in use. If you desire to use the including the installation of the fan bracket, use the two screws (supplied) blades, before testing of the remote...

  • Page 13: Maintenance

    Emerson Electric Co. Substitution of parts or accessories not designated for use with this product by Emerson Electric Co.

  • Page 14: Troubleshooting

    BP7358 RUSTICO CF160 9/19/07 11:23 AM Page 14 WARNING: FOR YOUR OWN SAFETY TURN OFF POWER AT FUSE BOX OR CIRCUIT BREAKER BEFORE TROUBLE SHOOTING YOUR FAN. Trouble Shooting TROUBLE PROBABLE CAUSE SUGGESTED REMEDY 1. Fan will not 1. Fuse or circuit breaker 1.

  • Page 15: How To Order Repair Parts

    BP7358 RUSTICO CF160 9/19/07 11:23 AM Page 15 Repair Parts Listing Part Number Model No. Description CF160RTI00 Hanger Pack, Consisting of: 761655-37 Hanger Bracket — Hanger Ball — Downrod — Parts Bag, Containing: 762658 Wire Connector (7) — Threaded Stud, 8-32 X 1-1/4” (2) —...

  • Page 16: Limited Warranty

    You will be responsible for all insurance, freight or other transportation charges to our factory or authorized service center. Your Emerson Air Comfort Ceiling Fan should be properly packed to avoid damage in transit since we will not be responsible for any such damage.
