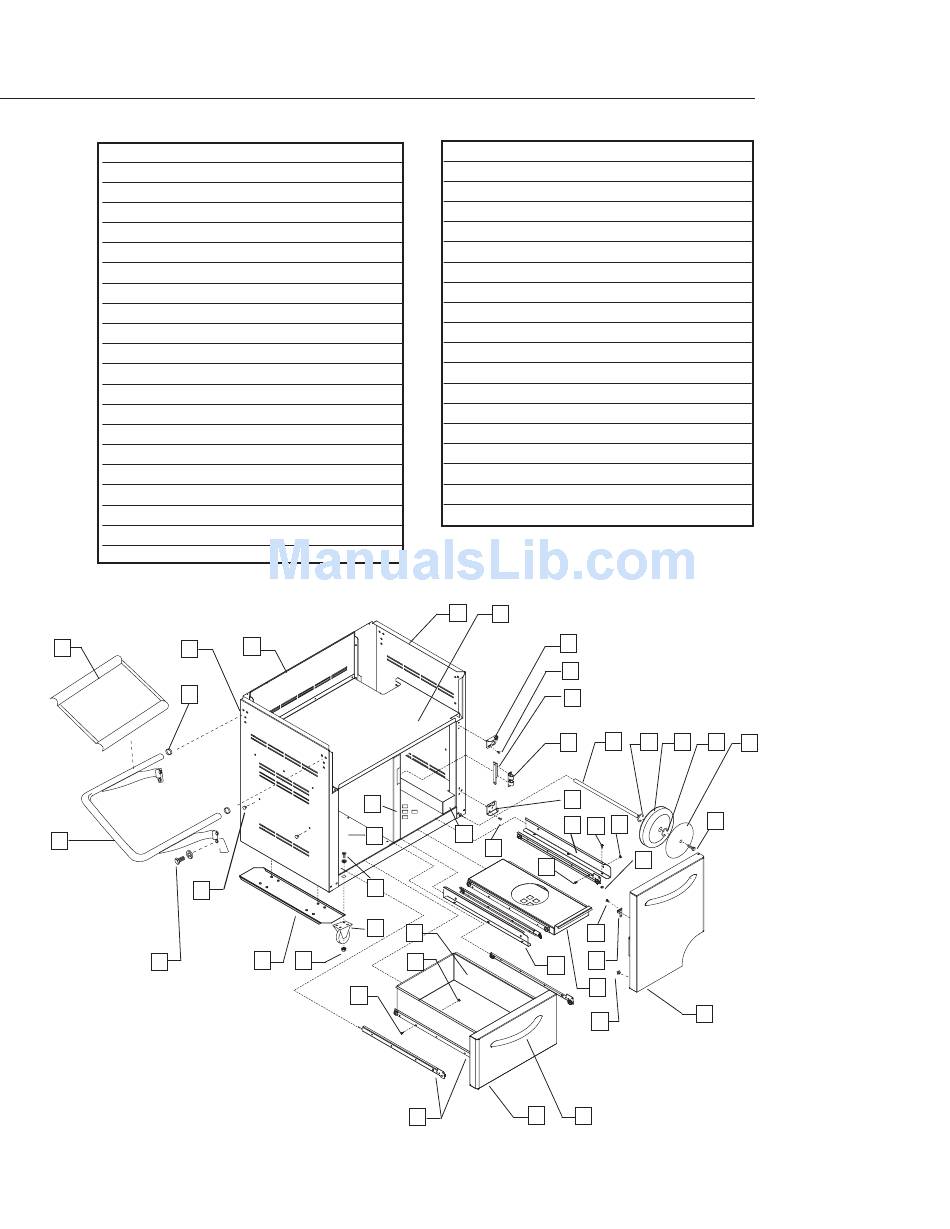

Grill Cart Parts List - DCS BGB36-BQAR Use And Care Manual

ITEM DESCRIPTION
1 Side Shelf Tray
2 Side Shelf End Cap
3 Side Shelf Assembly
4 Bolt
5 Left Body Panel
6 Rear Body Panel
7 Right Side Body Panel
8 Door Header
9 Center Divider
10 Slide Bracket 2
11 Frame Cart W/A
12 Hex Bolt
13 5" Caster w/o Brake
5" Caster w/Brake
14 Nut
15 Caster Stiffener
16 Mount Slides
17 Front Drawer Weld Assembly
18 Screw
19 Nut Hex
1
5
2
3
22
4

48 GRILL CART PARTS LIST

PART NO.
41067
14205
18212
15003-06
32799
32784
32800
32798
32780
41061
33025-02
15150
18022
18022-1
15021-09
41126
14203
33032-02
15002-50
15021-04
6
9
11
12
13
20
14
15 19
18
16
ITEM DESCRIPTION
20 Drawer Box
21 Pull Handle
22 Rubber Bump
23 Tank Tray Pullout Assembly
24 Door Catch
25 Screw
26 Slide Mounting Frame R/H,L/H
27 Right Door Assembly
28 Screw
29 Screw
30 Hub Cap
31 Retaining Ring E-Style
32 8"Solid Rubber Wheel
33 Axle
34 Bottom Hinge R/H Assembly
35 Screw
36 Door Catcher Bracket
37 Top Hinge R/H Assembly
NOTE: Carts sold separately.
7
8
37
35
36
33
24
34
26 19
28
10
35
18
25
24
26
23
22
17
21
34
PART NO.
33029-02
18462
18403
33024
14204
15002-41
32790-01/02
33026-02
15002-29
15002-61
41075-01-SP
15121-01
18264
33282
41184-01
15002-26
33017
41215
32 31
31 30
29
19
27
