Vector TLC3-FCM-R2-U Engineering Manual

Vector TLC3-FCM-R2-U Engineering Manual

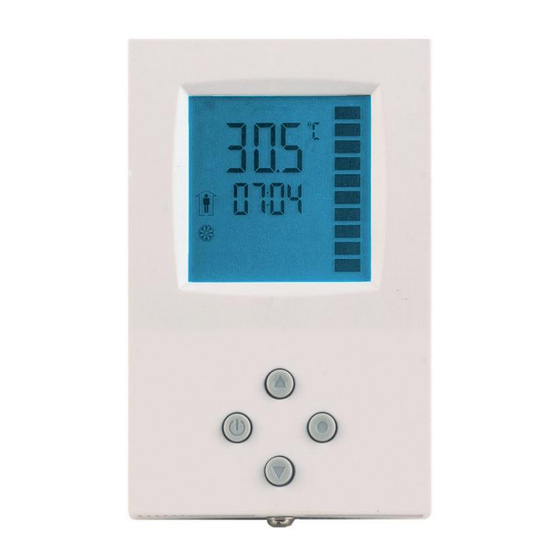

Programmable pi fan coil controller

Advertisement

Quick Links

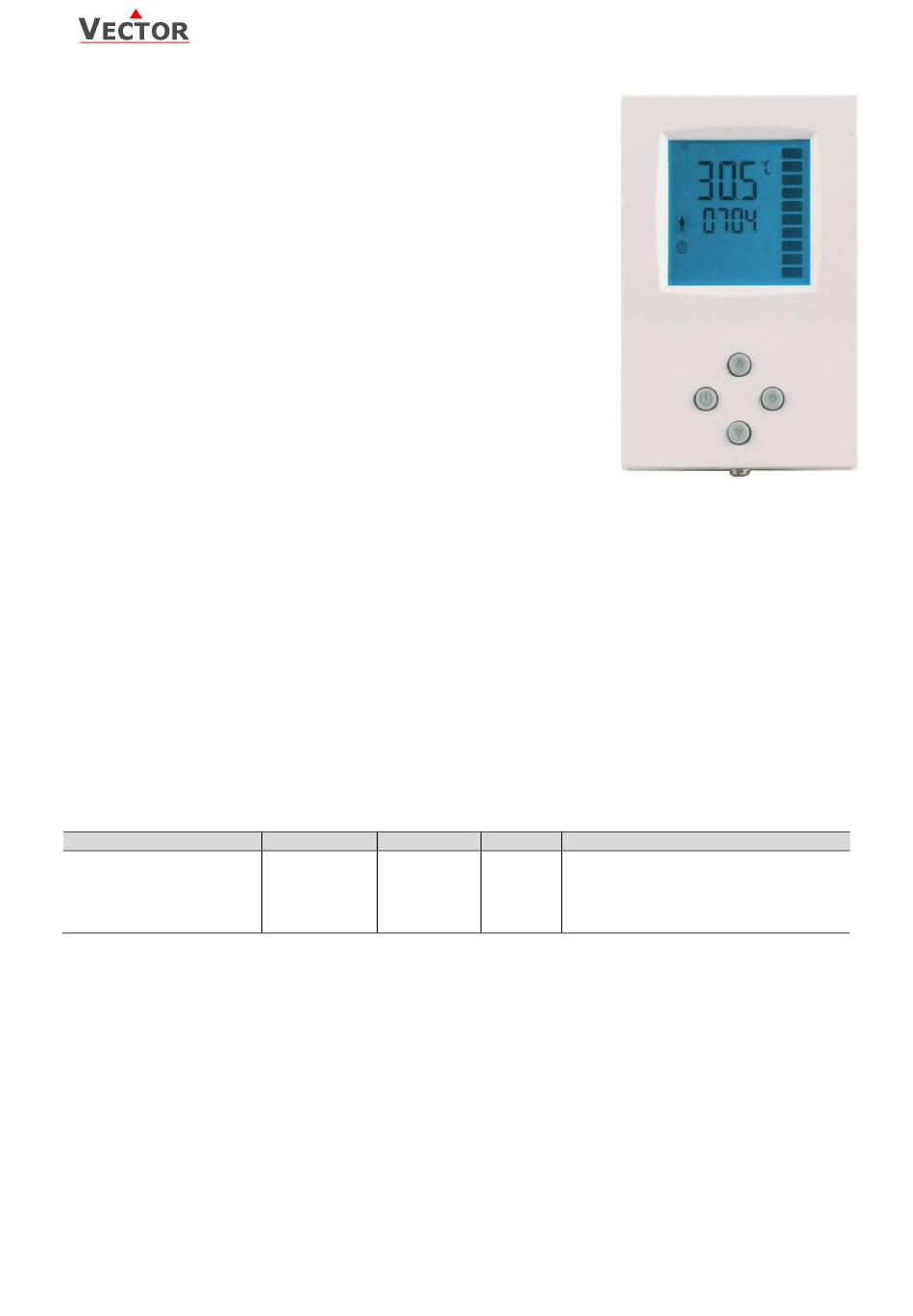

TLC3-FCM-R2 -U
Programmable PI Fan Coil controller
Features
Proven PI controls algorithm reduces room temperature fluctuations
and energy consumption
Low power energy consumption: < 0.5 W per unit
Temperature control for 2- and 4-pipe fan coil systems.
Automatic fan control for EC fans.
Cost saving option with Economy functionality and set point limitations
Control for modulating heating, cooling and fan only operation modes
Password protected programmable user and control parameters
Setpoint range limitation
o
Access control for setpoints, fan speeds and mode change
o
Access control for heat/cool change and time programs
o
Select your display contents
o
Selectable behavior after return from power failure
o
Temperature display in Celsius or Fahrenheit
Deluxe Version:
Clock and time schedule functions with power failure protection
Blue backlight for LCD
Infrared remote controller option:
With special features for Boost and delayed switching on or off
Applications
Air Only Systems:
Constant or Variable Air Volume systems with three stage fans for single or dual duct systems
o
Air/Water Systems:
Fan Coil units for 2-pipe or 4-pipe systems
o
radiator control, chilled ceiling
o
Simple individual room control for hotel rooms, meeting rooms, etc.
PI-Control of up to 2 modulating valves for heating and cooling
General Description
The TLC3-FCM-R2-T is a stand-alone electronic fan coil controller with one control loop. The TLC3-FCM-R2-T is
designed for EC fan coil systems and features 1 internal NTC temperature sensor, one external passive input for
temperature or open contact, two binary outputs (Relays) and one analog output (0-10VDC) for fan control.
The TLC3-FCM2-R2 is a stand-alone electronic fan coil controller with one control loop. The TLC3-FCM2-R2 is
designed for EC fan coil systems and features 1 internal NTC temperature sensor, two binary outputs and two analog
outputs (0-10VDC) one for fan control and one for a heating or cooling valve.
A detailed parameterization is possible with the use of a simple configuration routine. The TLC3-FCM-R2 can be
configured using the standard operation terminal. No special tools or software is required.
Ordering
Item Name
TLC3-FCM-R2-T-U-230
Selection of sensors
Use only our approved NTC sensors to achieve maximum accuracy. Recommended is SDBTn10-15 as Duct sensor,
SRA-Tn10 as Room sensor and SDB-Tn10-15+AMI-10 as immersion sensor.
Selection of fans
Do not directly connect devices that exceed 2A. Observe startup current on inductive loads! Do not connect more than
one fan coil unit to one controller.
Modulating Actuators:
Choose actuators with an input signal type of 0-10V DC or 2-10V DC. Observe maximal signal current of 1mA!
Doc: 70-00-0976, V1.0, 20220708
Subject to alteration
Item code
Variant
40-100277
Standard
© Vector Controls GmbH, Switzerland
TLC3-FCM-R2 -U Engineering Manual
Power
Features
Fan coil controller (US Edition) with:
1 TI int
230VAC
1 external input (NTC)
2 DO (Relay)
1 AO (0-10VDC)
Page 1-12

Advertisement

loading
Need help?

Need help?

Do you have a question about the TLC3-FCM-R2-U and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Vector TLC3-FCM-R2-U

  • Page 1 Modulating Actuators: Choose actuators with an input signal type of 0-10V DC or 2-10V DC. Observe maximal signal current of 1mA! Doc: 70-00-0976, V1.0, 20220708 © Vector Controls GmbH, Switzerland Page 1-12 Subject to alteration...
  • Page 2: Technical Specification

    60 x 50 x 32 mm (2.4 x 2.0 x 1.3 in) Distance for mounting screws: Horizontal 57 to 61 mm (2.25 to 2.63 in) Vertical 70 to 92 mm (2.75 to 3.62 in) Doc: 70-00-0976, V1.0, 20220708 © Vector Controls GmbH, Switzerland Page 2-12 Subject to alteration...
  • Page 3 This screw is located on the front lower side of the unit. There is no need to tighten the screw too much. Wiring Diagram TLC3-FCM2-R2-U-230 Doc: 70-00-0976, V1.0, 20220708 © Vector Controls GmbH, Switzerland Page 3-12 Subject to alteration...
  • Page 4 Heating or cooling based on FC27 Analog output 0…10 VDC TLC3-FCM-R2-T-U: Signal common: RT/DI Input NTC 10kΩ @ 25°C (77°F) or open contact to GND Analog output 0…10 VDC Doc: 70-00-0976, V1.0, 20220708 © Vector Controls GmbH, Switzerland Page 4-12 Subject to alteration...
  • Page 5: Display And Operation

    The output is switched off. Verify parameter settings and wiring. Steady: Frost protection is active. Blinking: Frost protection activated in the past and is now inactive. Confirm with OPTION key. Doc: 70-00-0976, V1.0, 20220708 © Vector Controls GmbH, Switzerland Page 5-12 Subject to alteration...
  • Page 6 A blinking clock indicates that the time needs to be set. Time programs will not operate if the time is not defined. ➔ See chapter operation, advanced settings for instructions on how to set the time. Access to time schedules may be disabled with UP-04 ➔ Doc: 70-00-0976, V1.0, 20220708 © Vector Controls GmbH, Switzerland Page 6-12 Subject to alteration...
  • Page 7 Repeatedly pressing the mode button may activate the following operation modes: HEAT, COOL and FAN ONLY. The mode change may be disabled using the UP parameters. Note: The remote controller is currently only available in °C mode. Doc: 70-00-0976, V1.0, 20220708 © Vector Controls GmbH, Switzerland Page 7-12 Subject to alteration...
  • Page 8 The unit will switch automatically back to the scheduled mode when the reset time expires. = Reset of override mode is not active. 1…255 = delay in minutes to switch off device Doc: 70-00-0976, V1.0, 20220708 © Vector Controls GmbH, Switzerland Page 8-12 Subject to alteration...
  • Page 9: Control Configuration

    Depending on the room size and heating / cooling equipment used a value between 0.1 and 1.5 should be sufficient. Below are suggested values: Heating: K : 0.1-0.4 Cooling: K : 0.1-0.6 Doc: 70-00-0976, V1.0, 20220708 © Vector Controls GmbH, Switzerland Page 9-12 Subject to alteration...
  • Page 10 Dry contact: Heating if contact closed FC30 > FC31 25°C (77F) 15°C (59F) Dry contact: Cooling if contact closed FC30 < FC31 15°C (59F) 25°C (77F) Doc: 70-00-0976, V1.0, 20220708 © Vector Controls GmbH, Switzerland Page 10-12 Subject to alteration...
  • Page 11 TLC3-FCM-R2 -U Engineering Manual Empty page. Doc: 70-00-0976, V1.0, 20220708 © Vector Controls GmbH, Switzerland Page 11-12 Subject to alteration...
  • Page 12 TLC3-FCM-R2 -U Engineering Manual Smart Sensors and Controls Made Easy! Quality - Innovation – Partnership Vector Controls GmbH Switzerland info@vectorcontrols.com www.vectorcontrols.com/ Doc: 70-00-0976, V1.0, 20220708 © Vector Controls GmbH, Switzerland Page 12-12 Subject to alteration...
