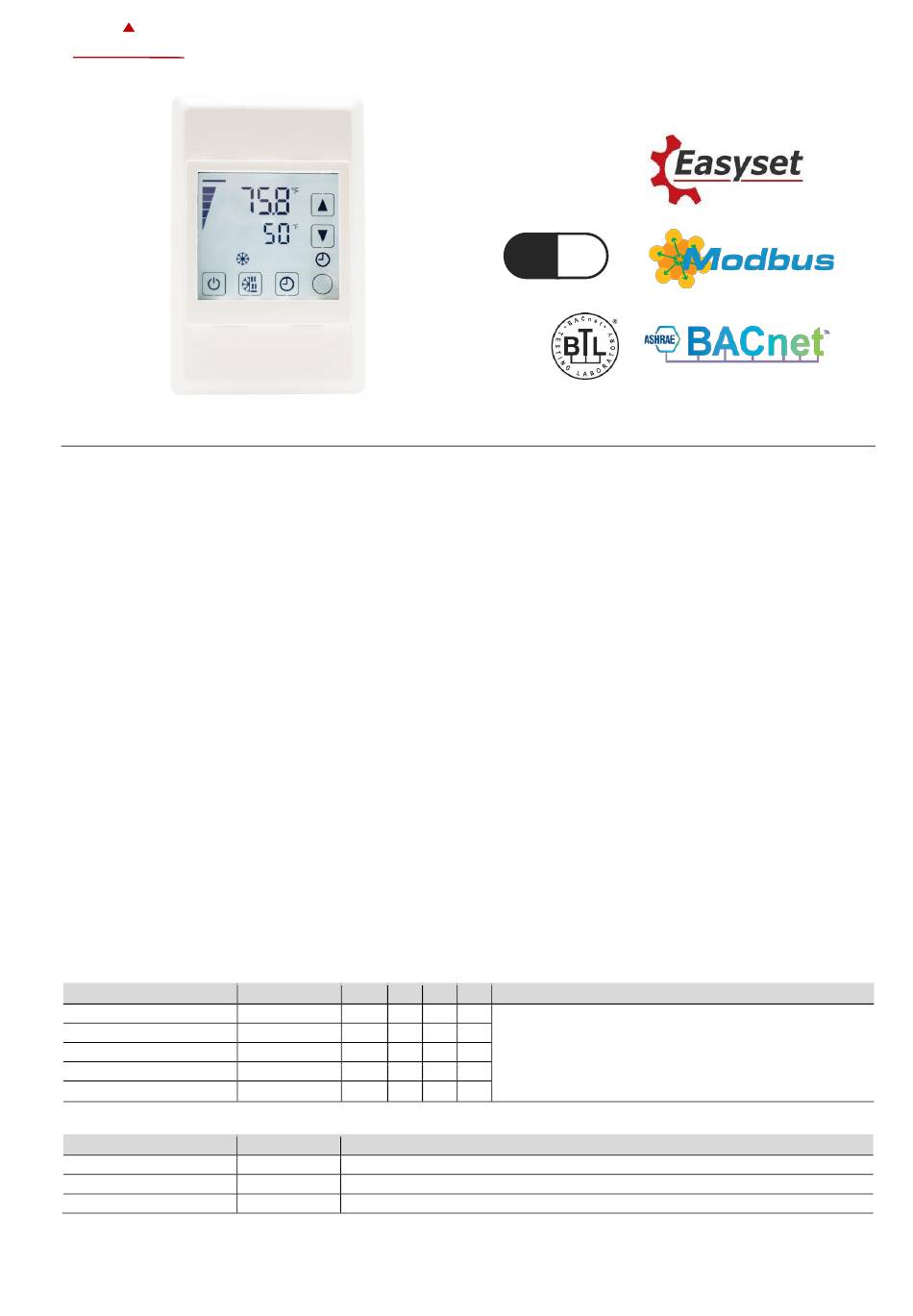

Vector TRI2 Product Data Sheet

V
ECTOR
The TRI2 is a programmable controller and sensor with communication capabilities. Each control loop may use 2 PI
sequences and 2 binary stages. The TRI2 uses the universal X2 operating system. Serial communication options are
realized with Modbus RTU/ASCII and BACnet MS/TP over RS485. There is also a Wi-Fi communication option available
which supports Modbus TCP and BACnet IP. An embedded webserver provides a web interface to operate the controller or
change the connection settings. Complete parameter sets may be copied by use of an accessory called AEC-PM2 or
exchanged with a PC using an RS485-USB converter or Wi-Fi communication, the EasySet program and the configuration
adapter called AEC-TRI-2.
Applications
• Ventilation control
• Temperature control
• Zone control
• Air humidifier and dehumidifier
Functions
• Two universally configurable control loops:
Functions for dehumidifying, set point shift and cascade control
o
Multiple auxiliary functions: heat-cool auto changeover, automatic enable, set point compensation
o
Free heating and cooling with economizer function based on enthalpy or temperature
o
Differential, averaging, min and max functions, enthalpy and dew point calculations
o
Transmitter function for inputs and set points
o
• Built in humidity and temperature sensors
• 2 passive inputs (NTC, open contact), 1 analog input (VDC) and 2 analog outputs (VDC)
• 2 relays with each a normally open contact (SPST NO) to switch line voltage
• 8 freely assigned alarm conditions, selectable state of outputs on alarm condition
• Power Cap protected real-time clock with 48hr power backup
• 7-day programmable schedules, with options including change of set points and direct position of manual outputs
• Password protected programmable user and control parameters
• Measures temperature and humidity
• Communication over Modbus, BACnet or Wi-Fi (optional interface required)
• Webserver that supports TRI2 operation trough browser or mobile devices (Wi-Fi interface required)
Types and Ordering
Product Name
TRI2-FU-TH-221.202C
TRI2-FU-TH-221.202C-MOD
TRI2-FU-TH-221.202C-BAC
TRI2-FU-TH-221.202C-WIM
TRI2-FU-TH-221.202C-WIB
Accessories
Product Name
AEC-PM2
AEC-TRI-2
AEC-USB-01
Doc: 70-00-0750C, 20230220
Subjects to alteration
Wall-mounted Controller and Sensor TRI2-FU
Product No. Loop UI
40-100226 2 3
40-100227 2 3
40-100228 2 3
40-100236 2 3
40-100255 2 3
Product No. Description
40-500130 Plug-In memory module for fast copying of parameter sets
40-500154 Configuration adapter with cable
40-500046 USB to RS-485 converter cable kit for EasySet tool (only for device without Wi-Fi)
© Vector Controls GmbH, Switzerland
www.vectorcontrols.com
Wi Fi
DO AO Functions
2 2
TH = Temperature- and humidity sensor
2 2
MOD = Communication with Modbus RTU or ASCII
2 2
BAC = Communication with BACnet MS/TP
2 2 WIM = Communication with Modbus TCP over Wi-Fi
WIB = Communication with BACnet IP over Wi-Fi
2 2
TRI2-FU
P D S
RODUCT ATA HEET
Page 1-10
