LOG PLACEMENT GUIDE FOR ELDV3530/ELDV4035/ELDV4540
Log PLacement guide for eLdV3530/eLdV4035/eLdV4540
ELITE SERIES GAS APPLIANCES
[FOR USE IN ELDV3530/ELDV4035/ELDV4540, AND ELITE SERIES FIREPLACES]
generaL information
This log placement guide has been prepared to present detailed place-
ment illustrations and provide instruction to assist in the initial (new
appliance) setup and after the annual cleaning and inspection cycles.
The information provided here is to be used in conjunction with the
Care and Operation Instructions provided together with this document
in the appliance literature packet. Please read the Care and Operation
Instructions completely before completing the procedures detailed in
this placement guide.
initiaL inStaLLation conSiderationS
If the logs are being installed for the first time, the following para-
graphs apply:
f i r e - p a r t s . c o m
DO NOT attempt to install the logs until the appliance installation
has been completed, the gas line connected and tested for leaks and
the initial burner operation has been checked out.
Step . Remove the appliance front door.
Step 2. Cut and remove the nylon strapping securing the log set
inside the fireplace.
Step 3. Remove the logs from their packaging. Handle logs care-
fully to prevent breakage.
Log and gLowing ember PLacement

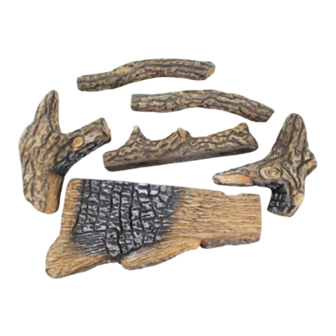

Step . Position the individual logs as shown in Figures 3, 4 and 5.
Logs should be placed in the order shown.
Step 2. Separate the Glowing Ember (Rockwool) into pieces about
the size of a nickel (see Figure 1). Keep the pieces fluffed up with
torn edges and not matted. Distribute these pieces over the burner as
shown in Figure 2. Do not use more than necessary. When properly
positioned, the Glowing Embers will cover approximately 10% of the
burner. Do not place embers on main ports.
Step 3. Place a mixture of volcanic stone and vermiculite around the
burner as shown. do not place the mixture on the burner.
Note: Excessive use of embers may result in sooting or poor flame.
This appliance is provided with enough Glowing Embers for several
applications, do not feel compelled to use all that is in a new bag. For
best glowing effect, replace the ember material annually. Replacement
Glowing Embers are available (Catalog Number 88L53).
750,20m
reV. a 05/2008
P750201M
P/N 750201M Rev. B 05/2015
eLite SerieS gaS aPPLianceS

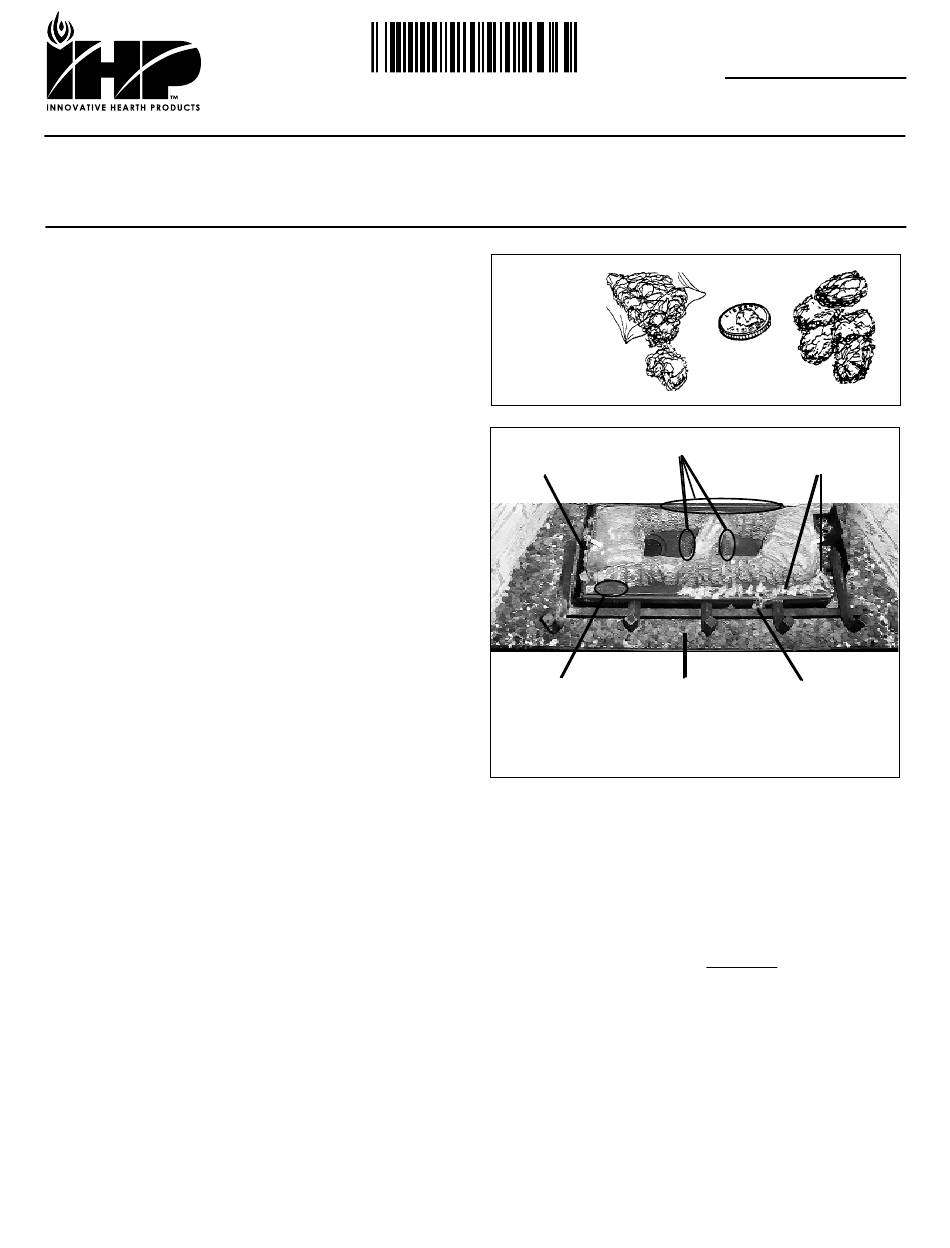

Figure 1
glowing embers
(rockwool)
Figure 2
Proper log and twig placement is critical to encourage outstanding
flame appearance and prevent sooting.
These fires are designed to provide a rich orange/red glow on the logs.
Rear log (2) placement is critical. An adjustment of one quarter of an
inch can have significant effect on flame color and height. Pull rear log
(2) forward as far as it will go on the pins.
Note: The log set and fire are artistically arranged to provide a random
asymmetric look to the fire. The fire intentionally does not burn in the
left rear quarter of the log set.
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE
ELDV3530/ELDV4035/ELDV4540
ELitE SEriES
main Ports
do not Place mixture of Vol-
embers on cano Stone
main Ports & Vermiculite
Log PLacement
guide
HEARTH PRODUCTS
KITS AND ACCESSORIES
LOG PLACEMENT GUIDE
glowing embers
(rockwool)
Place embers
in front of
Ports Here
