IMPORTANT! KEEP THIS MANUAL FOR FUTURE REFERENCE!

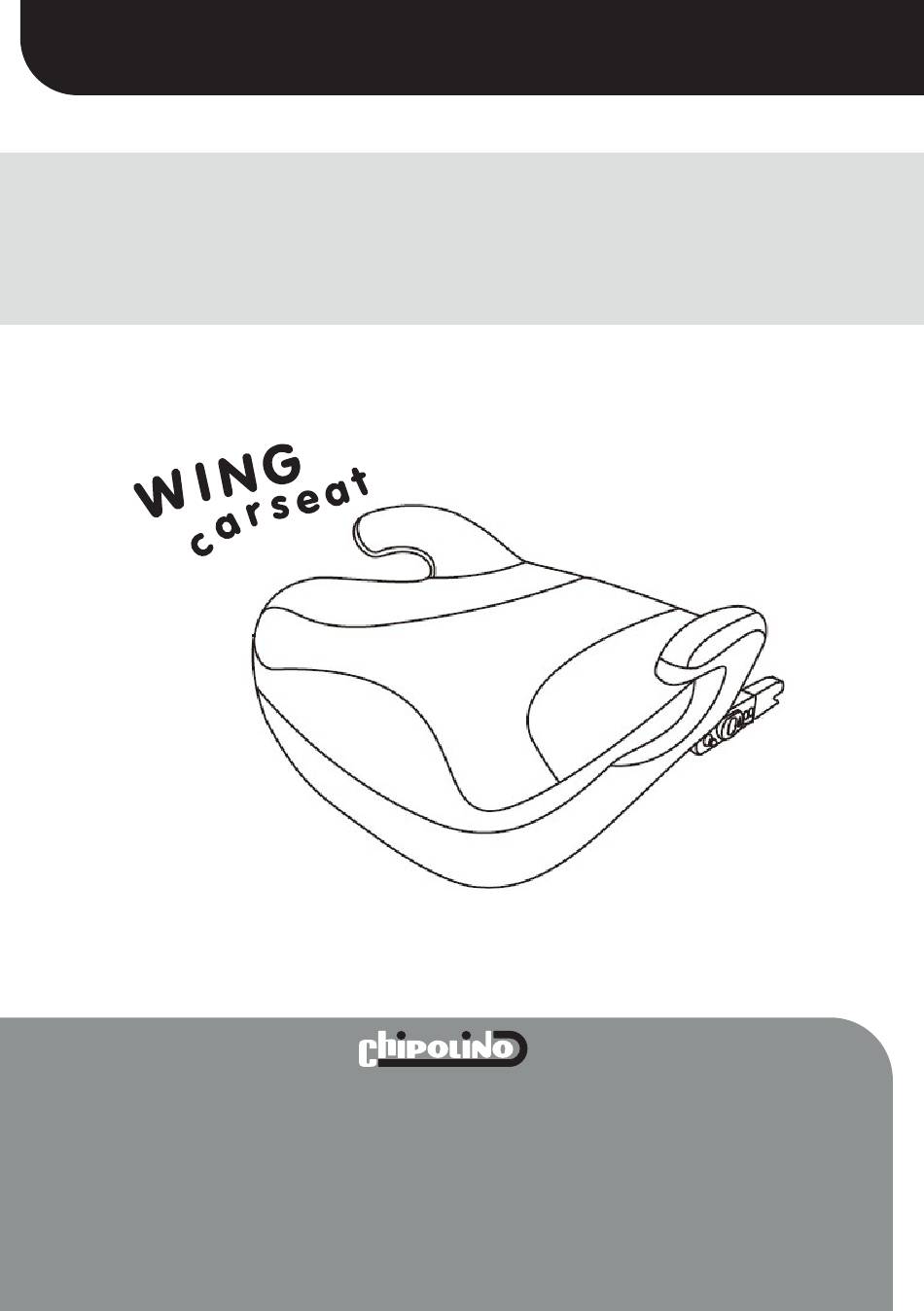

INSTRUCTION MANUAL FOR
USE OF CHILD RESTRAINT SYSTEM
„WING"
This child restraint system
is manufactured in compliance
with the requirements of Regulation No 129 of the Economic Commission
for Europe of the United Nations (UN/ECE) — Uniform provisions concerning
the approval of enhanced Child Restraint Systems used on board of motor
vehicles (ECRS), the provisions of the Product safety Directive 2001/95/
EU of the European Parliament and The Council as well as the Consumer
Protection Law of Bulgarian Legislation.
Advertisement
Related Manuals for Chipolino WING
Summary of Contents for Chipolino WING
- Page 1 IMPORTANT! KEEP THIS MANUAL FOR FUTURE REFERENCE! INSTRUCTION MANUAL FOR USE OF CHILD RESTRAINT SYSTEM „WING“ This child restraint system is manufactured in compliance with the requirements of Regulation No 129 of the Economic Commission for Europe of the United Nations (UN/ECE) — Uniform provisions concerning...
- Page 2 Child restraint system model „WING” is suitable for children with height 125-150cm. Universal „booster cushion“: 125-150 cm Position of Installation of Height of the child Category the car seat the car seat 3-point vehicle belt 125-150 cm “FORWARD” facing Universal booster cushion...
- Page 3 WARNING! INSTALL THE BOOSTER CUSHION ONLY IN „FORWARD FACING” POSITION! Diagonal belt of the vehicle seat Lap belt of the vehicle seat NEVER INSTALL THE BOOSTER CUSHION IN VEHICLE WITH 2-POINT BELT! INSTALL IT ONLY IN VEHICLE WITH 3-POINT SAFETY BELT (diagonal and lap belt)! IMPORTANT! This booster cushion is only suitable for installation in vehicles fitted with APPROVED 3-POINT SAFETY BELTS WITH RETRACTOR, meeting the requirements of Regulation no.
- Page 4 CAUTION! WARNINGS! WARNING! NEVER LEAVE YOUR CHILD UNATTENDED! WARNING! DO NOT USE ANCHOR POINTS OTHER THAN THE ONES DESCRIBED IN THIS MANUAL AND MARKED ON THE RESTRAINT SYSTEM! WARNING! INSTALL THE BOOSTER CUSHION ONLY IN „FORWARD FACING” POSITION! ...
-
Page 5: Main Parts
MAIN PARTS A – Seat base B – Base cover C – ISOFIX connector D – ISOFIX release button INSTRUCTIONS FOR USE OF THE CHILD RESTRAINT SYSTEM CAUTION! • Follow exactly the instructions and sequence of installation steps and use of the product described in the text and figures of this manual. - Page 6 “click” 1. Place the booster cushion on the vehicle seta “FORWARD” facing position. Make sure it fits snugly against the back of the vehicle seat! 2. Place the child in the booster cushion. 3. Pull out the 3-point belt of the vehicle. Pass the diagonal belt (a) on top of child’s shoulder, the lap belt (b) under the armrests.
- Page 7 INSTALLING THE BOOSTER CUSHION IN „FORWARD FACING“ POSITION with ISOFIX + 3-point vehicle belt Height of the child: 125-150 cm click “click”...
-
Page 8: Removal Of The Cover
1. Hold with your hand and rotate the ISOFIX connector at 180° outwards. Make the same steps for the other ISOFIX connector. Note: Make sure the ISOFIX indicators are in red color. 2. Insert the ISOFIX connectors (1) of the booster cushion in ISOFIX anchor points of the vehicle (2). Push the seat back until it get fixed with “click”... -
Page 9: Care And Maintenance
CARE AND MAINTENANCE Clean the plastic or metal parts with damp cotton cloth or sponge and mild soap. Upholstery and soft pads may be hand washed at 30 С using mild detergent! Do not bleach! Do not tumble dry! Do not machine wash! Do not iron! ... - Page 10 Bulgaria, Plovdiv, Golyamokonarsko shosse Str. № 1 www.chipolino.com...
