Summary of Contents for Matrix casallPRO
-
Page 2: Table Of Contents

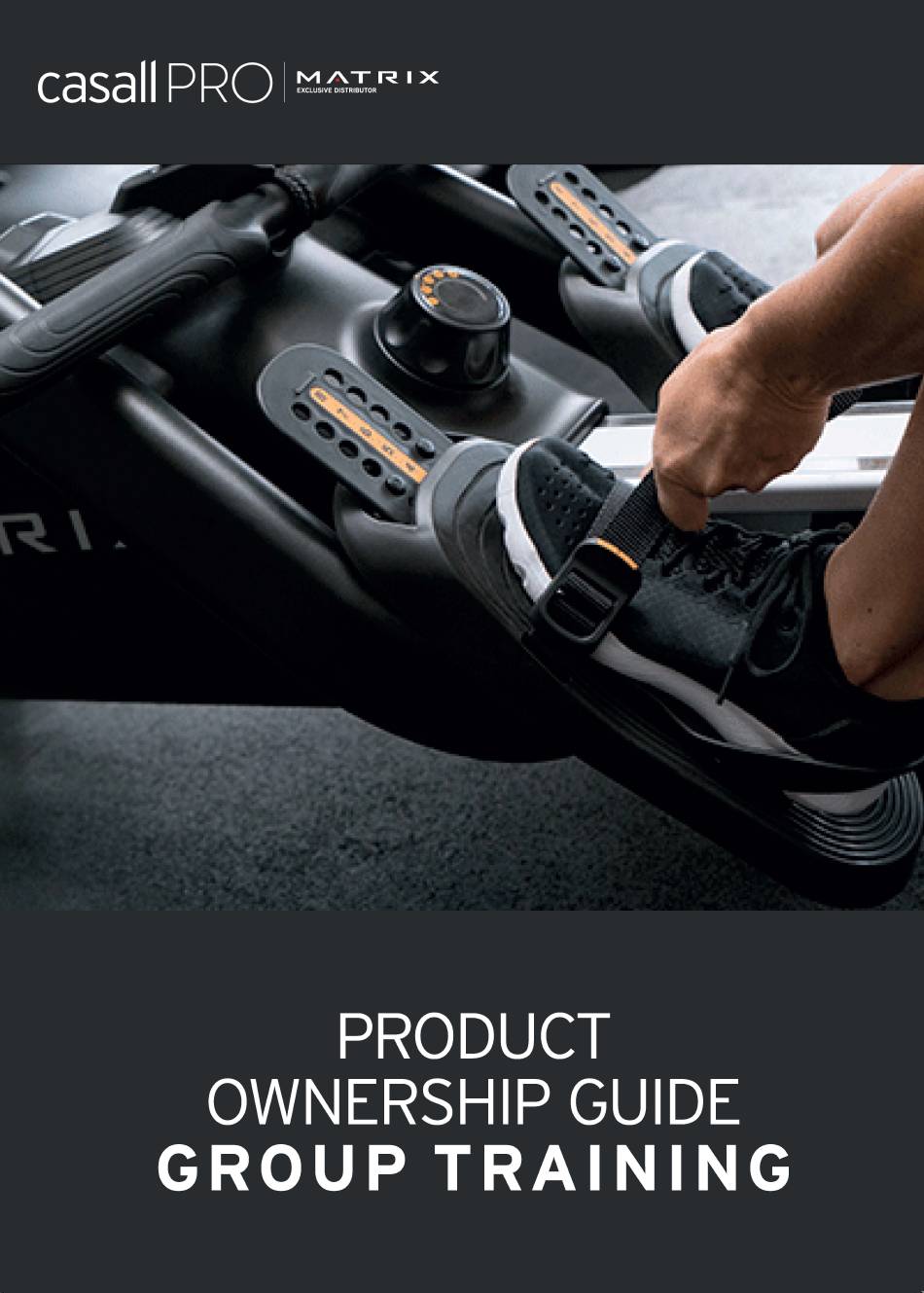

PRODUCT OWNERSHIP GUIDE Fitness equipment requires adjustments and maintenance that are part of owning or leasing equipment. These adjustments and maintenance are not part of your equipment’s warranty, nor are they defects in the equipment. The following will provide information on how to perform these adjustments and maintenance when needed. Group Training Equipment Leveling Equipment S-Drive Belt Adjustments... -
Page 3: Leveling Equipment
GROUP TRAINING EQUIPMENT LEVELING EQUIPMENT: ROWERS & TRAINING CYCLES ROWERS TOOLS NEEDED • Medium-size adjustable wrench INSTRUCTIONS Start with the leveling feet all the way up (turn clockwise). If the rower is not level, lift the rower from the stabilizer and adjust the leveling feet by hand as needed. Once the rower is level, tighten the jam nut on each foot to lock them in place (Fig. - Page 4 GROUP TRAINING EQUIPMENT LEVELING EQUIPMENT: S-DRIVE & S-FORCE PERFORMANCE TRAINERS S-DRIVE PERFORMANCE TRAINER TOOLS NEEDED • Medium-size adjustable wrench INSTRUCTIONS Make sure the S-Drive is not resting on the front wheels when in use. Once the S-Drive is in place, lower the leveling feet to rest on the floor and adjust one or the other down until level.
-
Page 5: S-Drive Belt Adjustments
GROUP TRAINING EQUIPMENT S-DRIVE BELT ADJUSTMENTS S-FORCE PERFORMANCE TRAINER The running belt should be under enough tension that it does not slip around the rollers while the resistance is set to max. The two 8 mm hex bolts in the end caps adjust the rear roller position. To move the roller out (closer to you), turn both clockwise. - Page 6 4. If the deck is too dry, you will not glide smoothly backward and a high-viscosity silicone needs to be applied. Matrix requires a higher viscosity silicone than what is used on home treadmills. Each TM529 S-Drive comes with a 100ml bottle. Bottles can also be ordered through Matrix by contacting Customer Technical Support.
-
Page 7: Cxp Battery Charging
The battery can be removed from the cycle and charged with a standard USB-micro cable. To charge multiple batteries at once, a device similar to this 5-port USB Charger can be used. You can also order a charger from Matrix (Part# ZMS4009235). - Page 8 GROUP TRAINING EQUIPMENT CXP BATTERY CHARGING CHARGING BATTERY FROM CXP (FC24) 1. Remove right service cover (Fig.1). 2. Remove the two screws holding the LCB housing to the frame and carefully pull forward to expose the battery (Fig. 2). 3. Disconnect the battery from the power board by sliding the battery out of the plastic housing (Fig.3).
- Page 9 GROUP TRAINING EQUIPMENT CXP BATTERY CHARGING CHARGING BATTERY FROM CXP-02 (FC28) & CXP-03 [FC29] 1. Remove right service cover (Fig.1). 2. Locate the charging wire attached to the LCB (Fig. 2). 3. Plug the power adapter in to the charging wire and the other end into a 15A outlet (Fig. 3). 4.
-
Page 10: Basic Cleaning And Maintenance Checklist
GROUP TRAINING PRODUCT: BASIC CLEANING AND MAINTENANCE CHECKLIST... - Page 11 For cleaning on frame-, pads- and plastic parts, use mild soap and water mixture in spray bottle (10:1 water to soap). For cleaning LCD screen we recommend North cleaning wipes or similar screen cleaning. The checklists below are maintenance beyond the daily cleaning of the equipment. MATRIX TRAINING CYCLES (CXP, CXM, CXC MODELS) WEEKLY Tasks...
-
Page 12: Training Cycles / S-Drive
*To test friction, stand ¾ of the way toward the front of the belt. With no resistance, slightly push on the handlebar, pushing you toward the back of the unit. The belt should move you toward the back of the unit. If not and the serial number begins with TM529, apply 50ml of the Matrix recommended silicon. Using any other lubricant can void the warranty and cause damage to the deck and belt. -
Page 13: S-Force / Rowers
GROUP TRAINING PRODUCT: BASIC CLEANING AND MAINTENANCE CHECKLIST The checklists below are maintenance beyond the daily cleaning of the equipment. S-FORCE PERFORMANCE TRAINER MONTHLY Tasks Wipe entire frame and shrouds with approved cleaner Remove service cover and clean/ vacuum inside Test console Visually inspect foot pedals and straps Inspect magnet carriages for lubrication*... -
Page 14: Connexus
GROUP TRAINING PRODUCT: BASIC CLEANING AND MAINTENANCE CHECKLIST The checklists below are maintenance beyond the daily cleaning of the equipment. CONNEXUS (PERIMETER, FREE-STANDING & COMPACT) MONTHLY Tasks Wipe entire frame and accessories with approved cleaner Ensure unit is secure to the wall and/or floor Inspect adjustable pulleys &... - Page 15 www.casallpro.com...
