Wiring - Maple Systems IO-SHSC02-KIT User Manual

Modular plc high speed counter module
Hide thumbs

Advertisement

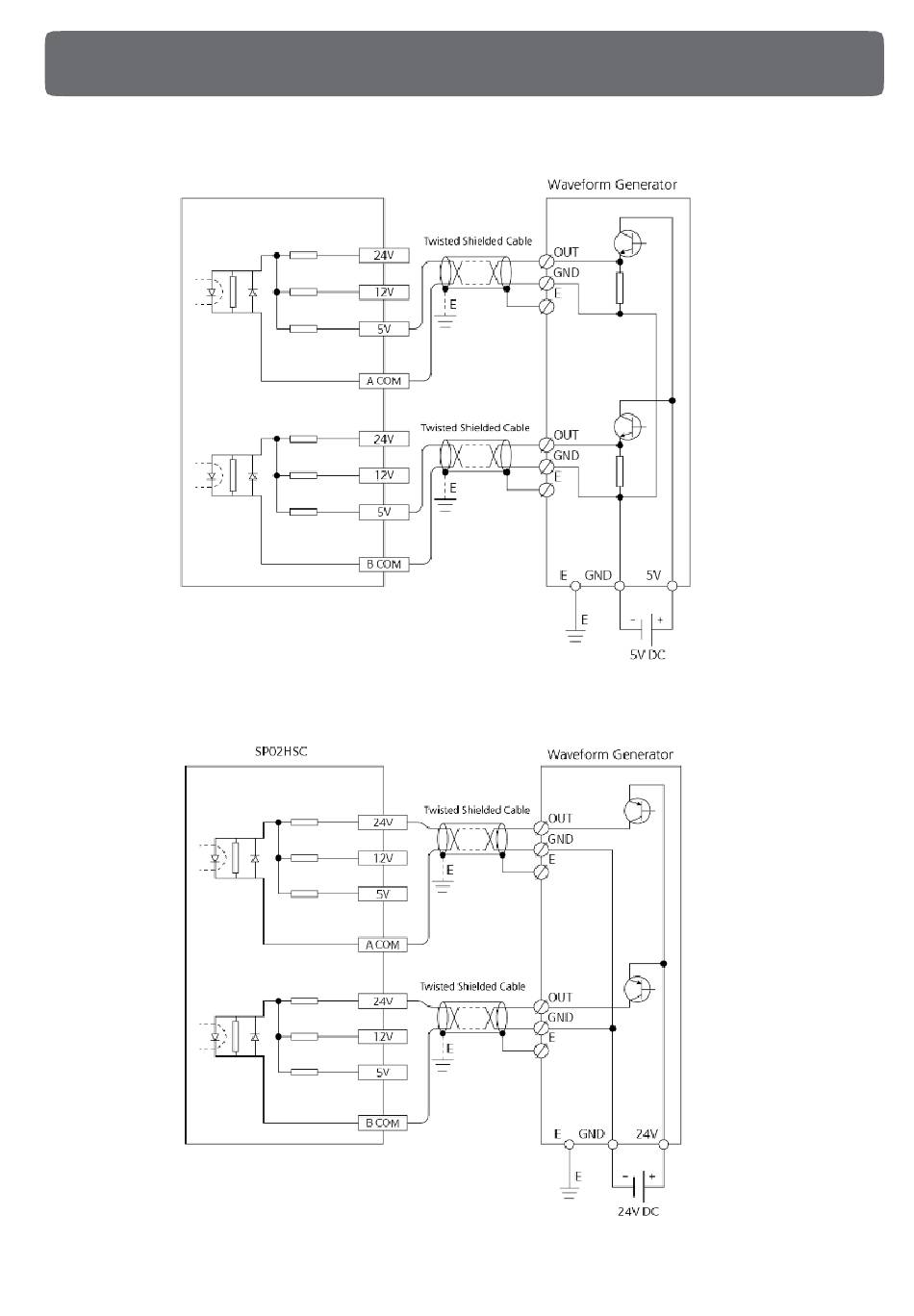

Wiring Examples
1. When waveform generator outputs 5 V. (IO-SHSC02)
2. When waveform generator outputs 24 V PNP open collector output. (IO-SHSC02)
