 CABLE OVERVIEW
Cable Description
Power cable Connect to the supplied adapter.
RJ45 network cable* Connect to an Ethernet network cable.
BNC cable No function.
Terminal block
1. ALARM IN Alarm input for an alarm device like magnetic contacts.
2. ALARM OUT
Alarm output for an alarm device like a siren.
3. GND
Ground wire
4. RS485_A
Used for PTZ camera or other device connection.
5. RS485_B
Used for PTZ camera or other device connection.
Line-in Colored as blue, used to connect to a microphone for audio input.
Line-out Colored as green, used to connect to a speaker for audio output.
RESET A wire reserved for hardware reset.
Remove the insulating coating of the wire, and twist it with the GND
GND
wire together to reset the camera to ifs factory values.
* For PoE (IEEE802.3af) installation, make sure your network cable has the maximum cable resistance
of 20Ω, such as CAT.5e or CAT.6 cables, to conform to the standard of IEEE802.3af.
 DEFAULT VALUES
IP address 192.168.1.10
Port number 88
User name admin
Password admin
It's strongly recommended to change the default user name and password before using the camera to
keep your account safe.
To change the default account, log into the camera, and go to Config.  General  Account.
Create a new account, and remove the default one.
 INSERT A MICRO SD CARD
The data originally saved in the microSD card (if any) will be removed after inserting it to the camera.
The camera doesn't support hot-swapping. Please insert or remove the microSD card with power
disconnected.

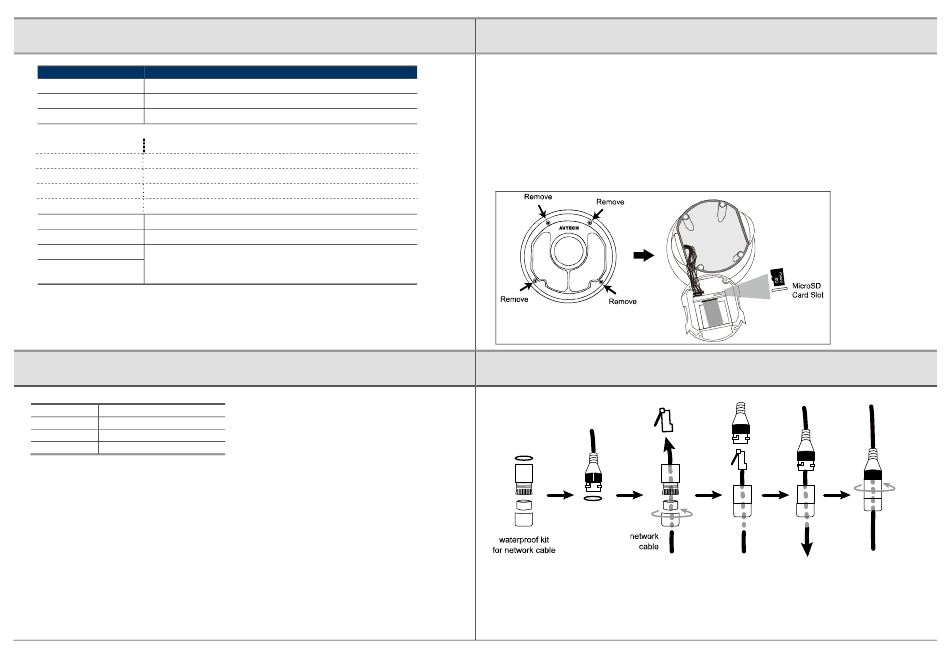

Please follow the directions in the below graphic to insert MicroSD card properly.
Step 1: Remove the four screws. Then remove the plastic cover.
Step 2: After opening the camera hull, you can see the inner structure.
As the below illustration shows, insert the SD card face down into the slot.
Step 3: Replace the hull back, and make sure it's fastened tightly to ensure the waterproof function
works properly.
1q
 WATERPROOF KIT FOR NETWORK CABLE (Optional)
