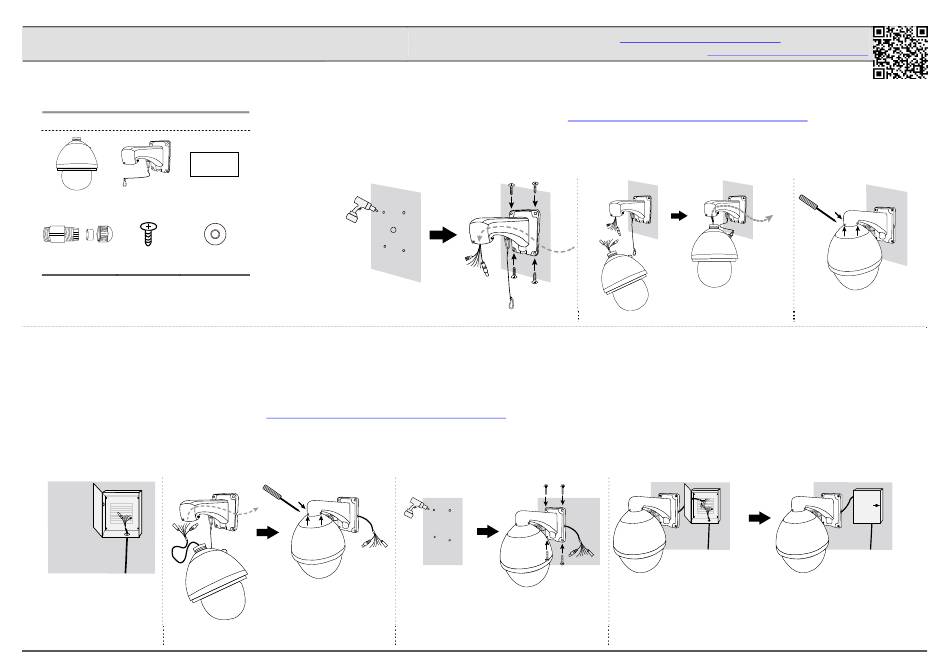

 CAMERA INSTALLATION
TYPE1

 Standard package
Installation
Camera Bracket Instructions
CD manual
Waterproof kit Spare screw
 Installation 2
Step 1: Locate to where you want to install this camera, and install a function box near it with the cables to be connected placing inside.
NOTE: For the cables placing into the junction box, make sure the waterproof protection is made properly.
Step 2: Pass the cables on the camera through the bracket, and fasten the camera to the bracket by securing the three screws as indicated in Figure 2.
Step 3: Locate to where you want to install this camera, and drill four screw holes for bracket installation later.
NOTE: The installation sticker file could be downloaded from www.surveillance-download.com/user/592_installation_sticker.pdf.
Step 4: Arrange the cables to the right side of the bracket as indicated in Figure 3, and fasten the bracket to the wall.
NOTE: It's recommended to use hex flange bolts to secure the bracket to the wall.
Step5: Place the camera cables into a function box as indicated in Figure 4, and connect to the cables placed in Step1.
NOTE: For the cables hidden in the junction box, make sure the waterproof protection is made properly.
Figure 1
1
 Installation 1
Step 1: Locate to where you want to install this camera, and drill four screw holes for bracket installation later, and one hole for
the cable to go through.
NOTE: The installation sticker file could be downloaded from www.surveillance-download.com/user/592_installation_sticker.pdf.
Step 2: Pass the cables to be connected through the bracket, and fasten the bracket to the wall.
Step 3: Hook the camera and the bracket together with the supplied carabiner, and connect the cables. Then, pull the cables from the other
side of the bracket to hide the connectors in the bracket or behind the wall.
Guide
Step 4: Insert the camera to the bracket, and fasten the three screws as indicated in Figure 3 to secure the connection.
a
Figure 2
To check the complete user manual, scan the QR code or go to
To download the free PC CMS software (CMS Lite), please check the supplied CD or go to
Figure 1
Figure 3
www.surveillance-download.com/user/m571.swf
www.surveillance-download.com/user/m571.swf
Figure 2
Figure 4
