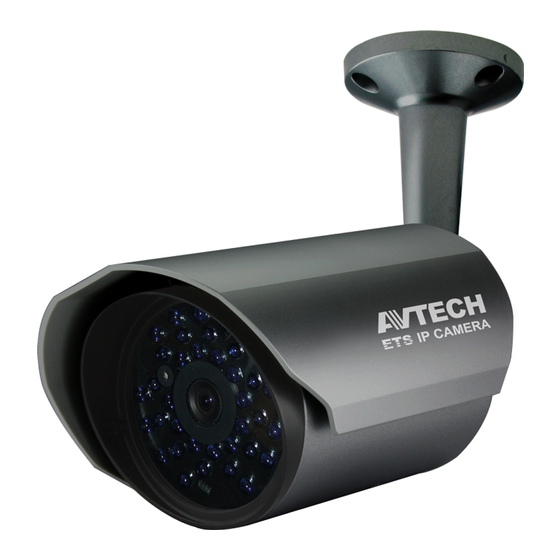

- Page 1 NETWORK CAMERA SERIES ADVANCED NETWORK SETUP Please read instructions thoroughly before operation and retain it for future reference. 565_365_network_V0.9...
- Page 2 IMPORTANT SAFEGUARD All lead-free products offered by the company comply with the requirements of the European law on the Restriction of Hazardous Substances (RoHS) directive, which means our manufacture processes and products are strictly “lead-free” and without the hazardous substances cited in the directive. The crossed-out wheeled bin mark symbolizes that within the European Union the product must be collected separately at the product end-of-life.
- Page 3 MPEG4 Licensing THIS PRODUCT IS LICENSED UNDER THE MPEG4 VISUAL PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER FOR (i) ENCODING VIDEO IN COMPLIANCE WITH THE MPEG4 VISUAL STANDARD (“MPEG-4 VIDEO”) AND/OR (ii) DECODING MPEG4 VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED BY MPEG LA TO PROVIDE MPEG4 VIDEO.
-
Page 4: Table Of Contents
TABLE OF CONTENTS 1. CAMERA NETWORK CONFIGURATIONS ..................1 1.1 Cable Overview ............................1 1.2 Assemble & Install Camera ........................1 1.3 Understand How Your Laptop / Computer Connect to Internet ..............2 1.4 Wireless Router + Modem......................... 2 1.4.1 Configure on Laptop / PC..........................2 1.4.2 Configure on iPhone / iPad ..........................4 1.5 Router + Modem ............................ -
Page 5: Camera Network Configurations
1. CAMERA NETWORK CONFIGURATIONS Please follow the instructions below to finish camera installation and network configurations. You may configure the network connection of this network camera with your laptop / computer, or with your iPhone® or iPad® based on your network environment. 1.1 Cable Overview 1.2 Assemble &... -
Page 6: Understand How Your Laptop / Computer Connect To Internet
1.3 Understand How Your Laptop / Computer Connect to Internet Then, connect your network camera directly to your wireless router / router / hub / modem with a network cable, and power it on. If you’re using: Wireless router + modem, please refer to “1.4 Wireless Router + Modem”. ... - Page 7 Step1: Connect your laptop / PC to the wireless network with the camera connected. Step2: Open “IPScan.exe” ( ) to search your camera, and: Note down the IP address and port number after search, such as “192.168.2.25” and “88” in our example. Select the IP address, and click “Configure”...
-
Page 8: Configure On Iphone / Ipad
Check your connection Step1: Connect your laptop / PC to Internet with the wireless network other than the one camera is connected. Step2: Enter the IP address or host name you just noted down and the port number in the URL address box of the web browser, and see if you can enter the login page of the camera successfully. - Page 9 Step2: Open “EagleEyes” on your iPhone or iPad. In the address book, click “+” to add new device. Then, select “Local Network Search” to search your network camera. You’ll see an IP address assigned by your router. If you connect two or more cameras to the wireless router, you’ll see many cameras with different IP addresses after searching.
-
Page 10: Router + Modem
Step4: Select “Apply” to confirm all your changes. Then, wait till you see “Done” or “Fail” in “Status”. Regardless which message you see, proceed as instructed below: For Done, you’ll return to the new device page. For Fail, select “ ”... - Page 11 Step2: Open “IPScan.exe” ( ) to search your camera, and: Note down the IP address and port number after search, such as “192.168.2.25” and “88” in our example. Select the IP address, and click “Configure” to note down the gateway IP address. It’s the address of your wireless router, and you might need it later for port forwarding.
-
Page 12: Modem / Hub + Modem
Check your connection Step1: Open your web browser, e.g. Internet Explorer. Step2: Enter the IP address or host name you just noted down and the port number in the URL address box of the web browser, and see if you can access the login page of the camera successfully. The format is “http://ipaddress:portnum”... - Page 13 Item Description Account Change your default account password if needed. This change can also be made in “Config.” “General” “Account”. Date and Time Check and select the current date and time. Video Information Select the current environment for the camera to automatically adjust itself to produce the images suitable for the selected environment.
-
Page 14: Change Default Account
Step5: (Optional) Click “DDNS” ( ) to continue setting for PPPOE and DHCP. a) Enable DDNS. b) Select “default” in “System Name”. c) In “Hostname”, keep the default value, i.e. the MAC address of this camera. Then, note down the whole address of the camera, for example, MAC000e531d6ff1.ddns.eagleeyes.tw. -
Page 15: From Iphone / Ipad
1.7.2 From iPhone / iPad Log into the camera, and click “ ” on the top right corner to enter the system configuration page. Select “Advance Setup” “Account”. Then, select the default account “admin”, and click “Edit” to modify the default password, or... -
Page 16: Before You Start To Use
2. BEFORE YOU START TO USE After you finish network configurations, it’s recommended to adjust the video images if needed. Below assumes you’re using Internet Explorer to access the camera. Note: For iPhone users, please access the camera, and select on the top right corner of the live view to enter the configuration page. -
Page 17: Appendix 1 Change Ip Address Of Your Laptop / Pc
APPENDIX 1 CHANGE IP ADDRESS OF YOUR LAPTOP / PC For LAN connection with this network camera, you need to change the IP address of your laptop / PC to 192.168.1.xxx (1~255, except 10) first. Note: Before changing the IP address, make sure you note down the original IP address setting of your laptop / PC. - Page 18 For Windows Vista users: ” (start) “Control Panel” “Network and Internet” to enter the “Network and Sharing Center”. a) Select “ Then, click “Manage network connections” (If you’re in “Category View”). b) Right-click on “Local Area Connection”, and select “Properties”. Note: If your local area connection is not enabled, please also enable it.
- Page 19 b) Right-click on “Local Area Connection”, and select “Properties”. Note: If your local area connection is not enabled, please also enable it. c) In the “Networking” tab, select “Internet Protocol Version 4 (TCP/IPv4)”, and select “Properties”. d) In the “General” tab, select “Use the following IP address”, and set the IP address as described below. Note: It’s recommended to note down the current settings first and then change as instructed.
-
Page 20: Appendix 2 Mobile Surveillance Via Eagleeyes
APPENDIX 2 MOBILE SURVEILLANCE VIA EAGLEEYES EagleEyes is a mobile phone program used with our surveillance system for remote surveillance. It has several advantages: It’s free (Except EagleEyes Plus for iPhone). It’s compatible with several popular mobile platforms, such as iPhone, iPad and Android. It’s easy to download, install and configure. -
Page 21: Appendix 3 Poe Connection
APPENDIX 3 POE CONNECTION This device supports PoE (Power-over-Ethernet), developed by the IEEE802.3af task force, and power can be supplied over the same network (Ethernet) cable as the one used to connect to Internet. No power cable is needed. Below shows two examples of POE application for reference. ... -
Page 22: Appendix 4 Configure Port Forwarding
APPENDIX 4 CONFIGURE PORT FORWARDING You need to additionally access your router for port forwarding when your router doesn’t support UPnP. Each router has different setting page. Here we’re taking D-Link wireless router as an example. Step1: Access your router for port forwarding. ... -
Page 23: Appendix 5 Q&A
APPENDIX 5 Q&A For more details about EagleEyes Q&A, please visit our official website: www.eagleeyescctv.com/supp_QnA.aspx. Question Answer I can connect to this camera in my house You didn’t configure this camera to Internet, but only in LAN. or office where it’s installed with wireless Please follow the steps in the advanced network setup guide to network.
