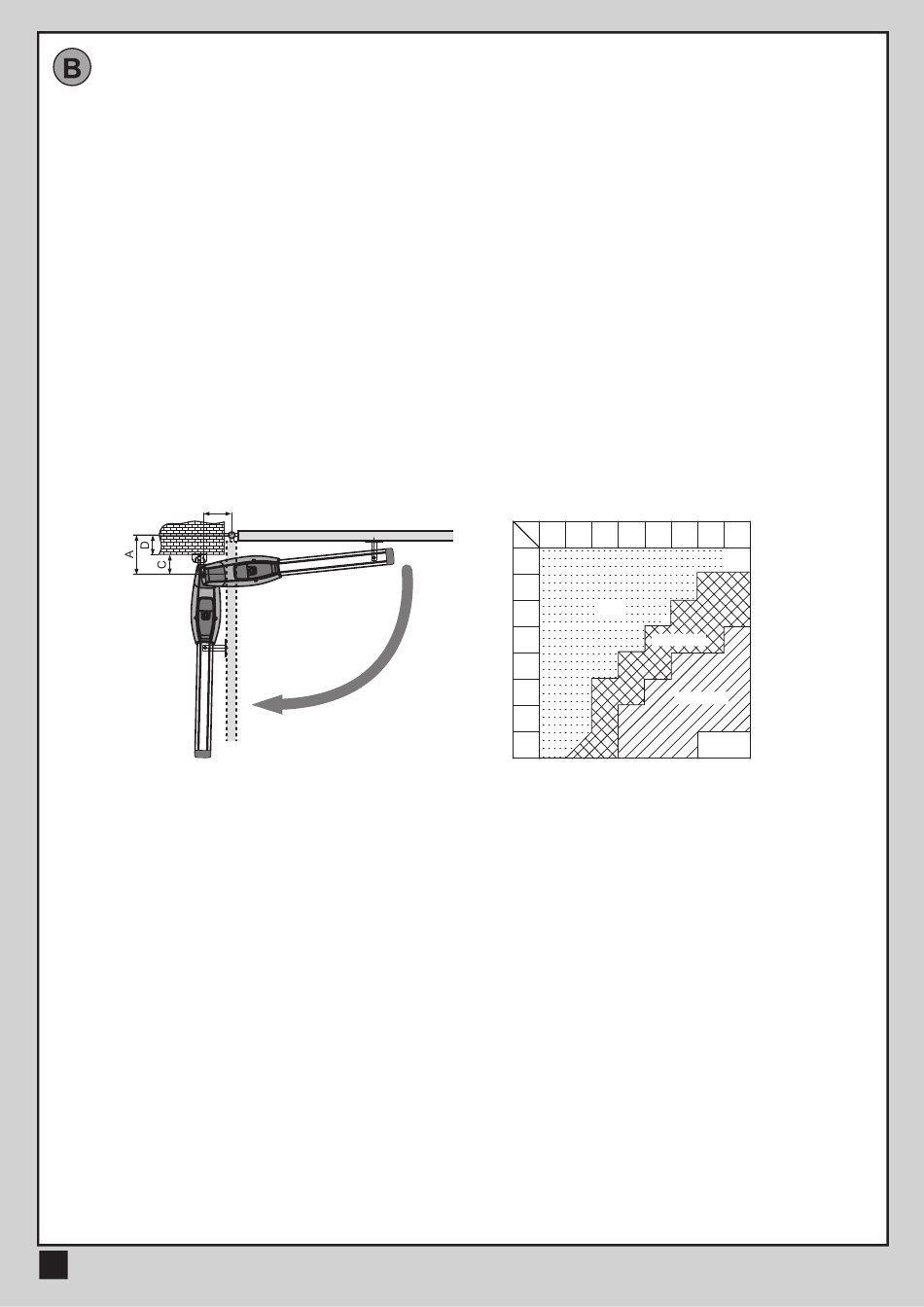

DIMENSION CHART

Comply with the measures shown on the chart for proper installation. Adjust the gate structure to fit it
for best automation, if necessary.
Before preceding the installation, be sure that gate moves freely and that:
1) Hinges are properly positioned and greased.
2) No obstacles in the moving area.
3) No frictions between two gate leafs or with the ground while moving
4). "C" value is 139mm.
5). "D" can be measured from the gate easil
6). "A" = "C" + "D"
7). The value of "B" can be calculated from the value of "A" and the leaves opening angle.
Ex. If "A"=160mm with the leaves opening angle of 100 degrees, then the value of "B" is
approximate 190mm.
**Please make sure "B" and "A" are similar or the same in value that the leaves can be operated
smoothly, also to reduce the burden of the motor.
B
2
4
y.
B
140 150 160 170 180 190 200 210
A
140
150
>120°
160
110°~120°
170
180
190
100°~110°
200
210
MASTIFF 300L SWING GATE OPENER USER MANUAL
90°~100°
