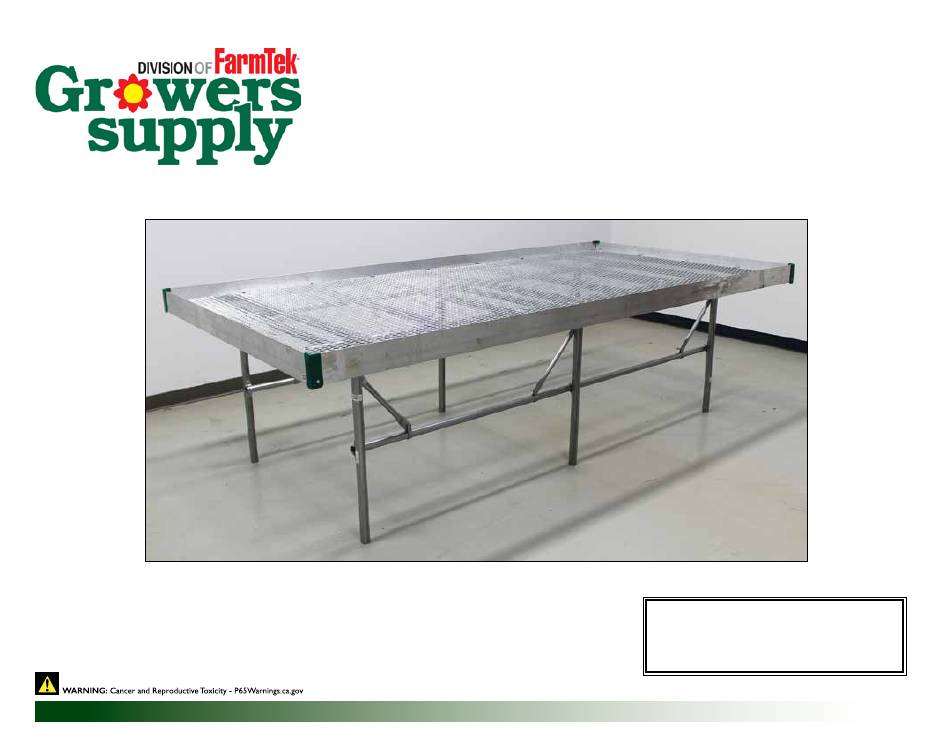

5' Wide Premium Greenhouse Benches
Premium Greenhouse Bench with Rolling Top
STK#
DIMENSIONS
112415R5X08
5' W x 3' H x 8' L
112415R5X10
5' W x 3' H x 10' L
112415R5X12
5' W x 3' H x 12' L
*
Actual bench may differ from example shown.
1
Advertisement
Related Manuals for FarmTek Growers supply 112415R5X08
Summary of Contents for FarmTek Growers supply 112415R5X08
- Page 1 5' Wide Premium Greenhouse Benches Premium Greenhouse Bench with Rolling Top STK# DIMENSIONS 112415R5X08 5' W x 3' H x 8' L ©2015 FarmTek ® 112415R5X10 5' W x 3' H x 10' L All Rights Reserved. Reproduction is prohibited without permission.
- Page 2 Important Information READ THIS DOCUMENT BEFORE YOU BEGIN Thank you for purchasing this premium greenhouse bench. When properly assembled and maintained, this product will provide years of reliable service. These instructions include helpful hints and important information needed to safely assemble and properly maintain the bench. Please read these instructions before you begin.
- Page 3 Important Information PICTORIAL GUIDE The following graphics and photos will help identify the different parts of your bench. (Some parts may not be shown.) 102921B FALB10B FAG102B FA4482B 108553 Wafer QH1070 Pipe 100442 (1) Neo-Bonded 1/4" Nut 1/4" x 3/4" Bolt Tek Screw Head Screw Strap...
- Page 4 Assembly Instructions ASSEMBLE BENCH TOP SUPPORTS Use the photos and information that follows to construct the bench top frame supports. The 12' bench has four (4) support assemblies. The 8' and 10' benches each have three (3) supports. Gather the parts required to complete one (1) support assembly: •...
- Page 5 Assembly Instructions 6. Tighten 1/4" bolts. 7. Check square tube position. 8. Install one FA4482B Tek screw in center. 9. Check assembly for square. 10. Secure bracket in place using two (2) 11. Flip assembly over and repeat Steps 8-10 more Tek screws.
- Page 6 Assembly Instructions ATTACH LOWER PIPE STRAPS Use the photos and information that follows to attach the QH1070 straps. Attach two QH1070 straps to each bench top support assembly. QH1070 1. Measure 15-3/4" from the bottom of each leg 2. Have an assistant hold the assembly and 3.
- Page 7 Assembly Instructions ASSEMBLE SUPPORT FRAME FOR BENCH TOP For best results, assemble the support frame on a flat, level surface. Gather the parts for the support frame: • (6) ST01500D706G19 struts; eight (8) for the 12' bench. • (2) 1.315" diameter round pipes. (See Quick Start diagrams for pipe length/ID.) •...
- Page 8 Assembly Instructions ASSEMBLE SUPPORT FRAME FOR BENCH TOP—continued 7. Tighten the pipe strap mounting bolts of 8. Check that six (6) band clamps are in position 9. Take one strut and attach it to one band clamp. the mid support. Tighten until snug. Do not on the horizontal pipes–eight (8) for the 12' overtighten.
- Page 9 Assembly Instructions ASSEMBLE SUPPORT FRAME FOR BENCH TOP—continued 13. Move to the lower strut connection and 14. Using a level, verify that the support leg is 15. Repeat to attach the remaining strut for the reposition band clamp as needed. plumb/vertical.
- Page 10 Assembly Instructions INSTALL ROLLER PIPES Gather the roller pipe parts: • (2) 1.315" diameter pipes (See Quick Start section for pipe lengths and identification.) • FA4482B Tek screws 10" 1. Move to one end support crossbar and 2. Install one FA4482B Tek screw at each point NOTE: These Tek screws function as roller measure 10"...
- Page 11 Assembly Instructions ASSEMBLE BENCH TOP For best results, assemble the bench top frame with an assistant on a flat, level surface. Gather the parts for the support frame: • (2) 112399L060375 frame end rails–short • 125P060 support tubes • FA4482B Tek screws •...
- Page 12 Assembly Instructions ASSEMBLE BENCH TOP—continued 7. Move to the end rails and attach side rails as 8. With assistance, gently tap the rails to seat 9. Using a carpenter's square, square all corners. shown. Position the channel edges of the side the ends at the corner.
- Page 13 Assembly Instructions 102921B FA4482B ASSEMBLE BENCH TOP—continued Neo-Bonded Tek Screw Washer ATTENTION: Actual bench may differ from what is shown. Consult the Quick Start Guide for your bench details. 12. With assistance, carefully lift the expanded 13. Lower the expanded metal top into the frame. NOTE: Use a block of wood or small hammer metal top and carry it to the assembled frame.
- Page 14 Assembly Instructions 102921B FA4482B ASSEMBLE BENCH TOP—continued Neo-Bonded Tek Screw Washer 17. Continue to install Tek screws and washers NOTE: Install screws in a position that best Photo shows a Tek screw and washer installed along the side rail at each support tube. secures both the expanded metal top and the through the side rail and into the support tube.
- Page 15 Assembly Instructions ATTENTION: Actual bench may differ from what is shown. ADJUST ROLLER PIPES AND TEST Consult the Quick Start Guide for your bench details. Align Outside edge of crossbar. 1. Carefully slide the bench top to one side until 2.
- Page 16 Assembly Instructions ATTENTION: Actual bench may differ from what is shown. INSTALL SAFETY CHAINS Consult the Quick Start Guide for your bench details. 1. Take the AR4112Z10 length of chain and 2. Using pliers, grip the link and carefully bend 3.
- Page 17 Assembly Instructions INSTALL SAFETY CHAINS—continued 7. Repeat Steps 4-6 to attach the remaining 8. Carefully roll the bench top to one side. Rollers 9. Hook the free end of a chain over the safety chains—one to the top of each support will stop against the Tek screws installed in expanded metal top from the underside.
- Page 18 PAGE RESERVED FOR CUSTOMER NOTES AND RECORDS Revision date: 08.26.15...
- Page 19 Quick Start Guide 5' x 8' Premium Bench – Rolling Top 112415R5X08 5' x 10' Premium Bench – Rolling Top 112415R5X10 5' x 12' Premium Bench – Rolling Top 112415R5X12 WARNING: Bench top can tip! Do not roll top when weight is all along one side.
- Page 20 5' x 8' (112415R5X08) Premium Bench – Rolling Top See next page for 5' x 8' FALB10B bench top parts. FAG102B Bolt 112391 Bolt Clamp 131P0845 FA4482B Tek Screw S125P045 QH1070 Pipe Strap ST01500D706G19 Strut 112391 Roller Bolt Clamp Pipes QH1400 Band Clamp S125P03175...
- Page 21 5' x 8' (112415R5X08) Bench Top – Exploded View FA4482B 108553 Wafer 102921B Tek Screw Head Screw Neo-Bonded Washer 5' x 8' Bench Top 112415R5X08 FA4482B Tek Screw and 102921B Neo- Bonded Washer S125P060 Support Tube 112815 Poly Bench Corner 108553 Waferhead Screw...
- Page 22 5' x 10' (112415R5X10) Premium Bench – Rolling Top See next page for 5' x 10' FALB10B bench top parts. FAG102B Bolt 112391 Bolt Clamp 131P108 FA4482B Tek Screw S125P045 QH1070 Pipe Strap 112391 ST01500D706G19 Bolt Clamp Strut Roller QH1400 Pipes Band Clamp S125P03175...
- Page 23 5' x 10' (112415R5X10) Bench Top – Exploded View FA4482B 108553 Wafer 102921B Tek Screw Head Screw Neo-Bonded Washer 5' x 10' Bench Top 112415R5X10 FA4482B Tek Screw and 102921B Neo-Bonded Washer S125P060 Support Tube 112815 Poly Bench Corner 108553 Waferhead Screw ATTENTION: Evenly space the S125P060...
- Page 24 5' x 12' (112415R5X12) Premium Bench – Rolling Top See next page for 5' x 12' FALB10B bench top parts. FAG102B Bolt 112391 Bolt 131P132G17 Clamp FA4482B Tek Screw S125P045 QH1070 Pipe Strap ST01500D706G19 Strut 112391 Bolt Clamp Roller QH1400 Pipes Band Clamp S125P03175...
- Page 25 5' x 12' (112415R5X12) Bench Top – Exploded View FA4482B 108553 Wafer 102921B Tek Screw Head Screw Neo-Bonded Washer 5' x 12' Bench Top 112415R5X12 FA4482B Tek Screw and 102921B Neo-Bonded Washer S125P060 Support Tube 112815 Poly Bench Corner 108553 Waferhead ATTENTION: Evenly space the S125P060 Screw...
