Falcon TA Series Installation Instructions Manual

Hide thumbs Also See for TA Series:

Advertisement

Quick Links

INDEX
INDEX
TOOLS
INSTALLATION PREPARATION
FOR LOCK LESS CYLINDER ONLY
INSIDE OF LOCK
TA381 Vestibule Function ONLY
TA561 Classroom Function ONLY
TA575 Classroom Security Function ONLY
LEVER REMOVAL
ROSE REMOVAL
LOCK FUNCTIONAL TESTING
P
T
C
M

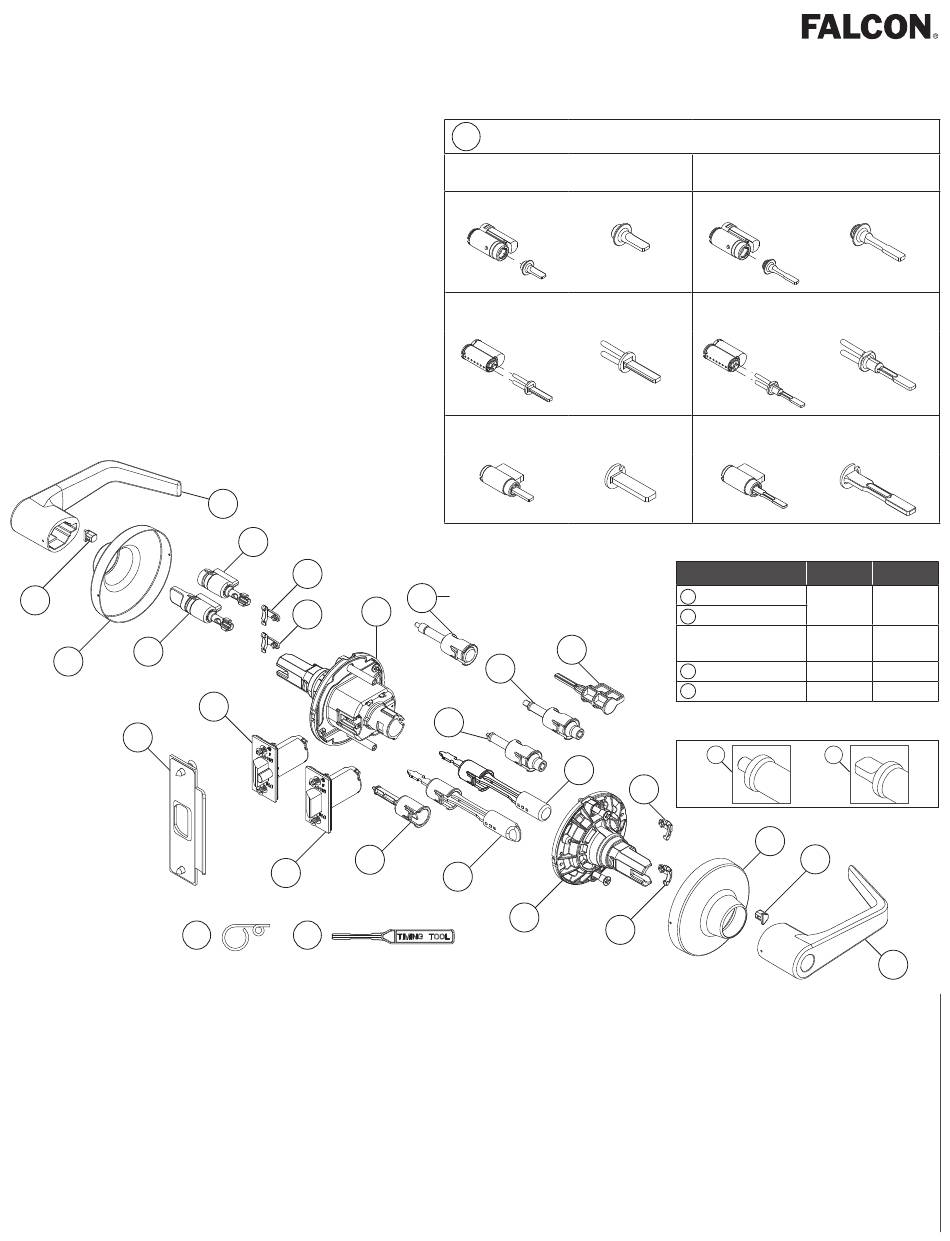

A Chassis/Outside Spring Cage/Spindle Assembly
B Inside Spring Cage/Spindle Assembly
C Rose
D Inside Lever
E Outside Lever
F Dead Latch Assembly (TA381, TA501, TA511, TA561, TA571,
TA575, TA581)
G Spring Latch Assembly (TA101, TA291, TA301)
H Plunger Assembly, Push Button (TA291, TA301, TA501, TA571)
I
Plunger Assembly, Push-Turn Button (TA511)
J
Plunger Assembly, Storeroom Function (TA581)
K Plunger Assembly, Vestibule (TA381)
2
2
4
5
5
6
7
8
8
9
E
See cylinder
S
details
spacer
at right.
Q
A
R
F
J
G
V
W
TA Series
Y
Outside for TA381, TA501, TA511,
TA571, and TA581
Full Size IC (FSIC)
Small Format IC
(SFIC)
Standard Cylinder
(KIL)
U
Supplied only with
TA101 for thick door
(>1¾"-2⅛")
N
L
See plunger
details
end
at right.
K
I
B
See cylinder
spacer
above.
L Plunger Assembly, Classroom and Classroom Security (TA561, TA575)
M Strike Assembly
N Dummy Cylinder (TA561)
P Cylinder Spacer, FSIC
Q Cylinder Spacer, SFIC (7-pin spacer shown)
R Cylinder Spacer, KIL and Privacy Turns
S Outside Button Privacy Function (TA301)
T Outside Button Privacy/Hospital Function (TA291)
U Plunger Assembly, Passage (TA101) for Thick Door Application ONLY
V Pin Wrench, included
W Timing Tool, included (TA381, TA561, TA575 only)
Y Cylinder (TA381, TA501, TA511, TA561. TA571, TA575, TA581)
Cylinder and Tailpiece Options
Inside for TA381, outside for TA561,
inside and outside for TA575
Tailpiece
FSIC
Tailpiece
SFIC
Tailpiece
KIL
Cylinder Spacer Reference
DESCRIPTION
Key in lever (KIL)
R
Outside button
R
SFIC, 6-pin
(not shown)
Q
SFIC, 7-pin
P
FSIC
Plunger Assembly End Details
K
H
Q
R
details
Installation Instructions
Tailpiece
Tailpiece
Tailpiece
USAGE COLOR
Spindle
White
Spindle
Black
Spindle
Gold
Lever
White
L
C
P
D

Advertisement

loading
Need help?

Need help?

Do you have a question about the TA Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Falcon TA Series

  • Page 1 TA Series INDEX Installation Instructions INDEX Cylinder and Tailpiece Options TOOLS Outside for TA381, TA501, TA511, Inside for TA381, outside for TA561, INSTALLATION PREPARATION TA571, and TA581 inside and outside for TA575 FOR LOCK LESS CYLINDER ONLY Full Size IC (FSIC)
  • Page 2: Optional Tools

    TOOLS INSTALLATION PREPARATION Tools required: Door preparation: Before installation, check the door for proper preparation. Backset 2³⁄8” or 2³⁄4” Optional tools: ⁵⁄16” x2 1” dia. 2⅛” dia. L NOTE: Use power tools for door ⅛” x2 Mortise for latch preparation faceplate only.
  • Page 3 Install inside spring cage assembly Install inside lever Fully tighten mounting screws. FOR FUNCTIONS TA101, TA291, TA301, TA501, TA511, TA571, AND TA581 ONLY : Lever catch faces door edge. (For other functions, see note below.) Push the inside lever onto the spindle. Be sure to engage the lever catch.
  • Page 4 FOR LOCK LESS CYLINDER ONLY INSTALL OUTSIDE CYLINDER (Skip if cylinder is already installed) For all cylinders, rotate the outside keycam driver. All functions TA571 Function ONLY Correct position EXCEPT TA571 Insert flat screwdriver into keycam and rotate clockwise until it stops. Insert flat screwdriver into keycam driver and rotate For KIL cylinder, rotate...
  • Page 5 INSIDE OF LOCK TA381 Vestibule Function ONLY A. Install strike, latch, chassis/spring cage assembly, and inside rose as shown in steps 1 through 5 (pages 2–3). If necessary, install outside lever and outside cylinder (see " " on page 4). For Lock Less Cylinder Only NOTE: TA381 cylinders use a short, straight tailpiece on the outside and a long, indented tailpiece inside.
  • Page 6 TA561 Classroom Function ONLY See other functions on previous and following pages. A. Install strike, latch, chassis/outside spring cage assembly, and inside rose as shown in steps 1 through 5 (pages 2–3). If necessary, install outside lever and outside cylinder (see " For Lock Less Cylinder Only "...
  • Page 7 TA575 Classroom Security Function ONLY See other functions on previous pages. A. Install strike, latch, chassis/outside spring cage assembly, and inside rose as shown in steps 1 through 5. If necessary, install outside lever and outside cylinder (see " For Lock Less Cylinder Only "...
  • Page 8 LEVER REMOVAL Closed lever IC cylinder and IC lever (inside or outside) (TA101 inside and outside, or TA561, TA581 inside) 1. Insert control key and turn 15 degrees clockwise. 1. Push the lever catch with the pin wrench. 2. Pull out the cylinder. 2.
  • Page 9 LOCK FUNCTIONAL TESTING NOTICE Test the lock with the door open to prevent being locked out. TA101 Passage Function 1. Rotate inside lever. Rotation should be smooth and latch should retract. 2. Rotate outside lever. Rotation should be smooth and latch should retract. TA301 Privacy Function 1.
  • Page 10 TA561 Classroom Function 1. Rotate the outside key 225 degrees counterclockwise (to hard stop), and back to home to lock the outside lever. Check that the outside lever is locked. 2. Rotate the outside key 225 degrees clockwise (to hard stop), and back to home to unlock the outside lever. Check that the outside lever is unlocked.
