Falcon TA Series Installation Instructions Manual

Hide thumbs Also See for TA Series:
Table of Contents

Advertisement

Quick Links

Download this manual

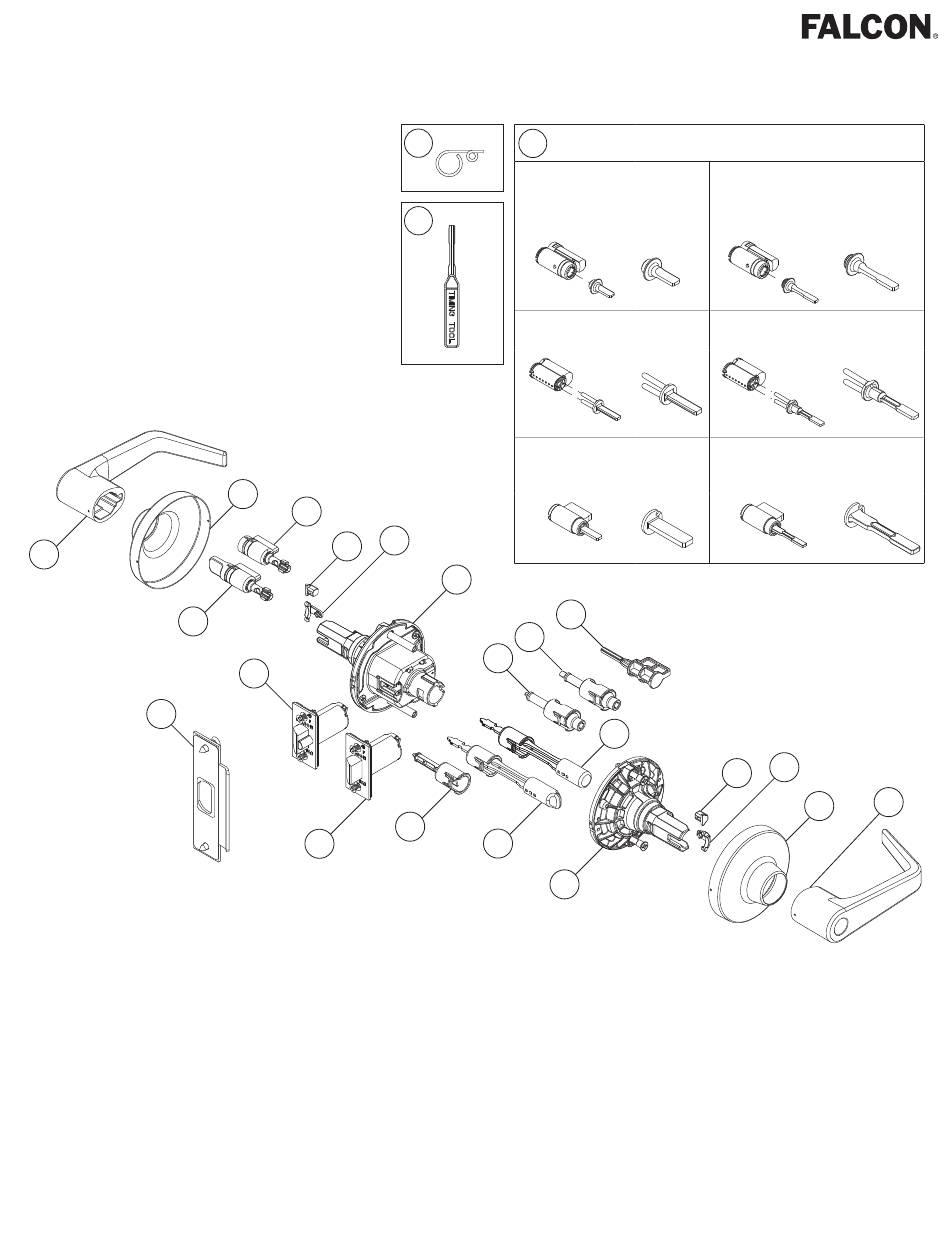

INDEX
E
S
M
A Chassis/Outside Spring Cage Assembly
B Inside Spring Cage Assembly
C Rose
D Inside Lever
E Outside Lever
F Dead Latch Assembly (TA381, TA501, TA511, TA561, TA571, TA575,
TA581)
G Spring Latch Assembly (TA101, TA291, TA301)
H Push Button Plunger Assembly (TA291, TA301, TA501, TA571)
I
Push-Turn Button Plunger Assembly (TA511)
J
Storeroom Function Plunger (TA581)
K Vestibule Function Plunger Assembly (TA381)
TA Series
T
2
2
4
5
5
6
7
8
9
C
R
Q
P
F
J
G
V
Full Size IC
(FSIC)
Small Format IC
(SFIC)
Standard
Cylinder (KIL)
A
N
L
K
H
I
B
L Classroom and Classroom Security Functions, Plunger Assembly
(TA561, TA575)
M Strike Assembly
N Dummy Cylinder (TA561)
P Cylinder Spacer, FSIC
Q Cylinder Spacer, KIL and Privacy Functions
R Outside Button Privacy Function (TA301)
S Outside Button Privacy/Hospital Function (TA291)
T Pin Wrench, included
U Timing Tool, included (TA381, TA561, TA575 only)
V Cylinder (TA381, TA501, TA511, TA561. TA571, TA575, TA581)
Installation Instructions
Cylinder Options
Tailpiece
FSIC, Classroom
and Vestibule
SFIC, Classroom
and Vestibule
Standard Cylinder,
Classroom and
Vestibule
Q
P
C
Tailpiece,
Classroom
and
Vestibule
D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TA Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Falcon TA Series

Summary of Contents for Falcon TA Series

  • Page 1: Table Of Contents

    TA Series Installation Instructions INDEX Cylinder Options TOOLS Full Size IC Tailpiece FSIC, Classroom Tailpiece, INSTALLATION PREPARATION Classroom (FSIC) and Vestibule FOR LOCK LESS CYLINDER ONLY Vestibule INSIDE OF LOCK TA381 Corridor Function ONLY TA561 Classroom Function ONLY TA575 Classroom Security Function ONLY...

  • Page 2: Tools

    TOOLS INSTALLATION PREPARATION Tools required: Door preparation: Before installation, check the door for proper preparation. Backset 2³⁄8” or 2³⁄4” Optional tools: ⁵⁄16” x2 1” dia. 2⅛” dia. ⅛” x2 Mortise for latch faceplate 2¹⁄4” x 1⅛” x ⁵⁄32” Timing tool (included) 2¹⁄4”...
  • Page 3 Install inside spring cage assembly Install inside lever Fully tighten mounting screws. FOR FUNCTIONS TA101, TA291, TA301, TA501, TA511, TA571, AND TA581 ONLY: Lever catch faces door edge. Push the inside lever onto the spindle. Be sure to engage the lever catch. Lever catch Lever catch Inside...

  • Page 4: For Lock Less Cylinder Only

    FOR LOCK LESS CYLINDER ONLY INSTALL OUTSIDE CYLINDER (Skip if cylinder is already installed) For all cylinders, rotate the keycam driver clockwise. All functions TA571 Function ONLY EXCEPT TA571 Insert flat screwdriver into cam and Insert flat screwdriver rotate clockwise until it stops. into cam and rotate For KIL cylinder, rotate clockwise until it stops.

  • Page 5: Inside Of Lock 5 U

    INSIDE OF LOCK TA381 Corridor Function ONLY 1. Install strike, latch and chassis/outside spring cage assembly FOR IC CYLINDER: as shown in steps 1 through 5. 1. If the inside lever is not installed, push the lever onto the spindle. Be sure to engage the lever catch. 2.

  • Page 6: Ta561 Classroom Function Only

    TA561 Classroom Function ONLY See other functions on previous and following pages. 1. Install strike, latch and chassis/outside spring cage assembly as shown in steps 1 through 5. 2. Adjust the inside hub position using the timing tool: TA561 Function ONLY Rotate inside hub with timing tool clockwise until it stops.

  • Page 7: Ta575 Classroom Security Function Only

    TA575 Classroom Security Function ONLY See other functions on previous pages. FOR IC CYLINDER: 1. If the inside lever is not installed, push the lever onto the spindle. Be sure to engage the lever catch. 1. Install strike, latch and chassis/outside spring cage assembly as shown in steps 1 through 5.

  • Page 8: Lock Disassembly

    LOCK DISASSEMBLY Closed lever Lever with IC cylinder 1. Push the lever catch with the pin wrench. 1. Insert control key and turn 15 degrees clockwise. 2. Pull off the lever while pushing on the pin wrench. 2. Pull out the cylinder. 3.

  • Page 9: Lock Functional Testing

    LOCK FUNCTIONAL TESTING NOTICE Test the lock with the door open to prevent being locked out. TA101 Passage Function 1. Rotate inside lever. Rotation should be smooth and latch should retract. 2. Rotate outside lever. Rotation should be smooth and latch should retract. TA301 Privacy Function 1.
  • Page 10 TA561 Classroom Function 1. Rotate the outside key 225 degrees counterclockwise (to hard stop), and back to home to lock the outside lever. Check that the outside lever is locked. 2. Rotate the outside key 225 degrees clockwise (to hard stop), and back to home to unlock the outside lever. Check that the outside lever is unlocked.

This manual is also suitable for:

Ta381Ta501Ta511Ta561Ta571Ta575 ... Show all
