2. Map your stream/s:
a. Protocol – stream protocol,
b. IP address – fill in the address depending on multicast or unicast stream,
c. Port – stream port number,
d. Channel – define the particular channel of the stream,
e. Ch. Count – sets the total number of channels of the stream,
f. Interface – define which LAN of the device is used,
g. Active – activate or deactivate individual your stream by simple click on the rectangle.
IMPORTANT: micnode mini stream configuration needs to correspond to transmitter configuration in your Q-SYS
designer.
3. Confirm your configuration with the Submit button.
NOTE: The field below the Submit button will show the progress and validation messages in case of any connection
errors
The nnounce configuration UI takes over the streams configuration to Audio Streams section shows the streams as
configured in the Q-SYS designer.
•
TX stream – transmits audio to other devices, output.

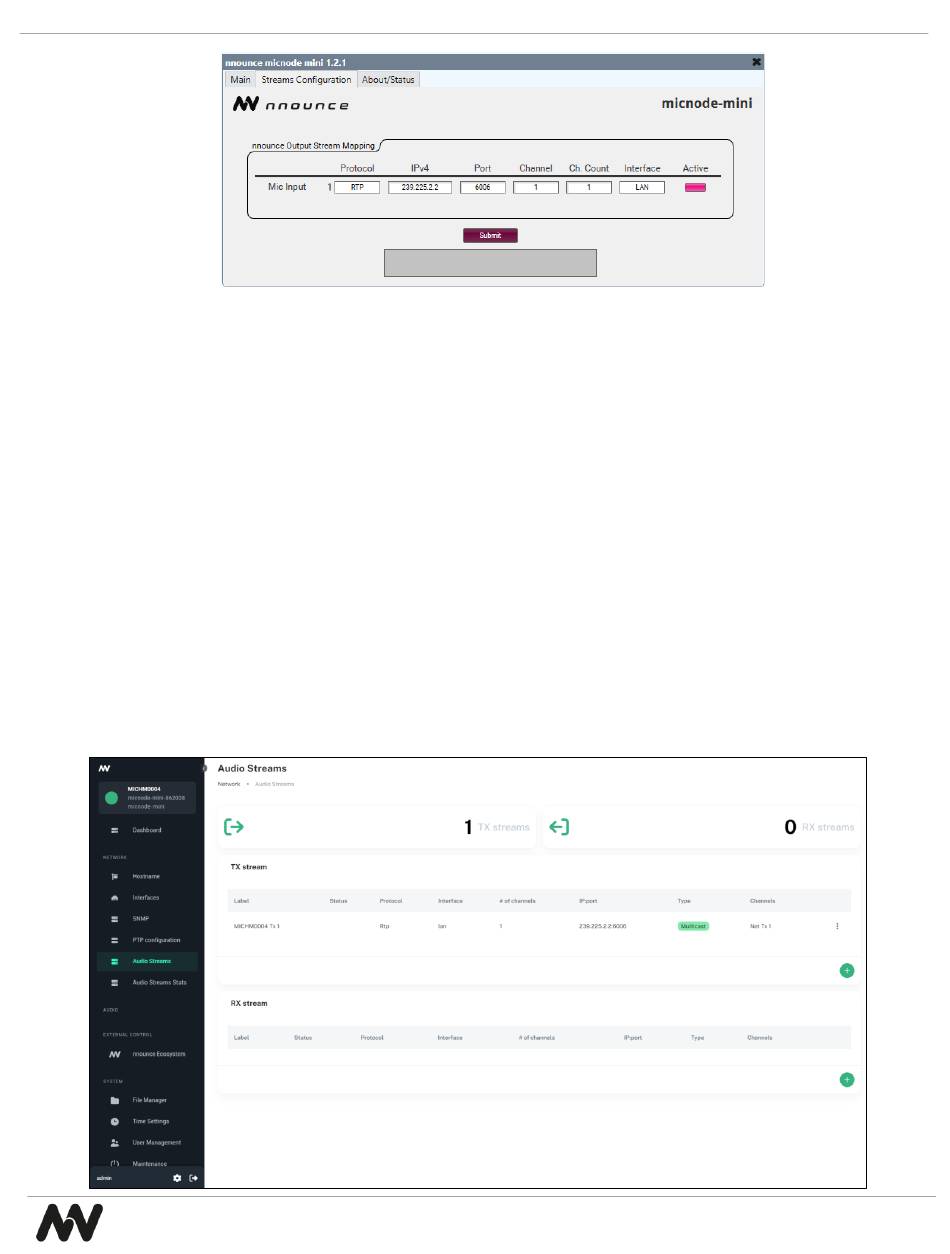

Example of Audio streams configuration in nnounce configuration UI:
