Simpleway NNOUNCE micnode mini Hardware User's Manual page 12

micnode mini – Hardware User Guide
IMPORTANT: The number is further used for stream configuration.
NOTE: Connection Mode will be selected based on Q-SYS version. In older versions TCP socket needs to be manually
selected. Web-Socket with encryption is supported since Q-SYS version 9.8.

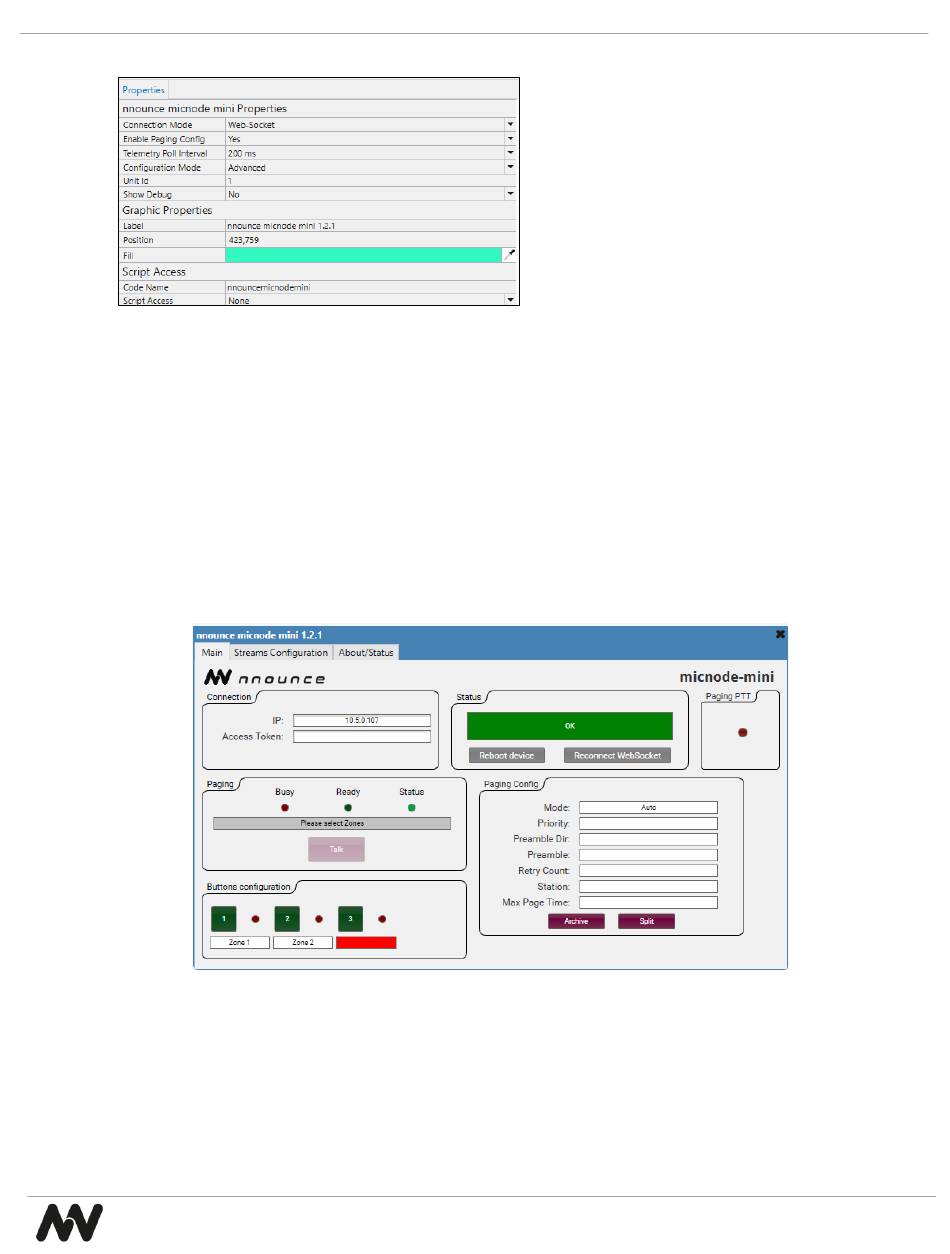

6. Create your design in Q-SYS or add the micnode mini to your existing audio configuration. Make sure your design
is disconnected for this step.
7. Save to core & Run, after that open the micnode mini plugin detail and set Host/IP of the micnode mini device.
NOTE: For secured Web-Socket connection it is required to use domain name of the device.
IMPORTANT: Use the host as defined in the Connect the Device chapter above – micnode-mini dash and the last six
numbers of the station's MAC address. Example:
Upon successful connection status field should be OK.
NOTE: Connection Mode will be selected based on Q-SYS version. Web-Socket with encryption is supported since Q-
SYS version 9.8.
Zone Buttons Configuration
Configure the zone selection buttons by assigning an available zone to the button.
IMPORTANT: Buttons are numbered from top to bottom on the device.
TM
nnounce by Simpleway
micnode-mini-000000
NN_USER_GUIDE_micnodeMINI_v1.1.docx
12
