3008209 (Oak), 3008109 (White)

RH - LIV DESK WITH DOUBLE DRAWERS

Weight Limit: 66 lbs / 30 kg (top)

CJ 2023/09/04

B34300820900 - 147552

Need help?

Do you have a question about the 3008209 and is the answer not in the manual?

Questions and answers

Summary of Contents for RealRooms Products 3008209

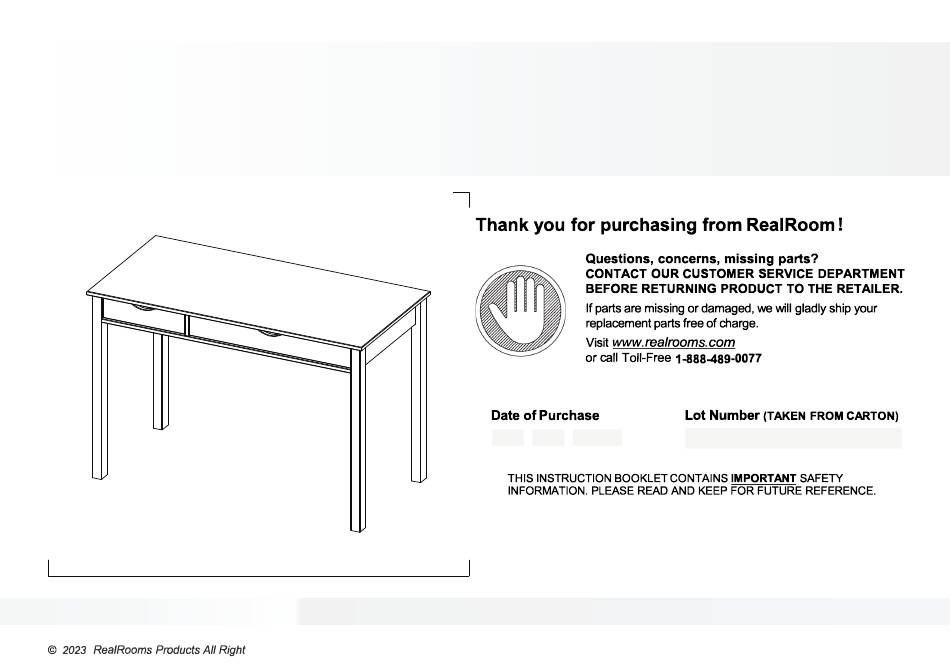

Page 1 3008209 (Oak), 3008109 (White) RH - LIV DESK WITH DOUBLE DRAWERS Weight Limit: 66 lbs / 30 kg (top) CJ 2023/09/04 B34300820900 - 147552...
Page 2 Limited 1 year Warranty Read Before Beginning Assembly RealRoomswarrants this product to be free from defects in material and Work in a spacious area and near where the unit will be used, preferably on a workmanship and agrees to remedy any such defect. This warranty covers one carpet, or use a piece of the cardboard packaging to protect your ﬂoor and year from the date of original purchase from authorized retailers.
Page 3 PARTS...
Page 4 TOP PANEL RIGHT SIDE TRAY LEFT SIDE TRAY REAR TRAY 1 PC 1 PC 1 PC 1 PC CENTER TRAY DRAWER SUPPORT RIGHT BACK LEG RIGHT FRONT LEG 1 PC 1 PC 1 PC 1 PC LEFT REAR LEG LEFT FRONT LEG DRAWER SIDE SMALLER DRAWER REAR PANEL 1 PC...
Page 5 SMALLER DRAWER BOTTOM SMALLER DRAWER FRONT PANEL BIGGER DRAWER REAR PANEL BIGGER DRAWER BOTTOM 1 PC 1 PC 1 PC 1 PC 3008209 3008109 3008209 3008109 (Oak) (White) (Oak) (White) U3005212-10 U5756212-01 U5756219-01 U5756219-10 U3005212-11 U3005212-02 U5756219-02 U5756219-11 U3005212-12 U3005212-03...
Page 6: Hardware List
WOOD DOWEL WOOD DOWEL 24PC 25 PC 16 PC 02 PC 01 PC NAIL Plastic Slide Plastic Slide Plastic Slide Plastic Slide 02 PC 02 PC 02 PC 02 PC 40 PC 3008209 (Oak) HP#: 3008109-00 3008109 (White) HP#: 3008109-00...
Page 7 Step 1 Insert the slide (G) into the holes in the center trey (5),following the order and position indicated in this step. For best results, start by fastening ends pins, then fasten the center pin.
Page 8 Step 2 Assemble the legs (8) and (10) on the left side hanging from the left rail.
Page 9 Step 3 Assemble the legs (07) and (09) on the right side hanging from the right rail.
Page 10 Step 4 Insert the slide (F) into the holes in the right trey (02). Following the order and position indicated in this step. Secure with the use of screw (D) ■...
Page 11 Step 5 Insert the slide (F) into the holes in the left tray (03) following the order and position indicated in this step. Secure with the use of screw (D)
Page 12 Step 6 Fit the drawer support (06) and the rear panel (04) on the legs (08) and (10), use the screw (B) and the Pins (A). When positioning, ensure these set of holes are on the same side.
Page 13 Step 7 Fit the drawer support (06) and the rear panel (04) on the legs (07) and (09), use the screw (B) and the Pins (A). Apply the felt (J) to the table legs.
Page 14 Step 8 Rotate the table to the correct position (top facing up), position and ﬁt the central cross member (05) to the rear panel (04), use the pegs (A) and the screw (B). Fix the screw (e) as indicated to join the drawer support bar (06) to the central crosspiece (05), use the screw (E).
Page 15 Step 9 Fit the top panel to the assembled base, using the dowels (A) and screws (B).
Page 16 Step 10 10.1 - Fix the sides of the smaller drawer (11) on the front panel of the smaller drawer (14) using the screws (C). 10.2 - Fit and slide the bottom of the smaller drawer (13) until it touches the rear face of the front panel (14) 10.3 - Fit and ﬁx the back panel of the smaller drawer (12) using the screw (C), ﬁx the bottom of the drawer (13) with the nail (I) on the back panel (12).
Page 17 Step 11 11.1 - Fix the sides of the bigger drawer (11) on the front panel of the bigger drawer (17) using the screws (C). 11.2 - Fit and slide the bottom of the larger drawer (16) until it touches the rear face of the front panel (17).
Page 18 Step 12 Fit the drawers on the table, ﬁt the plastic lock (H) on the drawers.
Page 19 66lb / 30Kg That’s it! You’ve ﬁnished assembling your LIV DESK WITH DOUBLE DRAWERS!
Page 20 3008209 (Oak), 3008109 (Blanco) Escritorio Liv con Cajones Dobles 1:30 hora.
Page 21 3008209 (Oak) HP#: 3008109-00 3008109 (Blanco) HP#: 3008109-00 3008209 3008109 (Oak) (Blanco) U5756212-01 U5756219-01 PANEL SUPERIOR U5756212-02 U5756219-02 CARRIL LATERAL DERECHO U5756212-03 U5756219-03 CARRIL LATERAL ESQUIERDO CARRIL TRASERO U5756212-04 U5756219-04 CARRIL CENTRAL U5756212-05 U5756219-05 SOPORTE DEL GAVETERO U5756212-06 U5756219-06 PIERNA TRASERA DERECHA...
Page 22 lnstrucciones panel frontal (17). Paso 1 1 Inserte la corredera (G) en los oriﬁcios de la bandeja central (5) Paso 12 siguiendo el orden y posición indicados en este paso. Encajar y ﬁjar el panel trasero del gavetero mayor (15) Mediante el tornillo (c), ﬁjar el fondo gavetero (16) Con el clavo (i) en el panel Paso 2 Ensamble las patas (8) y (10) en el lado izquierdo colgando de la...
Page 23 3008109 (Oak), 3008209 (Blanc) Bureau Liv Avec Double Tiroirs 1:30 h.
Page 24 HP#: 3008109-00 3008209 (Oak) 3008109 (Blanc) HP#: 3008109-00 3008209 3008109 ÉTIQUETTE DESCRIPTION (Oak) (Blanco) DES PIÈCES U5756212-01 U5756219-01 PANNEAU DU HAUT U5756212-02 U5756219-02 VOIE DE CÔTÉ DROIT U5756212-03 U5756219-03 RAIL CÔTÉ GAUCHE U5756212-04 U5756219-04 VOIE ARRIÈRE VOIE CENTRALE U5756212-05 U5756219-05...
Page 25 Instructions Étape 1 Insérez le curseur (G) dans les trous du plateau central (5) en tiroir (16) jusqu'à ce qu'il touche le. Face arrière de la façade (17). suivant l'ordre et la position indiqués dans cette étape. Monter et ﬁxer le panneau arrière du plus grand tiroir (15). A l'aide de Étape 12 Étape 2 Assemblez les pieds (8) et (10) sur le côté...
