Related Manuals for RealRooms Products RR CUBRIX BOOKCASE 3014209RR
Summary of Contents for RealRooms Products RR CUBRIX BOOKCASE 3014209RR

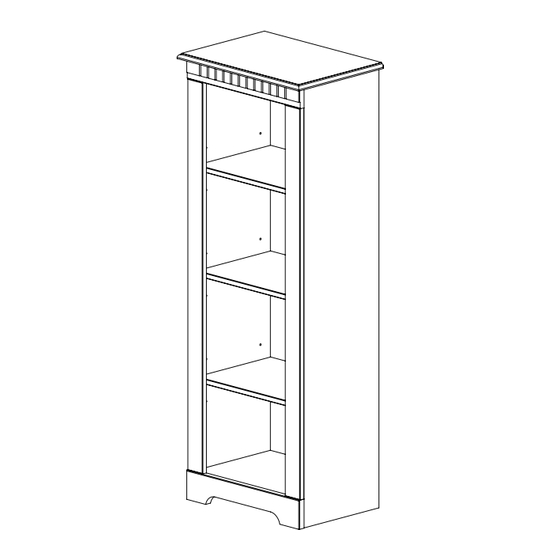

- Page 1 3014209RR (STAIN / WAX), 3014109RR (WHITE/LACQUER) RR CUBRIX BOOKCASE Weight Limit: 22 lbs / 10 kg (per shelf) B343014209RROO ■ CJ 2023/12/07...
- Page 2 Read Before Beginning Assembly Limited 1 year Warranty RealRooms warrants this product to be free from defects in material and • Work in a spacious area and near where the unit will be used, preferably on a carpet, or use a piece of the cardboard packaging to protect your floor workmanship and agrees to remedy any such defect.
- Page 3 PARTS ■...
- Page 4 RIGHT SIDE PANEL TOP PANEL LEFT SIDE PANEL BOTTOM PANEL 1 PC 1 PC 1 PC 1 PC SHELF FRONT LIST TOP FRONT MOLDING FRONT APRON 2 PC 1 PC 1 PC Each part has a unique part number. Please reference the appropriate part number when contacting customer service for replacement parts.
- Page 5 3014209RR 3014109RR (STAIN/WAX) (WHITE/LAQUER) U2105312-23 3014109RR-23 U2105312-24 3014109RR-24 U2105312-25 3014109RR-25 U2105312-26 3014109RR-26 U2105312-27 3014109RR-27 U2105312-28 3014109RR-28 U2105312-29 3014109RR-29 U2105312-30 3014109RR-30 U2105312-31 3014109RR-31 ■...
-
Page 6: Hardware List
HARDWARE LIST 08,0mm x 30mm 08,0mm x 31mm WOOD DOWEL MINIFIX SCREW CONNECTOR SHELF SUPPORT 18 PC 12 PC 14 PC 12 PC 08,3mm x 10mm NAIL 03,5mm x 14mm Ø15mm 04,0mm x 25mm 32 PC SCREW MINIFIX SCREW 1 PC 12 PC 14 PC 04,5mm x 60mm... - Page 7 Step 1 Insert wooden dowels A into the end of the piece (24), (25), (26). Attach minifix screws B into piece (23), (24), (25). Insert connectors C into pieces (23), (24), (25), (26). ■...
- Page 8 Step 2 Attach the bottom panel (26) with the left side (24) and the right side (25) using the minifix G. ■...
- Page 9 Step 3 Attach the top panel (23) with the left side (24) and the right side (25) using the minifix G. ■...
- Page 10 Step 4 Attach the top front molding (28) with the front list left and right (27)right side (27). Attach the front apron (29) with the front list left and right (27)right side (27). ■...
- Page 11 Step 5 Fix the front of the bookcase assembled in the previous step, using the screws H. H H H ■...
- Page 12 Step 6 Insert shelves (30). ■...
- Page 13 Step 7 Attach back panel (31) and fix them using nails J. 90º ■...
- Page 14 Step 8 Fix on the wall with wall strap I using screw F, screw J and washers O. WARNINGS • Unit can tip over causing severe injury or death. • Anchor unit to stud or wall. • Do NOT allow children to climb on unit. •...
- Page 15 Helpful Hints CAUTION: This unit is intended for use only with the products and/or maximum weights indicated. Use with other products and/or products heavier than the maximum weights indicated may result in instability or cause possible injury. • Move your new furniture carefully, with two people lifting and carrying the unit to its new location.
- Page 16 U2105612 (Marron) , U2105619 (Blanco) Libreria Cubrix ■...
- Page 17 3014209RR (MARRON) HP#: TU2105312-01 3014109RR (BLANCO) HP#: TU2105319W-01 3014209RR 3014109RR (MARRON) (BLANCO) U2105312-23 3014109RR-23 LADO IZQUIERDO U2105312-24 3014109RR-24 LADO DERECHO U2105312-25 3014109RR-25 BASE U2105312-26 3014109RR-26 ZÓCALO FRONTAL U2105312-27 3014109RR-27 BASE ZÓCALO FRONTAL U2105312-28 3014109RR-28 ESTANTERÍA U2105312-29 3014109RR-29 PANEL TRASERO U2105312-30 3014109RR-30 PERFIL DEL PANEL TRASERO U2105312-31...
- Page 18 lnstrucciones Paso 1 Inserte tacos de madera A en el extremo de la pieza. (24), (25), (26). Coloque los tornillos minifix B en la pieza (23), (24), (25). Inserte los conectores C en las piezas (23), (24), (25), (26). Paso 2 Fije el panel inferior (26) con el lado izquierdo (24) y el lado derecho (25) mediante el minifix G.
- Page 19 3014209RR (Brun) , 3014109RR (Blanc) Armoire Cubrix 2 portes...
-
Page 20: Liste Des Pièces
3014209RR (BRUN ) HP#: TU2105312-01 HP#: TU2105319W-01 3014109RR (BLANC) LISTE DES PIÈCES 3014209RR 3014109RR ÉTIQUETTE DESCRIPTION (BRUN) (BLANC) DES PIÈCES U2105312-23 3014109RR-23 U2105312-24 3014109RR-24 PANNEAU LATÉRAL GAUCHE U2105312-25 3014109RR-25 PANNEAU LATÉRAL DROITE BASE U2105312-26 3014109RR-26 U2105312-27 3014109RR-27 SOCLE SUPÉRIEUR AVANT U2105312-28 3014109RR-28 BASE FRONTALE SOCLE... - Page 21 Instructions Etape 1 Insérez les chevilles en bois A à l'extrémité de la pièce (24), (25), (26). Placer les vis minifix B sur la pièce (23), (24), (25). Insérez les connecteurs C dans les pièces (23), (24), (25), (26). Etape 2 Fixez le panneau inférieur (26) avec le côté gauche (24) et le côté...
