RealRooms Products 3019209RR Manual

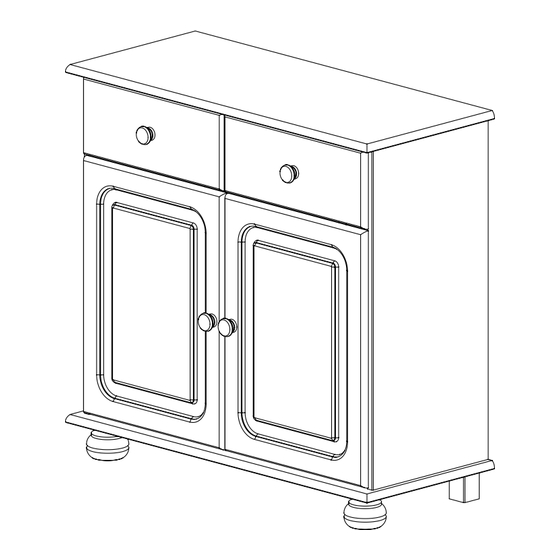

Chester sideboard 2d/1dr
Hide thumbs

Advertisement

Table of Contents

3019209RR (Stain / Wax), 3019009RR (Havana / Brown),
3019109RR (White / Lacquer), 3019309RR (White / Honey)
CHESTER SIDEBOARD 2D/1DR
Weight Limit: 66 lbs / 30 kg
B343019209RR00 - 147552
CJ 2023/10/13
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3019209RR and is the answer not in the manual?

Questions and answers

Related Manuals for RealRooms Products 3019209RR

Summary of Contents for RealRooms Products 3019209RR

  • Page 1 3019209RR (Stain / Wax), 3019009RR (Havana / Brown), 3019109RR (White / Lacquer), 3019309RR (White / Honey) CHESTER SIDEBOARD 2D/1DR Weight Limit: 66 lbs / 30 kg B343019209RR00 - 147552 CJ 2023/10/13...

  • Page 2: Limited 1-Year Warranty

    Limited 1 year Warranty Read Before Beginning Assembly RealRoomswarrants this product to be free from defects in material and Work in a spacious area and near where the unit will be used, preferably on a workmanship and agrees to remedy any such defect. This warranty covers one carpet, or use a piece of the cardboard packaging to protect your floor and year from the date of original purchase from authorized retailers.
  • Page 3 PARTS ■...
  • Page 4 RIGHT SIDE LEFT SIDE BACK FOOT FRONT FOOT 1 PC 1 PC 2 PC 2 PC BACK PANEL BIGGER SHELF FRONT THE LARGER DRAWER PLASTIC H PROFILE 2 PC 1 PC 1 PC 1 PC LEFT SIDE OF DRAWER RIGHT SIDE DRAWER BOTTOM OF BIGGER DRAWER BACK OF BIGGER DRAWER 1 PC...
  • Page 5 BOTTOM PANEL DOOR DOOR REINFORCEMENT TOP PANEL 1 PC 2 PC 2 PC 1 PC Each part has a unique part number. Please reference the appropriate part number when contacting customer service for replacement parts. Before throwing any packaging, please verify all contents and make sure you have received all the parts listed above!
  • Page 6 3019209RR 3019009RR 3019109RR 3019309RR (Stain/Wax) (Havana/Brown) (White/Lacquer) (White/Honey) 3019209RR-02 3019009RR-02 3019109RR-02 3019309RR-02 3019209RR-03 3019009RR-03 3019109RR-03 3019309RR-03 3019209RR-06 3019009RR-06 3019109RR-06 3019309RR-06 3019209RR-07 3019009RR-07 3019109RR-07 3019309RR-07 3019209RR-08 3019009RR-08 3019109RR-08 3019309RR-08 3019209RR-09 3019009RR-09 3019109RR-09 3019309RR-09 3019209RR-10 3019009RR-10 3019109RR-10 3019309RR-10 3019209RR-11 3019009RR-11 3019109RR-11 3019309RR-11...

  • Page 7: Hardware List

    HARDWARE LIST 8mm x 30mm 8,0mm x 31mm 3,5mm x 14mm SHELF SUPPORT SCREW WOOD DOWEL MINIFIX SCREW 04 PC 28 PC 12 PC 08 PC Ø15mm 4,0mm x 40mm DRAWER SLIDERS DRAWER SLIDERS MINIFIX SCREW 01 PC 01 PC 08 PC 10 PC 3,5mm x 30mm...
  • Page 8 HARDWARE LIST 4,5mm x 60mm 46x24x16 mm HINGE L-BRACKET SCREW 04 PC 01 PC 01 PC 3019209RR (Stain/Wax) HP#: TU3005212-01 3019009RR (Hanvana/Brown) 3019109RR (White/lacquer) HP#: TU3005219W-01 3019309RR (White/Honey)
  • Page 9 Step 1 Insert wooden dowels A into the end of the piece (02), (03), (12), (13). Attach minifix screws B into pieces (11), (25). Insert shelf support C into pieces (02), (03).
  • Page 10 Step 2 Attach the slides F and E to the side panels (02) (03). Use the screw D...
  • Page 11 Step 3 Attach the two sides (02) (03) to the top (25), using the minifix G...
  • Page 12 Step 4 Attach the bottom (26) with the left side (02), right side (03), using the screw H.
  • Page 13 Step 5 Attach the front foots (07) back foots (06), to the botton (26) using the screw H.
  • Page 14 Step 6 Attach the back panel (08) with the left side (02), using the nail I. Using the plastic H profile (09) to join the two back panels. Attach the back panel (08) with the right side (03), using the nail I. 90º...
  • Page 15 Step 7 Place the shelves in the indicated position, sliding them above the shelf supports. Glue the J to the front shelfs. molded silicone...
  • Page 16 Step 8 Attach the L-bracket O with the wall, using screw P. Attach the L-bracket from the bottom of the top panel, usind screw D. WARNINGS • Unit can tip over causing severe injury or death. • Anchor unit to stud or wall. •...
  • Page 17 Step 9 9.1 - Fit the front of the larger drawer (11) to the right (13) and left (12) sides of the drawer. 9.2 - Fit the bottom of the bigger drawer (14) by sliding it down the track until the end of the travel.
  • Page 18 Step 10 Fit the drawers on the sideboard and adjust the height as indicated if necessary.
  • Page 19 Step 11 Attach hinges N to the doors (17) using screws Attach door reinforcement (18) to the doors (17) using screws M.
  • Page 20 Step 14 Attach the doors (17) on the right (03) and left (02) sides. Use the screw D. Attach the handles L in the doors. using the screws K...

  • Page 21: Helpful Hints

    CAUTION: This unit is intended for use only with the products and/or maximum Helpful Hints weights indicated. Use with other products and/or products heavier than the maximum weights indicated may result in instability or cause possible injury. • Move your new furniture carefully, with two people lifting and carrying the unit to its new location.
  • Page 22 3021009RR (Marron Rico), 3021109RR (Blanco), 3021209RR (Marron), 3021309RR (Miel) Aparador Chester 2D/1DR 1:30 hora.
  • Page 23 3021209RR (Stain/Wax) HP#: TU3005212-01 3021009RR (Havana/Brown) 3021109RR (White/Lacquer) HP#: TU3005219W-01 3021309RR (White/Honey) 3019209RR 3019009RR 3019109RR 3019309RR (Stain/Wax) (Havana/Brown) (White/Lacquer) (White/Horney) 3019209RR-02 3019009RR-02 3019109RR-02 3019309RR-02 PANEL DERECHO 3019209RR-03 3019009RR-03 3019109RR-03 3019309RR-03 PANEL IZQUIERDO 3019209RR-06 3019009RR-06 3019109RR-06 3019309RR-06 PIE TRASERO 3019209RR-07 3019009RR-07...
  • Page 24 lnstrucciones Paso 12 Fixe as portas (17) nos lados direito (03) e esquerdo (02) Paso 1 Introducir tacos de madera A en el extremo de la pieza (02), (03), encaixando a dobradiça. Use o parafuso D. (12), (13). Fixe as maçanetas L nas portas. usando os parafusos K Coloque los tornillos minifix B en las piezas (11), (19), (25).
  • Page 25 3021009RR (Brun Riche), 3021109RR (Blanc), 3021209RR (Brun), 3021309RR (Miel) Buffet Chester 2D 1DR 1:30 h.

  • Page 26: Liste Des Pièces

    3019209RR (Brun) HP#: TU3005212-01 3019009RR (Brun Riche) 3019109RR (Blanc) HP#: TU3005219W-01 3019309RR (Miel) LISTE DES PIÈCES 3019209RR 3019009RR 3019109RR 3019309RR (Stain/Wax) (Havana/Brown) (White/Lacquer) (White/Horney) 3019209RR-02 3019009RR-02 3019109RR-02 3019309RR-02 PANNEAU DROIT 3019209RR-03 3019009RR-03 3019109RR-03 3019309RR-03 PANNEAU GAUCHE 3019209RR-06 3019009RR-06 3019109RR-06 3019309RR-06 PIED ARRIÈRE...
  • Page 27 Instructions Paso 12 Fixez les ports (17) sur les côtés direct (03) et gauche (02), en Paso 1 Insérez les chevilles en bois A à l'extrémité du gâteau (02), (03), (12), ajustant la dobradiça. Utilisez du parafuso D. (13). Fixé comme ancres dans les ports. en utilisant des parafuses K. Placer les vis minifix B sur les pièces (11), (19), (25).
