RealRooms Products RH LEVA 3005109 Instruction Booklet

Entertaiment console/tv stand
Hide thumbs

Advertisement

Quick Links

Download this manual
3005109

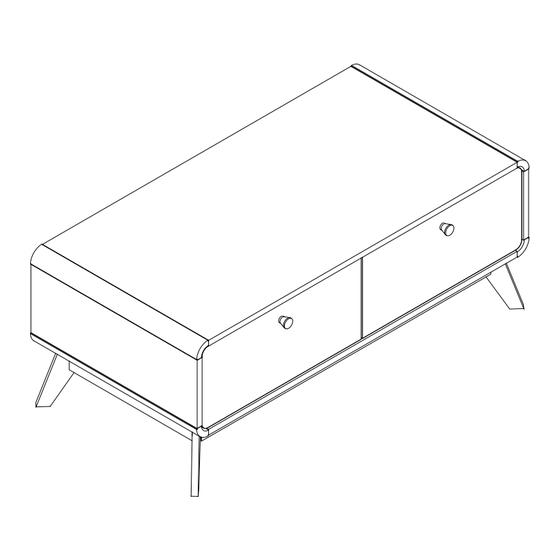

RH LEVA ENTERTAIMENT CONSOLE
/ TV STAND
50.7 lbs / 23 kg
PB 2023/10/16
B34300510900-9979

Advertisement

loading
Need help?

Need help?

Do you have a question about the RH LEVA 3005109 and is the answer not in the manual?

Questions and answers

Related Manuals for RealRooms Products RH LEVA 3005109

Summary of Contents for RealRooms Products RH LEVA 3005109

  • Page 1 3005109 RH LEVA ENTERTAIMENT CONSOLE / TV STAND 50.7 lbs / 23 kg PB 2023/10/16 B34300510900-9979...
  • Page 4 SIDE PANEL LEFT SIDE PANEL RIGHT CENTER PANEL TOP PANEL 1 PC 1 PC 1 PC 1 PC BOTTOM PANEL DRAWER FRONT LEFT DRAWER FRONT RIGHT DRAWER SIDE LEFT 1 PC 1 PC 1 PC 2 PC DRAWER SUPPORT LEG PANEL DRAWER SIDE RIGHT DRAWER BACK 2 PC...
  • Page 5 LEG FRAME PANEL LEG FRAME SIDE PANEL LEG FRAME CENTER PANEL BACKPLY PANEL 2 PC 2 PC 2 PC 2 PC DRAWER BOTTOM PANEL SIDE PROFILE PANEL SIDE PROFILE PANEL 2 PC 2 PC 2 PC 3005109RR 3005109RR (White/White) (White/White) U5650251-A U5650251-K U5650251-B...
  • Page 6 20mm x 5mm 12mm x 15mm 9mm x 15mm 6mm x 30mm MINIFIX WOOD DOWEL 50 PC 48 PC 42 PC 8 PC 350 mm 6.3 x 40mm 3.5mm x 15mm 3.1mm x 20mm SCREW DRAWER SLIDE SCREW SCREW 8 PC 2 PC 2 SET 16 PC...
  • Page 7 4mm x 22mm WOODEN KNOB HANDLE BACKPLY STOPPER ALLEN KEY M4 SCREW 2 PC 8 PC 1 PC 2 PC HP# : TU5650251-01 3005109 (White/White)
  • Page 8 Insert the dowel (4) on each panel as shown on the left.
  • Page 10 Attached drawer side panels H & I to drawer back (J) and then tighten it with screw (10).
  • Page 11 Insert drawer bottom Z between drawer side H & I then continue with drawer support K.
  • Page 12 Insert cam (3) in each panel and tighten all of it accordingly.
  • Page 13 Positioning the Drawer slide (6) make sure the drawer slide roller is facing on the drawer back as shown on the left then tighten it with screw (8).
  • Page 14 Use screw (15) and wooden knob handle (14) then tighten it using a screwdriver.
  • Page 15 Attach center panel C to bottom panel E then use screw (5) to tighten both of the panel with allen key (16).
  • Page 16 Insert cam (2) in each panel and tighten all of it accordingly.
  • Page 17 Insert cam (2) in each panel and tighten all of it accordingly.
  • Page 18 Attached the drawer slide (6) and tighten it with screw (11) make sure to position the drawer slide as shown. (CL) (CR) (CL) (CR)
  • Page 19 Insert cam (2) in each panel and tighten all of it accordingly.
  • Page 20 Insert cam (2) in each panel and tighten all of it accordingly.
  • Page 21 Insert cam (2) in each panel and tighten all of it accordingly.
  • Page 22 Attach the leg frame M,N and O to bottom panel...
  • Page 23 Insert cam (2) in each panel and tighten all of it accordingly.
  • Page 24 Attached the leg panel L between leg frame M and N to bottom panel E.
  • Page 25 Positioning the table corner bracket (12) at the leg frame and tighten the screw (8) & (9) and make sure position the screw according to the step display.
  • Page 26 Insert backply Y berween panel A,B and C as shown.
  • Page 27 Insert cam (2) in each panel and tighten all of it accordingly.
  • Page 28 Insert backply stopper (13) as shown and use screw (7) to tighten it.
  • Page 29 Insert the drawer one by one and make sure the roller is on each side of the drawer slide.

  • Page 30: Helpful Hints

    Helpful Hints CAUTION: This unit is intended for use only with the products and/or maximum weights indicated. Use with other products and/or products heavier than the maximum weights indicated may result in instability or cause possible injury. Move your new furniture carefully, with two people lifting and carrying the unit to its new location.
  • Page 31 3005209 (Nuez/Nuez), 3005009RR (Oak/Negro) 3005809RR (Oak/Blanco), 3005709RR (Nuez/Blanco) 3005109RR (Blanco/Blanco) MUEBLE TV CONSOLA RH LEVA Realrooms!
  • Page 32 HP# : TU5650251-01 3005109 (White/White) 3005109 (White/While) Panel lateral izquierdo U5650251-A Panel lateral derecho U5650251-B Panel central U5650251-C Panel superior U5650251-D Panel inferior U5650251-E Cajón frontal izquierdo U5650251-F Cajón frontal derecho U5650251-G Lado del cajón izquierdo U5650251-H Lado derecho del cajón U5650251-I Fondo del cajón U5650251-J...
  • Page 33 Paso 1 Para cada ori cio con clavija (6), (7) y (8), coloque una pequeña Paso 15 Inserte la capa posterior (N) entre el panel (C) y (D). gota de pegamento (19), luego procese para insertar una clavija. Paso 16 Inserte la leva (10) en cada panel (C) y (D) y apriete todo Paso 2 Insertar el mini x (9) y luego apretarlo con un destornillador.
  • Page 34 3005209 (Noyer/Noyer), 3005009RR (Oak/Noir) 3005809RR (Oak/Blanc), 3005709RR (Noyer/Blanc) 3005109RR (blanc/blanc) MUEBLE TV CONSOLA RH LEVA Realrooms!
  • Page 35 HP# : TU5650251-01 3005109 (White/White) 3005109 (White/While) Panneau latéral gauche U5650251-A Panneau latéral droit U5650251-B Panneau central U5650251-C Panneau du haut U5650251-D Panneau du bas U5650251-E Tiroir avant gauche U5650251-F Tiroir avant droit U5650251-G Côté tiroir gauche U5650251-H Côté droit du tiroir U5650251-I Fond de tiroir U5650251-J...
  • Page 36 Étape 1 Étape 15 Pour chaque trou d'épingle (6), (7) et (8), placez un petit Insérez la couche arrière (N) entre les panneaux (C) et (D). goutte de colle (19), puis procédez pour insérer une cheville. Étape 16 Insérez la came (10) dans chaque panneau (C) et (D) et serrez le tout Étape 2 Insérez le mini x (9) puis serrez-le à...
