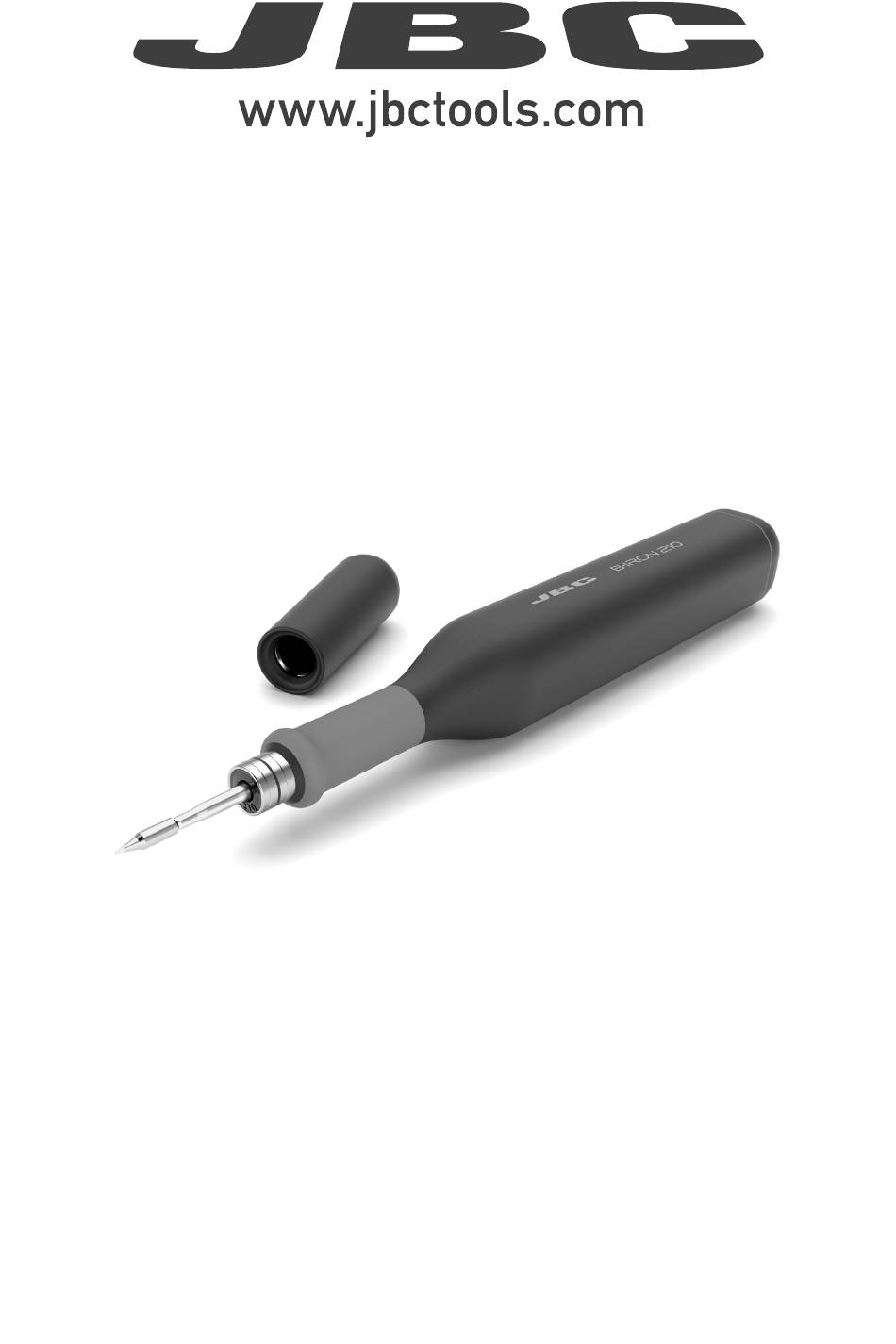

- Page 1 INSTRUCTION MANUAL B210 Precision Handle for B·IRON...
-
Page 2: Packing List
This manual corresponds to the following reference: B210-C Packing List The following items are included: Precision Handle for B·IRON ..... 1 unit Manual ............1 unit Ref. 0030947 Includes Safety Cap for B115/210 Handles (ref. 0031596) Cartridge not included, sold separately Please read this manual and its safety guidelines thoroughly before using the product. -
Page 3: Connections Example
Connections Example 130 mm 130 mm PDS * 100 mm Portable Display 7” for B·IRON 80 mm 60 mm 50 mm B210 B115/B210 Charging Base Precision Handle for B·IRON 40 mm Safety Cap Holder C210 * Cartridge USB Connector Range... -
Page 4: Quick Start
Quick Start Turning on the Portable Display Power Button Turn on the portable display by holding down the power button and then open the B·IRON app*: * Note: The app can also be downloaded to your own devices. To know how, see section “Installing and Updating the B·IRON App”. - Page 5 It will take Mark aprox. 60 min for B210, aprox. 30 min for B115 and aprox. 40 min for BP115. For more information on how to change cartridges and the use of the cartridge exchanger, see section...
- Page 6 Status Lightband Detail no color power off Safety Cap and Cap Holder Thanks to the safety cap for B210 and B115 handles, tools can be safely transported even with a cartridge inserted. Screw When the cap is placed onto the tool, the...
-
Page 7: Operation
- color gris 200 mm Operation 130 mm 130 mm The JBC Most Efficient Soldering System MENU JBC#1 JBC#1 MENU This revolutionary technology can recover tip temperature extremely quickly. This allows the user to MENU JBC#1 WORK work at a lower temperature. - Page 8 Cartridge Exchanger Cartridge Exchanger The cartridge exchanger saves time and allows to change cartridges safely without switching the The cartridge exchanger saves time and allows to change cartridges safely without switching the tool off. tool off. 1. Removing Cartridges 1. Removing Cartridges 2.
-
Page 9: Compatible Cartridges
Push the cartridges inside the handle until the the reference mark is aligned with the edge reference ring rests against the sealing plug. B210 Handle works with C210 Cartridges. the reference mark is aligned with the edge reference ring rests against the sealing plug. - Page 10 Firmly slide the grip onto the handle until it locks into place. B210 B0001 Grips for B115/B210 Handles Precision Handle for B·iRON Replacing Sealing Plugs The sealing plug prevents undesirable flux vapors or particles from entering the handle. Its usage is highly recommended for intensive applications when soldering is exposed to FOD environments or for applications where the soldering iron works close to a vertical position.
- Page 11 para manuales - color gris 200 mm 130 mm 130 mm 1. Removing Sealing Plug Introduce a small shaft or screwdriver, not deeper than 8 mm, lift and pull the sealing plug. 100 mm Never use a cartridge to do this operation. 80 mm 60 mm 2.
-
Page 12: Updating The Firmware
50 ºC 350ºC 350ºC 350ºC 10 seconds/div 10 seconds/div 10 seconds/div - Check if there is a folder named “JBC” in the internal storage of the Android device used as B·IRON Tool Tool Tool V1.2 V1.2 V1.2 display. If it doesn’t exist, create it. -
Page 13: Maintenance
- Do not use liquids such as alcohol, thinner or benzene to clean the tablet. 60 mm - Repairs should only be performed by a JBC authorized technical service. 50 mm 40 mm... - Page 14 Safety It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - Do not use the units for any purpose other than soldering or rework. Incorrect use may cause a fire. - The power cord must be plugged into approved bases. When unplugging it, hold the plug, not the wire. - Do not attempt to dismantle or open the housing of the tool as it may cause damage.
-
Page 15: Safety - Battery
60 mm - In the event of damage, leakage, or overheating of the batteries, discontinue use immediately and contact customer support or JBC technical service facility. 50 mm - Dispose of devices with batteries inside, responsibly according to regulations. They must be disposed of in accordance with local regulations so that they can be recycled. -
Page 16: Specifications
8.66 x 2.95 x 1.18 in / 0.32 lb Complies with CE standards. Not grounded device. No ESD discharge feature. Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse.
