Summary of Contents for jbc BT-A

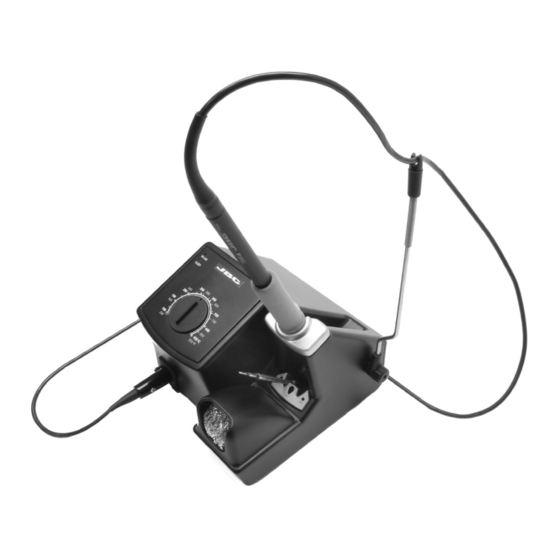

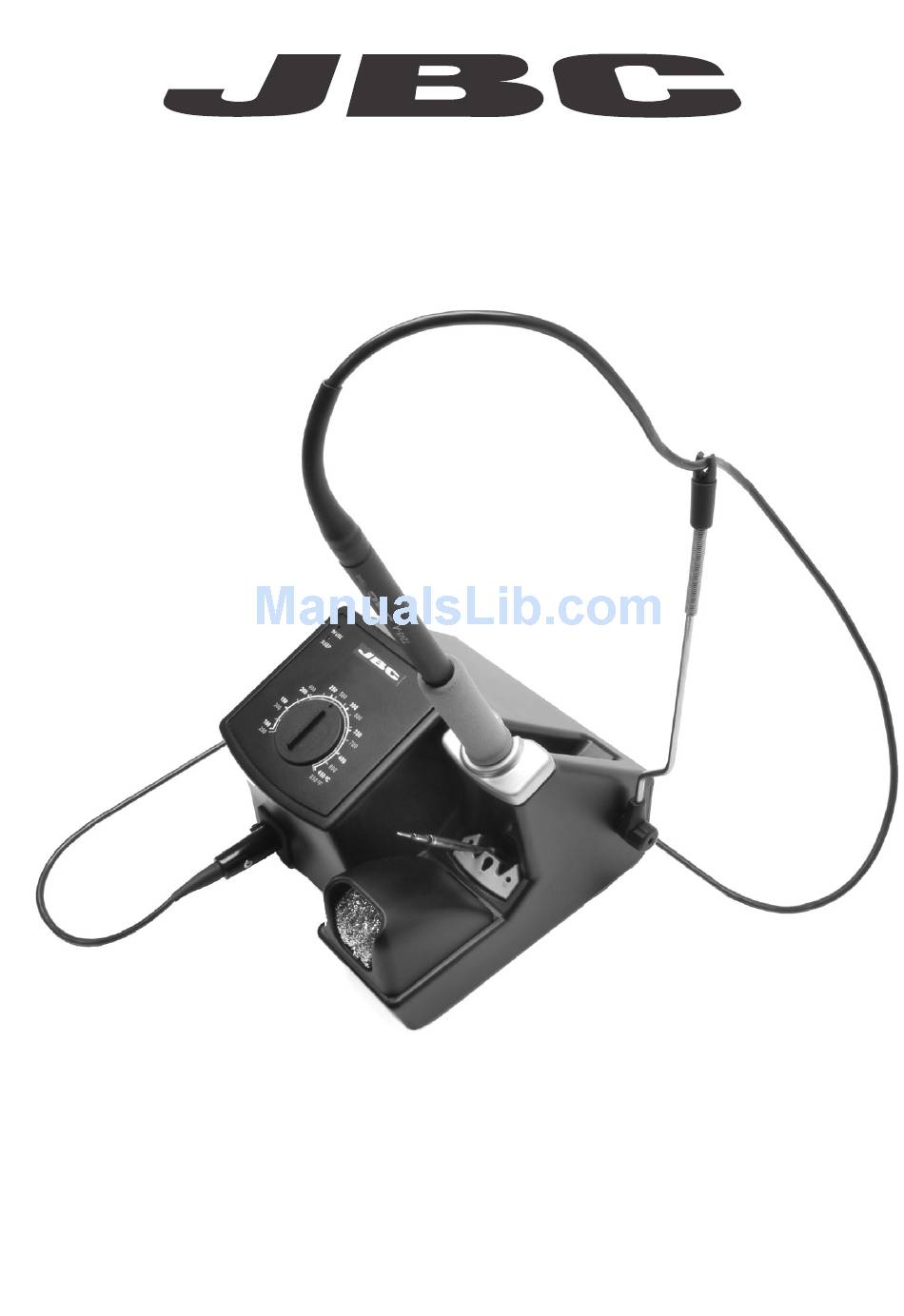

- Page 1 Soldering Station Ref. BT-A...
- Page 2 Ref. C245906 (x1) Quick Tip Changer 0009401 (230V) C245907 (x1) General Purpose Handle Ref. T245-A Brass Wool ..........1 unit Manual ............1 unit Ref. CL6210 Ref. 0008865 w w w.jbctools.com Main switch Fuse Equipotential connection Power Socket Soldering Station Ref. BT-A...
- Page 3 w w w.jbctools.com Compatible Handles For precision use Works with C210 Cartridge range For general use Works with C245 Cartridge range Precision Purpose Handle Ref. T210-A General Purpose Handle Ref. T245-A Soft foam (Ref. 0016057) Blue Precision Handle Ref. T210-PA Blue grip to easily distinguish it from other handles Blue Handle Blue grip to easily distinguish it from other handles...
- Page 4 It is necessary to connect the console AC with (- - -). software revision 7.0 or later to the BT in order to configure it (consult JBC for console software Mark - If the dial is at the prefixed temperature, the updates).
- Page 5 Children must not play with the appliance. - Maintenance must not be carried out by children unless supervised. - Replace any defective or damaged pieces. Use original JBC spare parts only. - Repairs should only be performed by a JBC authorized technical service.
- Page 6 w w w.jbctools.com Exploded View...
-
Page 7: Specifications
- Temperature range: 100-450°C (200-850 ºF) (±5%) Complies with CE standards ESD protected housing “skin effect” Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear due to use or mis-use.
