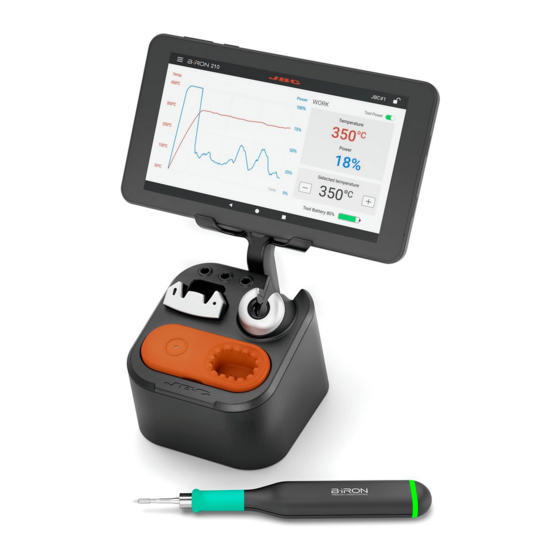

Precision battery soldering station
Hide thumbs Also See for B-iRON 210:

Advertisement

Quick Links

Download this manual
INSTRUCTION MANUAL
B·iRON 210
Precision Battery
Soldering Station

Advertisement

loading
Need help?

Need help?

Do you have a question about the B-iRON 210 and is the answer not in the manual?

Questions and answers

Related Manuals for jbc B-iRON 210

Summary of Contents for jbc B-iRON 210

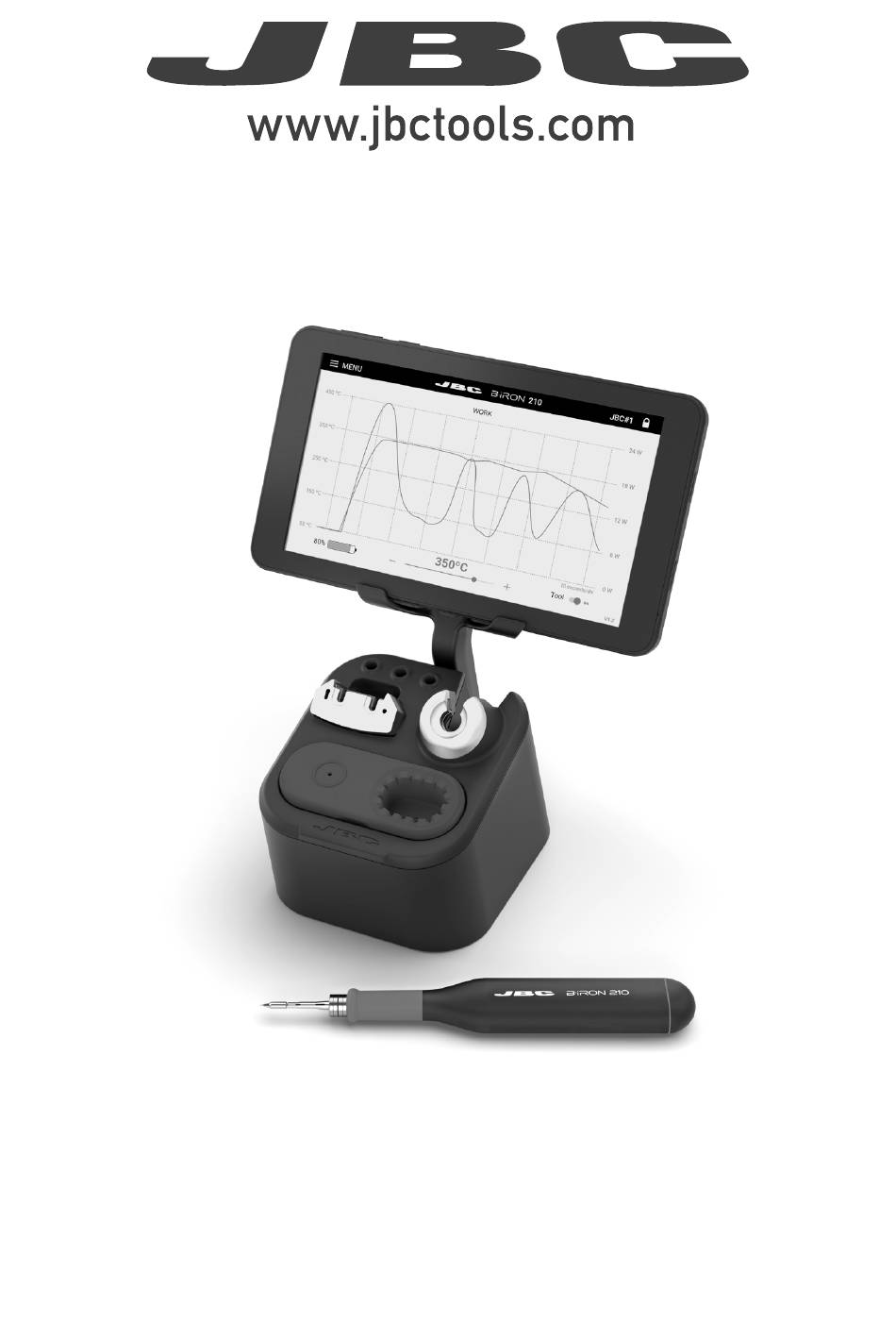

  • Page 1 INSTRUCTION MANUAL B·iRON 210 Precision Battery Soldering Station...

  • Page 2: Table Of Contents

    This manual corresponds to the following references: Console included*: Console not included*: BI210UA BI210UQA 120 V - N. America, Taiwan 120 V - N. America, Taiwan BI210IA BI210IQA 230 V - India 230 V - India BI210A BI210QA 230 V - Europe 230 V - Europe BI210KA BI210KQA...

  • Page 3: B·iron Tool

    para manuales - color gris 200 mm Features and Connections 130 mm 130 mm Stand for B210 Precision B·iRON Tool Console Support 100 mm Cartridge Storage 80 mm Cartridge Excwhanger Tool Holder and Charger Brass Wool (inside) 60 mm Antisplash Membrane Wiper 50 mm 40 mm...
  • Page 4 Quick Start 1. Connection Connect the stand to the mains (100 - 240 V). 2. Cartridge Insertion and Charging Insert a cartridge into the tool (1) and place it into the charger on the stand (2). Note: Charge the tool completely (30 min) before using it for the first time.
  • Page 5 The work screen shows the graph of the current tip temperature and the power supplied to the tip by moving the graph permantely to the left. Application Menu Tool Status Connected Tool Temperature and Power Grafi cs JBC#1 MENU MENU JBC#1 MENU WORK WORK 24 W 100% 450 ºC...
  • Page 6 Operation The JBC Most Efficient Soldering System MENU JBC#1 MENU JBC#1 This revolutionary technology is able to recover tip temperature extremely quickly. This allows the WORK WORK user to work at a lower temperature. 24 W 100% 450 ºC 24 W 100% 450 ºC...
  • Page 7 - color gris 200 mm JBC#1 MENU MENU JBC#1 MENU WORK WORK 450 ºC 24 W 100% 24 W 100% 450 ºC 450 ºC 18 W 100% 350 ºC 18 W 100% 350 ºC 350 ºC Graphics 130 mm...

  • Page 8: Brass Wool

    Includes a temperature-resistant wiper for removing excess solder by gently tapping or wiping the cartridge tip. If the tip is very dirty, JBC recommends first cleaning it with the wiper to remove excess solder and then with Wiper the brass wool.
  • Page 9 para manuales - color gris 200 mm Replacing Brass Wool 130 mm 130 mm 1. Lifting 2. Replacing Space 100 mm 80 mm 60 mm Lift and remove the antisplash membrane. Replace the brass wool with a new one. Make sure that the brass wool is on the far left and that 50 mm there is space for the wiper on the right.
  • Page 10 Cartridge Exchanger Save time and change cartridges safely without switching the station off. 1. Removing 2. Inserting 3. Fixing Place the handpiece in the Place the handpiece on top of Use the holes for fixing the extractor and pull to remove the new cartridge and press cartridge.
  • Page 11 Use pliers if necessary. 40 mm Menu Settings The B·iRON Console offers an intuitive user interface, which provides quick access to station parameters. JBC#1 MENU Return to Work JBC#1 24 W 100% Tool ID Lock Parameters...
  • Page 12 Parameters Parameter Description Tool ID Allows to change the tool identifier. Allows to change the PIN Hibernation Delay Set hibernation delay from 5 to 15 sec. The countdown starts when no movement is detected. Sleep Mode / Set sleep mode ON/OFF. The tip temperature will drop to the selected Sleep Temperature sleep temperature while charching.

  • Page 13: Manual

    12 W 100 mm - On the console/device notification bar at the top, open “USB Connection Settings” and select “MTP”. - On the PC copy the downloaded file to “IT706/internal share storage/JBC”. 80 mm 350ºC - Once copying is finished, disconnect the console/device from the PC.
  • Page 14 - Maintain the tip surface clean and tinned prior to storage in order to avoid tip oxidation. Rusty and dirty surfaces reduce heat transfer to the solder joint. - Do not use liquid such as alcohol, thinner or benzene to clean the console. - Repairs should only be performed by a JBC authorized technical service. Clean periodically...
  • Page 15 para manuales - color gris 200 mm Safety 130 mm 130 mm It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. 100 mm - Do not use the units for any purpose other than soldering or rework. Incorrect use may cause a fire. - The power cord must be plugged into approved bases.
  • Page 16 Notes...
  • Page 17 para manuales - color gris 200 mm Notes 130 mm 130 mm 100 mm 80 mm 60 mm 50 mm 40 mm...
  • Page 19 para manuales - color gris 200 mm Specifications 130 mm 130 mm B·iRON 210 Precision Battery Soldering Station 100 mm With Console Without Console Ref.: BI210UA BI210UQA 120 V - N. America 120 V - N. America, Taiwan Ref.: BI210IA BI210IQA 230 V - India 230 V - India...
  • Page 20 In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased. Get 1 extra year JBC warranty by registering here: https://www.jbctools.com/productregistration/ within 30 days of purchase. This product should not be thrown in the garbage.

This manual is also suitable for:

Bi210uaBi210iaBi210aBi210kaBi210haBi210ja ... Show all
