  • Page 1 INSTRUCTION MANUAL...

  • Page 2: Packing List

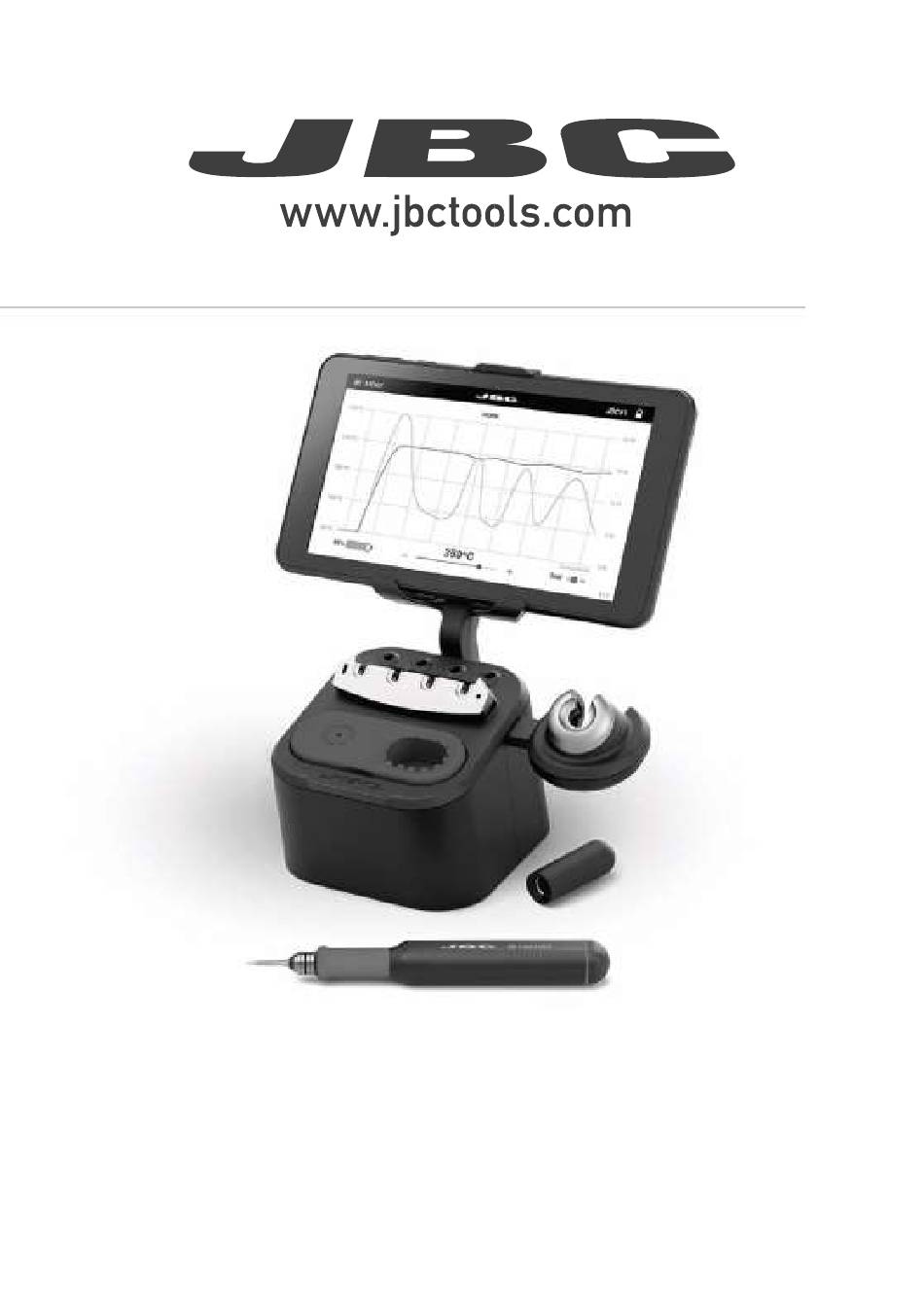

    B·IRON NANO Battery-Powered Nano Soldering Station This manual corresponds to the following references: BIN-5A* * Depending on customer requirements, various - with Portable Display power cords are available, suitable for: BIN-5QA* - without Portable Display 120V - N. America / Taiwan 230V - India / Europe / United Kingdom Packing List The following items are included:...
  • Page 3 Safety Cap + OB5000 Sealing Plug + B1510 Grip + fitters. ** Not included in ref. BIN-5QA. Please read this manual and its safety guidelines thoroughly before using the product. Power Cord * ..........1 unit Portable Display 7” for B·IRON ** ..1 unit Ref.

  • Page 4: Features And Connections

    Features and Connections PDS* Portable Display 7” for B·IRON Cartridge Exchanger Cartridge Holder H2465 CL0300 Right-Side Charging- Brass Wool Holder for B·IRON for B·IRON Handles Charging-Base ( inside) CL0301 Wiper for B·IRON Charging-Base Charging-Base for B·IRON * Not included in ref. BIN-5QA...
  • Page 5 Features and Connections PDS * Portable Display 7” for B·IRON B·IRON Display Holder 5” to 7” Ref. 0030723 B·NANO Display Support Nano Handle for B·IRON Safety Cap Holder C115 Cartridge Range USB Connector Power Socket B1596 Safety Cap for B·IRON Handles * Not included in ref.

  • Page 6: Station Setup

    Once the display holder is at the right height, Station Setup tighten the fixing knob completely to fix the 1. Display Holder Assembling display in place. 2. Display Holder Setting Insert the thin end of the display holder into the upper area of the rear rail of the charging base (1).
  • Page 7 If needed, the display can be connected to the USB port (5) with the provided USB cable to keep it charging while working. 5. Turning on the Portable Display Power Button Turn on the display by holding down the power button for a while and then open the B·IRON app*: * Note: The app can also be downloaded to your own devices.
  • Page 8 for a proper connection.a proper conn cti . completely before using it for the first time. A full charge takes: -30 min for B·100 Ring Mark -60 min for B·500 -30 min for B·NANO For more information on how to change cartridges and the use of the cartridge exchanger, see section “Cartridge Exchanger and Cartridge Holder”.
  • Page 9 Status Lightband The status lightband on the tool indicates its status Color Tool Status (see table on the right). Green More than 50% charged Orange Between 20% and 50% charged Safety Cap Less than 20% charged Green Charging (more than blinking 50% charged) Orange...

  • Page 10: Operation

    There is space for two caps. If desired, the cap holder can be detached by removing the screw (1). Operation JBC’s Most Efficient Soldering System Cap Holders This revolutionary technology recovers temperature extremely quickly.
  • Page 11 When the tool is lifted from the While the tool remains in the If Sleep Mode is activated (see tool holder, the tip of the tool holder, it charges and the section “Settings”), upon assembled cartridge heats up tip gradually cools down to placing the tool in its holder, selected working...
  • Page 12 tool is turned off, it will remain connected up to 5 minutes to the station but will not heat up the cartridge). Tool Power Switch Workscreen The workscreen shows a graph of the tip temperature and power supplied to the tip updated in real time.
  • Page 13 The graph can be moved to the left and right by swiping the touch screen sideways with one finger. Working Temperature Modifi cation The working temperature can be modifi ed using the slider below the graph (± 5 ºC / ± 10 ºF). Workscreen Connected Tool and Tool Selector...
  • Page 14 Working with Two Tools When working with two tools, to switch between the two graphs, tap on the tool selector (upper-right corner of the display) and select the desired tool from the drop-down menu. It is also possible to alternate both graphs by simply lifting one tool or the other from the tool holder. The display will automatically show the graph and information of the tool in use.

  • Page 15: Compatible Cartridges

    C115 Cartridge Retention Area C115 Cartridge The holding area of C115 Cartridges is delimited by the two rings at the cartridge shaft (x). 3. Fixing Cartridges Depending on the shape of the tip, use the holes on the sides of the cartridge exchanger to properly adjust the cartridge.

  • Page 16: Tip Cleaner

    Select the option that best suits your needs and improve the tip thermal transfer. Wiper for B·IRON Charging-Base the cartridge tip on it. Wiper If the tip is very dirty, JBC recommends cleaning it first with the wiper to remove excess solder and then with the brass wool.
  • Page 17 Menu Menu - No Tools Connected Menu - Tool Connected Before any tool is connected to the station or Once at least one tool has been linked, the after the last tool has been disconnected, the menu expands and shows more options. menu offers these options.
  • Page 18 Locked Unlocked ºC ºF Settings Parameter Description Tool ID Allows modifying the tool identifier. Lock parameters Allows locking the parameters of the station using a four-digit code. The default code is 0105, but a new code can be set by simply entering some other four digits of choice when locking the parameters.
  • Page 19 Locate Tool Tool light blinks in blue color for five seconds. Documents User manuals related to the station or to the tools can be consulted in this section or on JBC’s website: www.jbctools.com Light/Dark Theme Allows the user to switch between dark and light display modes.
  • Page 20 - Connect the JBC display via cable to PC and copy the downloaded file to the internal shared storage. - Execute installer in the display. User’s smartphone or tablet (Android/iOS) Note: Internet connection is required to download the app. Installing or updating - Go to the App Store or Play Store (depending on your operating system).
  • Page 21 4. Access the B·IRON app and select the tool you want to update. Then tap on “Menu” and select “Update”. 5.2. If “No new version available” is displayed 5.1. If an update file with a newer version (1) than the one (4), no update is possible already installed is displayed, tap “Update”...
  • Page 22 Display Holder B·IRON Display Holder 10”-13” Ref. 0031246 In addition to the display holder supplied with the B·IRON station, JBC offers a holder for tablet sizes between 10” to 13”. Assemble the display holder at the rear part of the charging base.
  • Page 23 B·100* B·100 Light Handle Light Handle for B·IRON Safety Cap Perfect for applications in laboratories and/or performing individual soldering jobs. Its technical performance has enabled a comfortable and lightweight design. B·100 works with C210 Cartridges and performs up to 100 SMD soldering joints per * Cartridge not included.
  • Page 24 Light Handle Expansion Kit for B·IRON B·100 Light Handle This kit allows expanding a B·IRON single station with an additional B·100 handle. Safety Cap B·500 K* Charging Holder Handle Expansion Kit for B·IRON B·500 Handle This kit allows expanding a B·IRON single station with an additional B·500 handle.
  • Page 25 Assemble the new wiper onto the charging Press the wiper down at the 4 corners until you base. Make sure that the brass wool is on the feel it click into place. Make sure that the wiper far left and that there is space for the wiper on membrane is inserted correctly all the way the right.
  • Page 26 Replacing Sealing Plugs The sealing plug prevents undesirable flux vapors or particles from entering the handle. Its usage is highly recommended for intensive applications when soldering is exposed to FOD environments or for applications where the soldering iron works close to a vertical position. Handle Sealing Note: Choose between the two available sealing plug...

  • Page 27: Maintenance

    Charging Holder Disassembly and Replacement Disassembling the Charging Holder Loosen the screws (1) at the bottom of the charging base. Hold the charging holder with your hand in place, to prevent it from falling down, and pull the side band down (2).
  • Page 28 - Do not use liquids such as alcohol, thinner or benzene to clean the portable display. - Repairs should only be performed by a JBC authorized technical service. Safety It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion.

  • Page 29: Safety - Battery

    - In the event of damage, leakage, or overheating of the batteries, discontinue use immediately and contact customer support or JBC technical service facility. - Dispose of devices with batteries inside, responsibly according to regulations. They must be disposed of in accordance with local regulations so that they can be recycled.

  • Page 30: Specifications

    Specifications B·IRON NANO Battery-Powered Nano Soldering Station Ref. BIN-5A - with Portable Display Ref. BIN-5QA - without Portable Display Charging Base - Input: 100 V - 240 V 50/60 Hz - Nominal Power: 40 W - Tool Output: 12 V / 1000 mA - USB Output: 5 V / 1000 mA...
  • Page 31 Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse. In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased.
