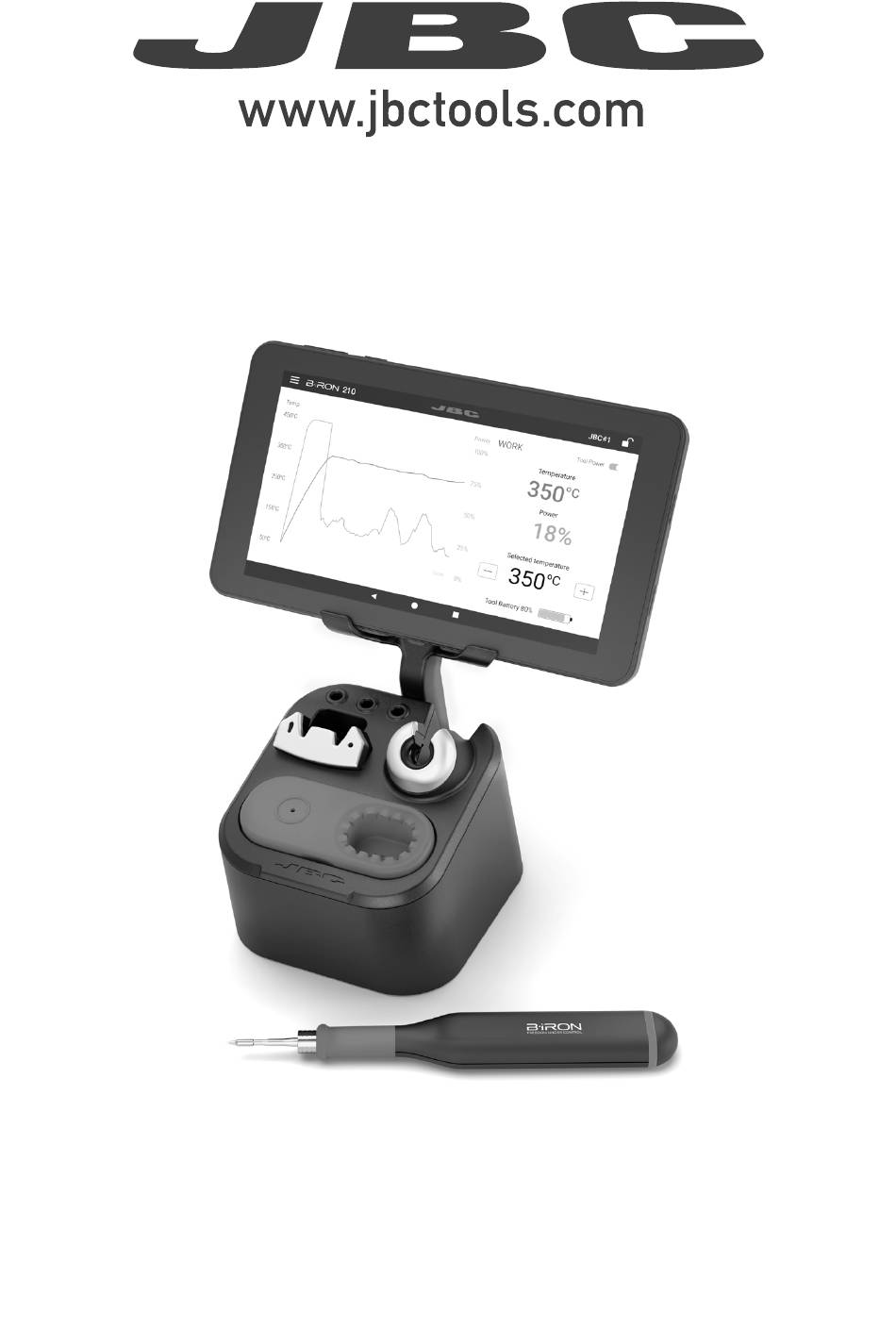

- Page 1 INSTRUCTION MANUAL B·iRON 210 Precision B·iRON Station...
- Page 2 This manual corresponds to the following references: Console included*: Console not included*: BI210UA BI210UQA 120 V - N. America, Taiwan 120 V - N. America, Taiwan BI210IA BI210IQA 230 V - India 230 V - India BI210A BI210QA 230 V - Europe 230 V - Europe BI210KA BI210KQA...
- Page 3 para manuales - color gris 200 mm Features and Connections 130 mm 130 mm Stand for B 210 Precision Tool Console Support 100 mm Cartridge Storage 80 mm Tool Stand and Charger Quick Tip Changer Brass Wool (inside) Antisplash Membrane 60 mm Wiper 50 mm...
- Page 4 Quick Start 1. Connection Connect the stand to the mains (100 - 240 V). 2. Cartridge Insertion and Charging Insert a cartridge into the tool (1) and place it into the charger on the stand (2). Note: Charge the tool completely (30 min) before using for the first time.
- Page 5 4. Selecting Tool 9:41 50 mm Bluetooth Connecting Devices Bluetooth Scanning... Tool ID JBC_1001 Select the tool from the detection list. 40 mm JBC#1 E10B0FCE4E7F E10B0FCE4E7F Detection List Console Work Screen Application Menu Tool Status Connected Tool 9:41 9:41 JBC#1...
- Page 6 Operation The JBC Most Efficient Soldering System This revolutionary technology is able to recover tip temperature extremely quickly. This allows the user to work at a lower temperature. As a result, tip life increases by 5. Work Charging and Hibernation...
- Page 7 Includes a temperature resistant wiper for removing excess solder by gently tapping or wiping the cartridge tip. If the tip is very dirty, JBC recommends first cleaning it with the wiper to remove excess solder and than with Wiper the brass wool.
- Page 8 Replacing Brass Wool 1. Lifting 2. Replacing Space Lift and remove the antisplash membrane. Replace the brass wool with a new one. Make sure that the brass wool is on the far left and that there is space for the wiper on the right. 3.
- Page 9 para manuales - color gris 200 mm Quick Tip Changer 130 mm 130 mm Save time and change cartridges safely without switching the station off. 1. Removing 2. Inserting 3. Fixing 100 mm 80 mm 60 mm Place the handpiece in the Place the handpiece on top of Use the holes for fixing the extractor and pull to remove...
- Page 10 Menu Settings The B·iRON Console offers an intuitive user interface which provides quick access to station parameters. Original PIN: 0105 9:41 JBC#1 JBC#1 Settings Tool ID Sensibility / Handle feel erature JBC#1 **** ºC Medium High Hibernation delay Shutdown delay...
- Page 11 - Connect the console/device via USB connection to the PC. 100 mm - On the console/device notification bar at the top, open “USB Connection Settings” and select “MTP”. 9:41 JBC#1 9:41 - On the PC copy the downloaded file to “IT706/internal share storage/JBC”. Settings WORK Temp Power 80 mm - Once copying is finished, disconnect the console/device from the PC.
- Page 12 Rusty and dirty surfaces reduce heat transfer to the solder joint. Clean periodically - Do not use liquid such as alcohol, thinner or benzene to clean the console. - Repairs should only be performed by a JBC authorized technical service.
- Page 13 para manuales - color gris 200 mm Safety 130 mm 130 mm It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. 100 mm - Do not use the units for any purpose other than soldering or rework. Incorrect use may cause fire. - The power cord must be plugged into approved bases.
- Page 14 Notes...
- Page 15 para manuales - color gris 200 mm Specifications 130 mm 130 mm B·iRON 210 Precision B·iRON Station Ref.: BI210UA Ref.: BI210KA 120 V - N. America 230 V - United Kingdom Ref.: BI210IA Ref.: BI210HA 230 V - India 230 V - China Ref.: BI210A 100 mm Ref.: BI210JA...
- Page 16 In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased. Get 1 extra year JBC warranty by registering here: https://www.jbctools.com/productregistration/ within 30 days of purchase. This product should not be thrown in the garbage.
