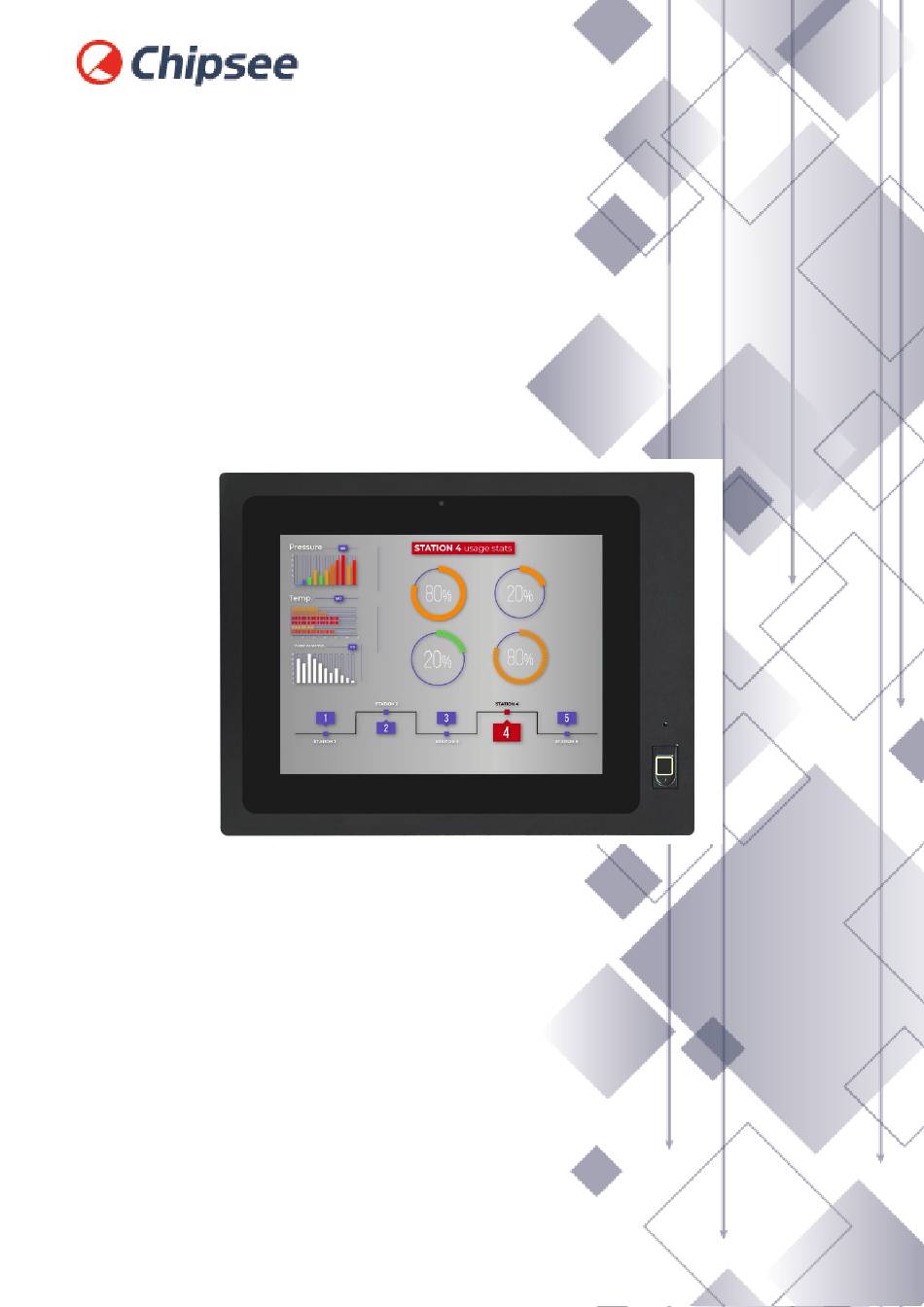

- Page 1 Industrial PC PPC-A9-121-U-C PN: CS10768F121-U Content can change at anytime, check documentation website for latest information. www.chipsee.com...
-
Page 2: Table Of Contents
Contents 1. PPC-A9-121-U-C 1.1. Product Overview 1.2. Ordering Options 1.2.1. Operating System 1.2.2. Optional Features 1.3. Hardware Features 1.4. Power Input 1.5. Touch Screen 1.6. Connectivity 1.6.1. RS232/RS485/CAN 1.6.2. USB Connectors 1.6.3. LAN Connectors 1.6.4. WiFi & BT Module 1.6.5. 4G/LTE Module 1.6.6. -
Page 3: Ppc-A9-121-U-C
PPC-A9-121-U-C PPC-A9-121-U-C Front View Rear View Chipsee Page 3 of 19... -
Page 4: Product Overview
Side View 1 Side View 2 Product Overview ® The Cortex -A9 series PPC-A9-121-U-C (PN: CS10768F121-U) is a rugged, high-quality industrial panel PC. It features a 12.1” multi-point capacitive touch screen with a resolution of 1024 x 768 pixels. Key Applications •... -
Page 5: Ordering Options
-40 to +125°C, the APU itself is well suited for extended temperature range in both automotive and factory environments. Ordering Options Chipsee products can be customized during the ordering process. The product will be shipped with the pre-installed factory defaults if no extra requirements are specified. The table in the... -
Page 6: Optional Features
Software Documentation section provides a detailed instruction how to install different OS on your own. However, bear in mind that Chipsee can’t take the responsibility of inadequate installation procedure. If you “brick” your device, please contact Chipsee Technical Support at support@chipsee.com... -
Page 7: Power Input
Power Input The PPC-A9-121-U-C Industrial Panel PC can be powered by a wide range of input voltages: From 15V to 36V DC. The power input connector is a 3-pin, 3.81mm terminal. The polarity and the pinout is clearly marked on the housing of the product as shown on the figure below. -
Page 8: Touch Screen
Use a high-quality Power Adapter Unit (PSU) with low EMR. You can also provide power from a battery. Make sure that the PPC-A9-121-U-C Power Input connector (pin 3) is properly connected to the Power System Ground to provide sufficient EMI shielding and eliminate the problem entirely. -
Page 9: Rs232/Rs485/Can
PPC-A9-121-U-C RS232/RS485/CAN RS232/RS485/CAN The serial communication interfaces (RS485, RS482, and CAN) are routed to a 16-pin 3.81mm terminal, as illustrated in the figure below. Serial communication on both RS485 and RS422 interfaces can reach up to 115200 kbps. Figure 66: Serial pins connector... -
Page 10: Usb Connectors
System 5V output, up to 1A Table 22 Connectivity Section 2(1,2)UART2 signal is used by the onboard WiFi/BT module, so the I/O port function is disabled by default. If you need the I/O port function instead, please contact Chipsee Technical Support at support@chipsee.com assistance. -
Page 11: Lan Connectors
PPC-A9-121-U-C LAN Connectors Figure 68: USB OTG Connector LAN Connectors LAN (RJ45) connector provides Ethernet connectivity over standardized Ethernet cables. The integrated Ethernet interface supports up to 1 Gbps data throughput. Power over Ethernet (PoE) is not supported. Figure 69: RJ45 LAN Connector ... -
Page 12: Wifi & Bt Module
Figure 70: WiFi+BT Antenna 4G/LTE Module The PPC-A9-121-U-C Industrial Panel PC is equipped with a mini-PCIe connector that can connect to a 4G/LTE module. The customer will also need a SIM Card Holder and a 4G/LTE Antenna Connector to ensure 4G/LTE works on the PPC-A9-121-U-C. SIM card does NOT support hot plug. -
Page 13: Camera, Microphone, And Fingerprint Module
Attention The product does not come shipped with the 4G/LTE module by default. Also, there is no software driver for any kind of 4G/LTE module on Chipsee store. Camera, Microphone, and Fingerprint Module The PPC-A9-121-U-C Industrial Panel PC supports a camera, a Microphone audio input, and a Zaz-070S fingerprint module as shown on the figure below. -
Page 14: Audio Connector
PPC-A9-121-U-C Audio Connector Audio Connector The PPC-A9-121-U-C Industrial Panel PC features some audio peripherals, as well. It has 1 x 3.5mm audio output jack. Figure 73: Audio Out Connector HDMI Connector The PPC-A9-121-U-C Industrial Panel PC is equipped with 1 x HDMI connector. The HDMI connector allows connecting an additional (external) monitor. -
Page 15: Mounting Procedure
The PPC-A9-121-U-C Industrial Panel PC can be mounted using the VESA (100x100mm or 75x75mm) and Panel mounting methods with a 4 x M4 screws, enabling simplified installation onto any standard mounting fixture. You can mount PPC-A9-121-U-C with the VESA mounting method, as shown on the figure below. Chipsee... - Page 16 PPC-A9-121-U-C Mounting Procedure Figure 76: VESA mounting You can mount PPC-A9-121-U-C with the Panel mounting method, as shown on the figure below. Chipsee Page 16 of 19...
-
Page 17: Mechanical Specifications
Mount IPC Guide. Mechanical Specifications The outer mechanical dimensions of PPC-A9-121-U-C are 359 x 274 x 23mm (W x L x H). Please refer to the technical drawing in the figure below for details related to the specific product measurements. - Page 18 PPC-A9-121-U-C Mechanical Specifications Figure 78: Technical Drawing Chipsee Page 18 of 19...
-
Page 19: Disclaimer
If you cannot find the solution you’re looking for, feel free to contact us. Please email Chipsee Technical Support at support@chipsee.com, providing all relevant information. We value your queries and suggestions and are committed to providing you with the assistance you require.
