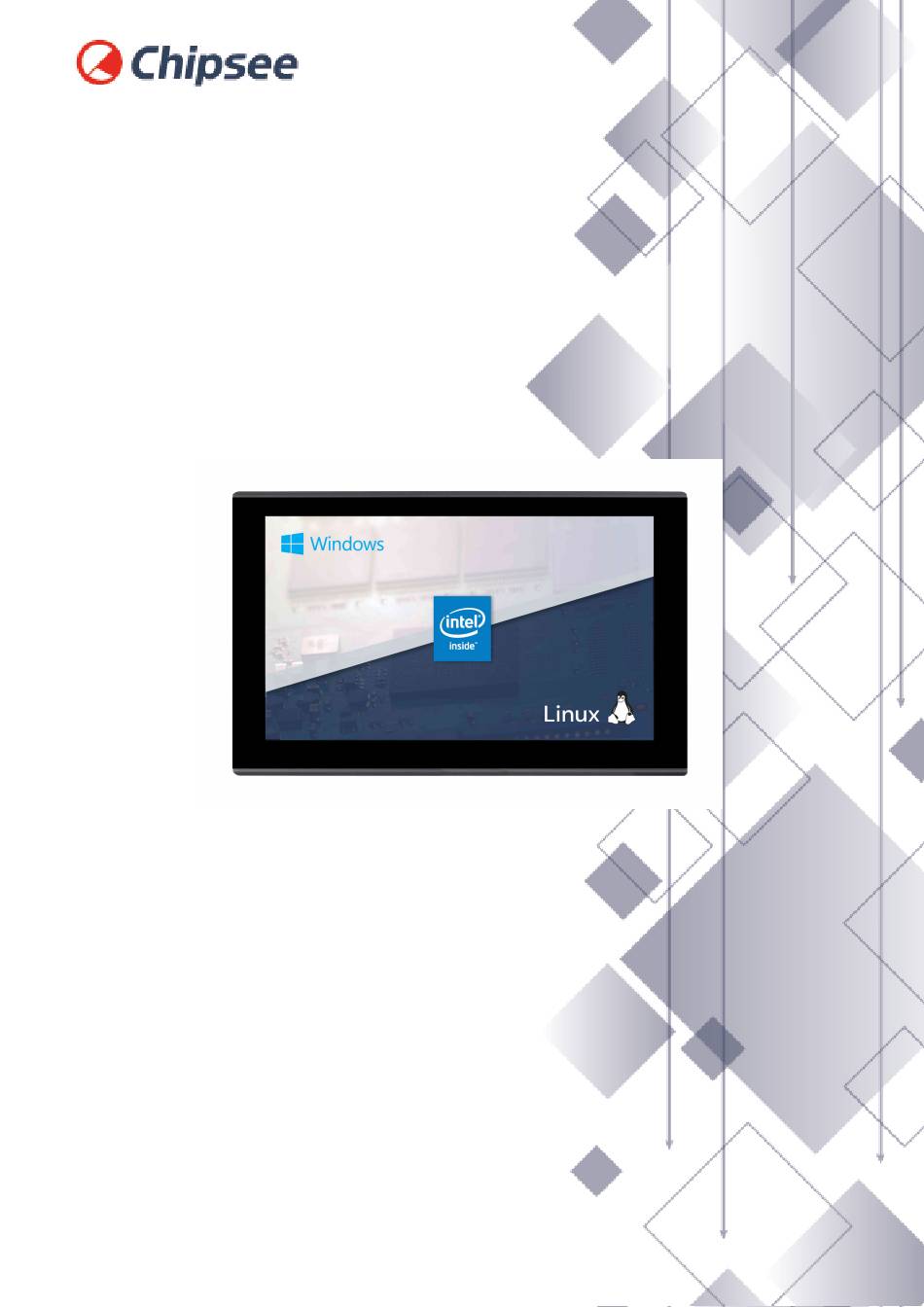

- Page 1 Industrial PC PPC-J6412-156-C PN: PPC-J6412-156-C Content can change at anytime, check documentation website for latest information. www.chipsee.com...
-
Page 2: Table Of Contents
Contents 1. PPC-J6412-156-C 1.1. Product Overview 1.2. Ordering Options 1.2.1. Operating System 1.2.2. Optional Features 1.3. Hardware Features 1.4. Power Input 1.5. Touch Screen 1.6. Connectivity 1.6.1. RS232/485/GPIO Connectors 1.6.2. USB HOST Connectors 1.6.3. LAN Connectors 1.6.4. HDMI Connector 1.6.5. Audio 1.7. -
Page 3: Ppc-J6412-156-C

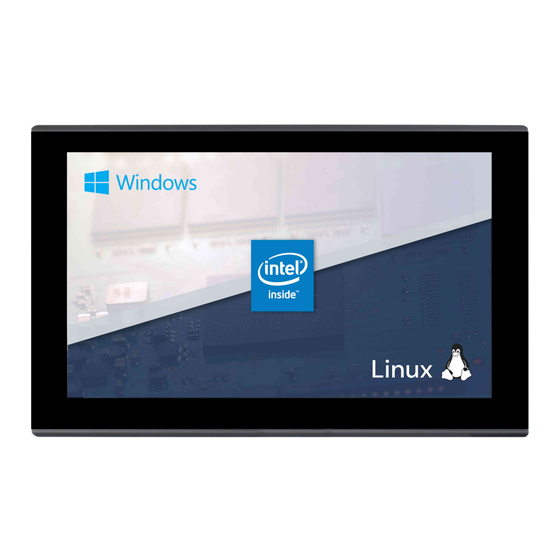

PPC-J6412-156-C PPC-J6412-156-C Front View Rear View Chipsee Page 3 of 15... -
Page 4: Product Overview
Product Overview Side View 1 Side View 2 Product Overview The PPC-J6412 series PPC-J6412-156-C is a rugged, high-quality NEMA 4X/IP65-compliant industrial panel PC. It features a 15.6” multi-point capacitive touch screen with a resolution of 1920 x 1080 pixels. Key Applications •... -
Page 5: Ordering Options
Be careful when handling the product while it is operating: the back panel might become hot under heavy CPU load. Ordering Options Most of the Chipsee products can be customized during the ordering process. The product will be shipped with the pre-installed factory defaults if no extra requirements are specified. -
Page 6: Hardware Features
PPC-J6412-156-C Hardware Features A 3G/4G/LTE/5G module is not available at the Chipsee store for this product. However, it can be obtained from specialized third-party suppliers. The 5G module only supports USB2.0 speed. Warning Installation, repair, and maintenance tasks should be performed by trained personnel only. -
Page 7: Power Input
PCB of the product Power Input The PPC-J6412-156-C Industrial Panel PC can be powered by a wide range of input voltages: from 9V to 30V DC. The power input connector is a 2-pin, 3.81mm screw terminal. The polarity of the power connector is clearly labelled on the housing itself: the ‘+’ sign is the positive, while the ‘-’... -
Page 8: Touch Screen
Service Life (MTBF): 50 million touch events Light Transmittance: > 92% Connectivity There are many connectivity options available on the PPC-J6412-156-C industrial PC. It has 4 x USB Type A connectors configured as HOSTS, 1 x HDMI port, 2 x RJ45 connectors Chipsee... -
Page 9: Rs232/485/Gpio Connectors
RS232/485/GPIO Connectors The PPC-J6412-156-C Industrial Panel PC has 2 x 9-pin D-sub connectors and 1 x 16-pin 3.81mm connector with pluggable terminal block. Two 9-pin D-sub connectors labelled as COM1 and COM2 can be configured either as RS232 or RS485 communication interfaces. -
Page 10: Usb Host Connectors
Table 244 GPIO/COM3/COM4 Pin Definition Note The default configuration of the PPC-J6412-156-C industrial PC is 4 x RS232 interfaces and 8 x GPIO channels. If you need different configuration, please contact Chipsee Technical Support at support@chipsee.com USB HOST Connectors PPC-J6412-156-C is equipped with 4 x USB 3.0 connectors. -
Page 11: Lan Connectors
PPC-J6412-156-C LAN Connectors 4 x USB3.0 HOST Connectors LAN Connectors 2 x LAN (RJ45) connectors provide Ethernet connectivity over standardized Ethernet cables. The integrated two-port Ethernet interface supports 10/100/1000BASE-T/TX specifications with automatic speed negotiation and Wake on LAN (WoL) feature. Power over Ethernet (PoE) is not supported. -
Page 12: Hdmi Connector
Use CAT5 or better cables to achieve full data throughput over maximum distance defined by the 1000BASE-T standard (100m). HDMI Connector The PPC-J6412-156-C Industrial Panel PC is equipped with 1 x HDMI connector. The HDMI connector allows connecting an additional (external) monitor. HDMI output resolution can be configured by the software. -
Page 13: Cmos Button
PPC-J6412-156-C CMOS Button Audio Jack CMOS Button There is a CMOS button you can use to reset the BIOS settings. While the PC is powered off, detach the power cable, you can press and hold the button for a few seconds to reset the BIOS settings. -
Page 14: Mounting Procedure
CMOS Button Mounting Procedure The PPC-J6412-156-C Industrial Panel PC supports VESA 100 x 100 mounting pattern with 4 x M4 screws, enabling simplified installation onto any standard VESA mounting rack. The PPC-J6412-156-C Industrial Panel PC supports panel mount, wall mount and desktop. -
Page 15: Disclaimer
If you cannot find the solution you’re looking for, feel free to contact us. Please email Chipsee Technical Support at support@chipsee.com, providing all relevant information. We value your queries and suggestions and are committed to providing you with the assistance you require.
