NEC MultiSync 20WMGX2 User Manual page 12

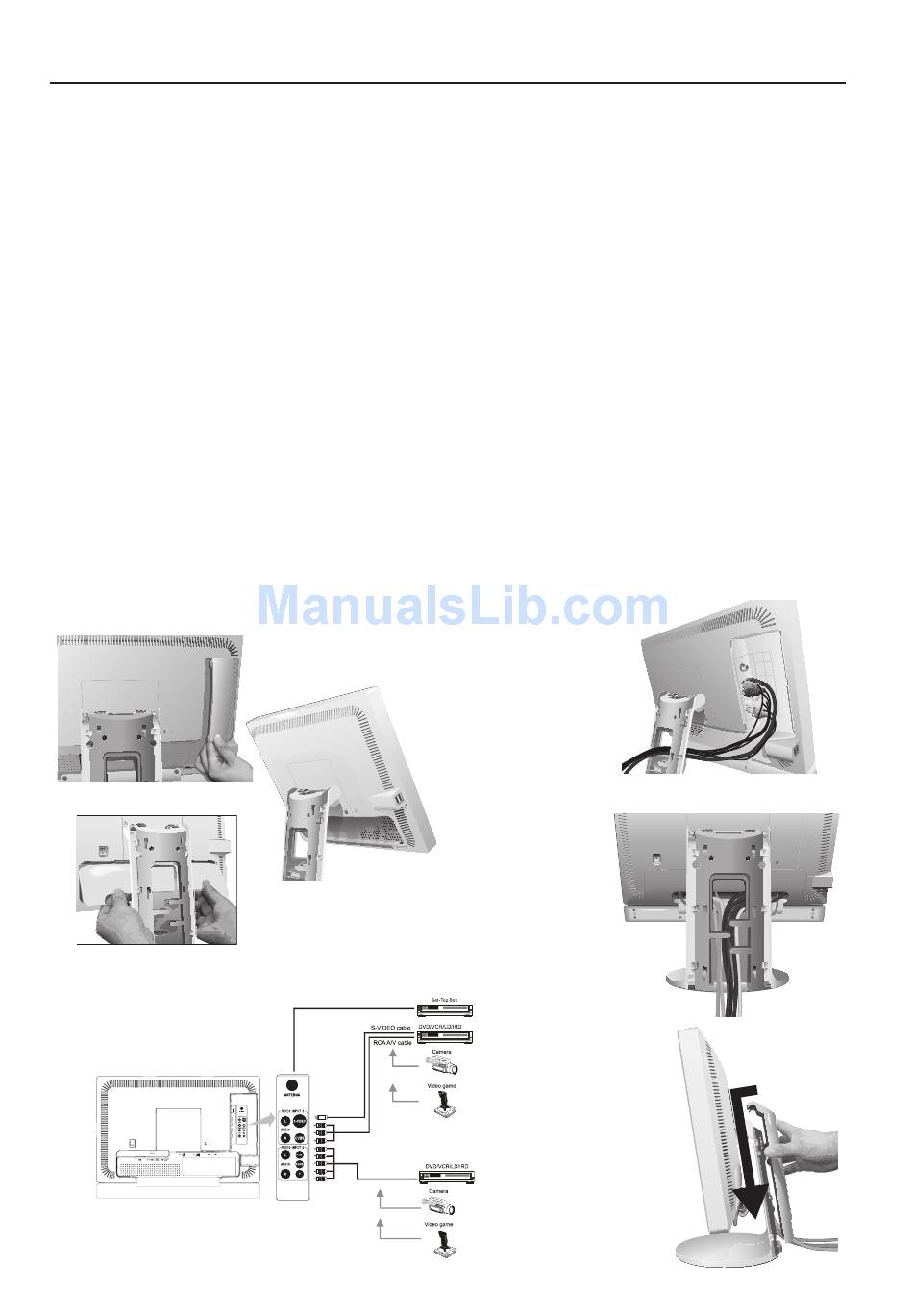

Installation Instructions
Connecting to Video/Antenna/Cable
1. Turn off the power to the monitor.
2. Remove the connector cover and tilt the LCD panel 30° (Figure 11).
3. Connect all cables to the appropriate connectors through the square hole in the stand (Figure 12).
4. Connect Video/Antenna/Cable to correct connection on the LCD.
5. Place the connector cover onto the back cabinet.
6. Place all cables into the hooks (Figure 13).
7. Place hands on each side if the monitor to tilt the LCD panel back 5° and place the cable cover back onto the
stand (Figure 14).
8. Connect the power cord to the power outlet.
9. The Vacation Switch located on the back side of the monitor (Figure 10) must be turned ON in order for the
monitor to operate. With the Vacation Switch in the ON position, turn the monitor on using the front power
button.
NOTE: The vacation switch is a true on/off switch. If this switch is in the OFF position, the monitor cannot be
turned on using the front button. DO NOT switch ON/OFF repeatedly.
NOTE: If you have any problems, please refer to the TROUBLESHOOTING section of this User's Manual.
Figure 13
Figure 11
0
continued
Figure 12
Figure 14
Figure 15
