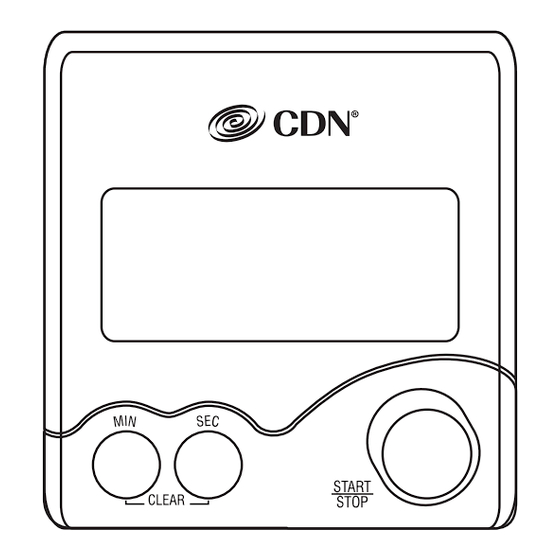

CDN TM7-W Operating Instructions

Features
• Counts down
• Big digit
• Loud alarm
• Stop and restart
• Last count recall
• Food-safe ABS plastic
• 3-way mounting: pocket clip/magnet/stand
• Battery and instructions included
Note:
Remove sticker from display before use.
Note: In the following instructions, names of the control
buttons are shown in CAPS. Function information that appears
on the display is shown in BOLD CAPS.
Battery Installation
Replace battery when LCD becomes dim or alarm
level declines.
1. Remove battery cover on the back by sliding it
in the direction of the arrow.
2. Install one 1.5V AAA battery observing polarity
shown in compartment. A brief alarm sounds.
3. Replace the battery cover until it clicks shut.
Loud Alarm Timer
Counts 100 minutes by seconds
Operating Instructions
A. Count Down
1. Press the MIN and/or SEC buttons to enter the
desired time. Press and hold for fast advance.
2. Press the START/STOP button to start
counting down. M and S flash on the display.
3. Press the START/STOP button to interrupt the
count. Press START/STOP again to resume
the count.
4. The alarm sounds for 30 seconds when
the count reaches 00:00.
5. Press START/STOP to stop the alarm.
The last count is recalled.
6. Press both MIN and SEC buttons
simultaneously to reset to 00:00.
Care of Your Product
• Avoid exposing your timer to extreme
temperatures, water or severe shock.
• Avoid contact with any corrosive materials such as
perfume, alcohol or cleaning agents.
• Wipe clean with a damp cloth.
CE Note: This device could be sensitive to electrostatic
discharge. If electrostatic discharge or malfunctioning occurs,
please re-install the battery to reset this unit.
Model: TM7-W
