CDN TM27 Quick Start Manual

Features
• Counts up & down
• Stop & restart
• Last count recall
Note: Remove sticker from entire timer front before use.

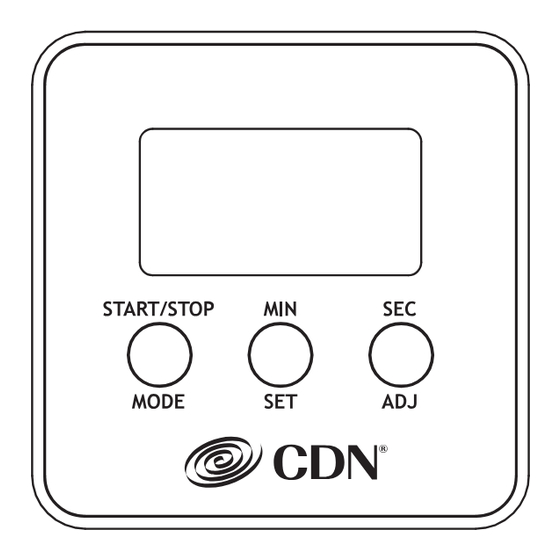

Note: In the following instructions, names of the control
buttons are shown in CAPS. Function information that appears
on the display is shown in BOLD CAPS.
Battery Installation
Battery is installed. Remove plastic tab to allow power.
Replace battery when LCD becomes dim or alarm level
declines.
1. Remove battery cover on the back by sliding it in the
direction of the arrow.
2. Install one 1.5V AAA battery observing polarity shown
in compartment. The display will show all segments
and a brief alarm sounds.
3. Replace the battery cover until it clicks shut.
Economy Timer/Clock
Counts 100 minutes by seconds
Operating Instructions
A. Set Clock
1. The clock appears by default. TIME appears on
the display.
2. Press the SET button to set the time.
3. Press the ADJ button to enter the desired hour.
Press and hold for fast advance.
4 Press the SET button to lock in the desired hour
and move to the minute digits.
5. Press the ADJ button to enter the desired minutes.
Press and hold for fast advance.
4 Press the SET button to lock in the desired minutes
and exit out of the clock setting mode.
5. Return to Clock mode from timer modes
by pressing and holding all three buttons
simultaneously.
B. Count Down
1. Press the MODE button to enter the count down
timer mode. TIMER appears on the display.
2. Press the MIN and/or SEC buttons to enter
the desired time. Press and hold for fast advance.
3. Press the START/STOP button to start counting
down.
Note: The COLON(:), M & S flash on the display during
count down.
4. Press any button to interrupt the count. Press
START/STOP again to resume the count.
5. The alarm sounds when the count reaches 00:00.
6. The alarm stops automatically after 60 seconds.
Press START/STOP to stop the alarm. The last count
is recalled.
7. When timer is stopped, press both MIN and SEC
buttons simultaneously to reset to 00:00.
8. The display returns to Clock mode automatically
after 1 minute when no buttons are pressed.
9. Return to Clock mode from timer modes
by pressing and holding all three buttons
simultaneously.
Model: TM27
