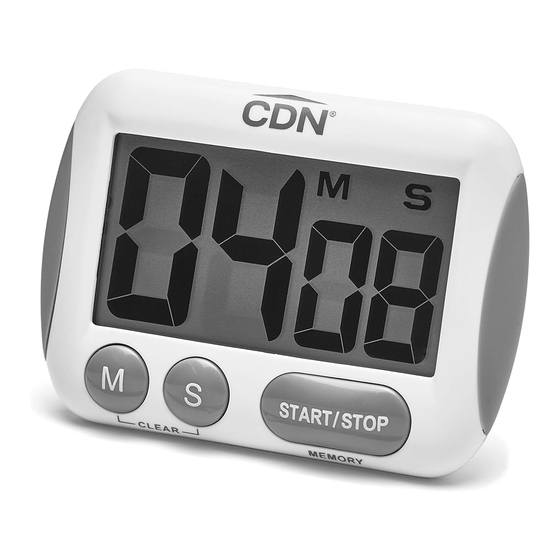

CDN TM15 Quick Start Manual

Features
• Counts up & down
• Extra big digit
• Loud and long alarm
• Stop and restart
• Last count recall
• Counts up after zero
• Food-safe ABS plastic
• 3-way mounting: magnet/stand/loop
• Battery and instructions included
Note: Remove sticker from display before use.
Note: In the following instructions, names of the control
buttons are shown in CAPS. Function information that appears
on the display is shown in BOLD CAPS.
Battery Installation
Replace battery when LCD becomes dim or alarm
level declines.
1. Remove battery cover on the back by sliding it
in the direction of the arrow.
2. Install one 1.5V AAA battery observing polarity
shown in compartment. A brief alarm sounds.
3. Replace the battery cover until it clicks shut.
Extra Big Digit Timer
Operating Instructions
A. Count Down
1. Press the MIN and/or SEC buttons to enter the
desired time. Press and hold for fast advance.
2. Press the START/STOP button to start
counting down. M and S flash on the display.
3. Press the START/STOP button to interrupt the
count. Press START/STOP again to resume
the count.
4. The alarm sounds and the timer counts up
when the count reaches 00:00.
5. The alarm stops automatically after 60 seconds
while the flashing and count up continues.
Press START/STOP to stop the alarm and the
count up. The last count is recalled.
6. When timer is stopped, press both MIN and
SEC buttons simultaneously to reset to 00:00.
B. Count Up
1. When timer is stopped, press both MIN and
SEC buttons simultaneously to reset to 00:00.
2. Press the START/STOP button to begin the
count up. M and S flash on the display.
3. Press the START/STOP button to interrupt the
count. Press START/STOP again to resume
the count.
4. Press both MIN and SEC buttons
simultaneously to reset to 00:00.
Care of Your Product
• Avoid exposing your timer to extreme
temperatures, water or severe shock.
• Avoid contact with any corrosive materials such as
perfume, alcohol or cleaning agents.
• Wipe clean with a damp cloth.
Model: TM15
100 minutes by seconds
