CDN TMW1 Quick Start Manual

Features
• Waterproof
• Shatterproof
• Counts up & down
• Big digit
• Loud & long audio/visual alarm
• Stop and restart
• Last count recall
• Counts up after zero
• 2-way mounting: magnet/stand
• Batteries & instructions included
Note: Remove sticker from display before use.

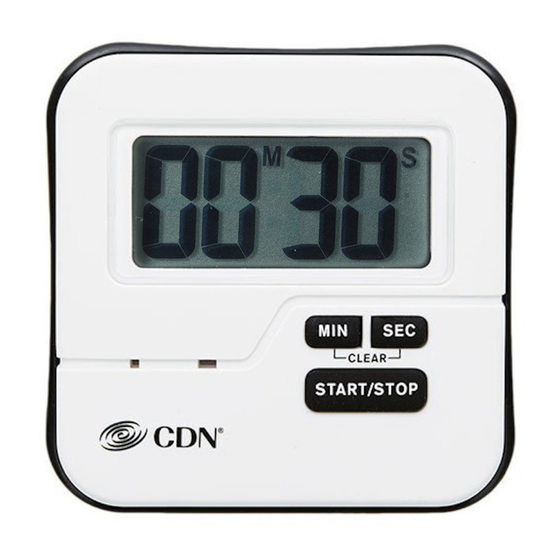

M
MIN SEC
CLEAR
START / STOP
Note: In the following instructions, names of the control
buttons are shown in CAPS. Function information that appears
on the display is shown in BOLD CAPS.
Battery Installation
Replace battery when LCD becomes dim or alarm
level declines.
1. Pull stand out.
2. Remove battery cover using a screwdriver or
coin.
3. Install two 1.5V AAA batteries observing
polarity shown in compartment. A brief alarm
sounds.
Note: The gel in the battery compartment is required for
waterproofing.
4. Replace the battery cover making sure that
gasket remains in groove.
Operating Instructions
A. Count Down
1. Press the MIN and/or SEC buttons to enter the
2. Press the START/STOP button to start
3. Press the START/STOP button to interrupt the
4. The audio/visual alarm sounds and the timer
5. The audio/visual alarm stops automatically
6. When timer is stopped, press both MIN and
B. Count Up
Component Design Northwest, Inc.
Portland, OR
1. When timer is stopped, press both MIN and
Made in China
Model TMW1
2. Press the START/STOP button to begin the
3. Press the START/STOP button to interrupt the
4. Press both MIN and SEC buttons
Care of Your Product
• Avoid exposing your timer to extreme
temperatures, water or severe shock.
• Avoid contact with any corrosive materials such as
perfume, alcohol or cleaning agent.
• Wipe clean with a damp cloth.
CE Note: This device could be sensitive to electrostatic
discharge. If electrostatic discharge or malfunctioning occurs,
please re-install the battery to reset this unit.
Waterproof Timer
Counts 100 minutes by seconds
desired time. Press and hold for fast advance.
counting down. M and S flash on the display.
count. Press START/STOP again to resume the
count.
counts up when the count reaches 00:00.
after 60 seconds while the flashing and count
up continues. Press START/STOP to stop the
alarm and the count up. The last count is
recalled.
SEC buttons simultaneously to reset to 00:00.
SEC buttons simultaneously to reset to 00:00.
count up. M and S flash on the display.
count. Press START/STOP again to resume the
count.
simultaneously to reset to 00:00.
Model: TMW1
