CDN TR3 Operating Instructions

Features
• Counts up & down
• Stopwatch
• Stop and restart
• Lock
• Last count recall
• ABS plastic
• 3-way mounting: pocket clip/magnet/rope
• Battery and instructions included
Note:
Remove sticker from display before use.
Note: In the following instructions, names of the control
buttons are shown in CAPS. Function information that appears
on the display is shown in BOLD CAPS.
Battery Installation
Battery is installed. Remove plastic tab to allow
power. Replace battery when LCD becomes dim
or alarm level declines.
1. Remove battery cover on the back by sliding it
in the direction of the arrow.
2. Install one LR44 battery, positive (+) side up.
3. Replace the battery cover until it clicks shut.

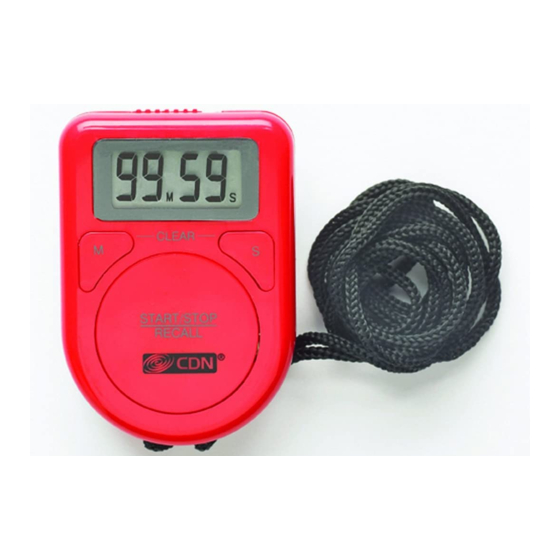

Timer On a Rope
Counts 100 minutes by seconds

Operating Instructions

A. Count Down
1. Slide switch on the top away from LOCK to
allow time to be set.
2. Press the M and/or S buttons to enter the
desired time. Press and hold for fast advance.
3. Slide switch on the top to LOCK to secure
the desired time for recall.
4. Press the START/STOP button to start
counting down. M and S flash on the display.
5. Press the START/STOP button to interrupt the
count. Press START/STOP again to resume
the count.
6. The alarm sounds for 30 seconds when
the count reaches 00:00.
7. Press START/STOP to stop the alarm.
The last count
is recalled.
8. When timer is unlocked and stopped, press
both M and S buttons simultaneously to reset
to 00:00.
B. Count Up
1. When timer is unlocked and stopped, press
both M and S buttons simultaneously to reset
to 00:00.
2. Press the START/STOP button to begin the
count up. M and S flash on the display.
3. Press the START/STOP button to interrupt the
count. Press START/STOP again to resume
the count.
4. Press both M and S buttons simultaneously
to reset to 00:00.
Care of Your Product
• Avoid exposing your timer to extreme
temperatures, water or severe shock.
• Avoid contact with any corrosive materials such as
perfume, alcohol or cleaning agents.
• Wipe clean with a damp cloth.
Model: TR3
