CDN PT2 Operating Instructions

Features

• 4 channels
• Programmable
• Dual function
• Memory
• Counts up & down in 4 channels separately
or simultaneously
• Clock
• Stopwatch
• Loud and long alarm
• Individual channel sounds
• Stop and restart
• Counts up after zero
• Food-safe ABS plastic
• Sliding mode switch
• 4-way mounting: pocket clip/magnet/stand/loop
• Battery and instructions included
Note: Remove sticker from display before use.
Note: In the following instructions, names of the
control buttons are shown in CAPS. Function
information that appears on the display is shown in
BOLD CAPS.
4-Event Timer & Clock
Counts 100 hours by minutes & seconds

Battery Installation

Replace battery when LCD becomes dim or alarm level
declines.
1. Remove battery door by turning it counterclockwise.
2. Install a 1.5 V button battery with positive (+)
side up.
3. Replace battery door and lock it by turning
it clockwise.

Operating Instructions

A. Set Clock
1. Select CLOCK mode with sliding mode
switch. 12:00 AM will appear after
00
inserting battery.
2. Press and hold ENTER approximately 2 seconds
until the display flashes.
3. Press HR, MIN and SEC to enter the desired
time. Press and hold button for fast advance.
4. Press ENTER to exit. The PT2 will automatically
exit 3 seconds after the last entry.
B. Count Down
1. Select COUNT DOWN mode with sliding
mode switch. COUNT DOWN will
appear on the display.
2. Press HR, MIN and/or SEC to enter the desired
time. Press and hold button for fast advance.
3. Press START/STOP to start the count down.
Press START/STOP button to interrupt the count.
Press START/STOP button again to resume the
count.
4. When the desired time is reached,
alarm will sound and the timer will
start to count up the "overtime". OT (OverTime)
and COUNT UP will appear on the display while
TIME'S UP flashes.
5. Press START/STOP to stop the alarm.
The alarm will stop automatically after
60 seconds while the count up continues.
6. Press CLEAR to reset to 0:00
Note: The timer will retain any time showing on the
display when the sliding mode switch is moved to
another position.

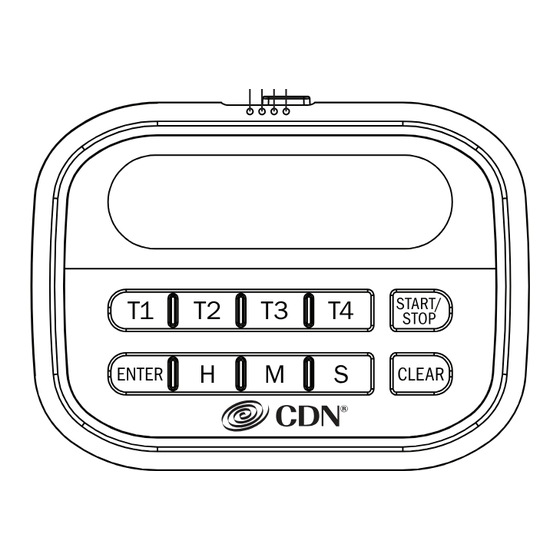

Model: PT2
.
00
