Theo
Installation Guide
For Model:
THO42
4007498
APPROVED FOR USE IN
DAMP LOCATIONS
net weight of fan: 14.33 lb (6.5 kg)
READ THESE INSTRUCTIONS AND
SAVE THEM FOR FUTURE USE
Table of Contents:
Safety Tips. pg. 2
Unpacking Your Fan. pg. 3
Parts Inventory. pg. 3
Installation Preparation. pg. 4
Hanging Bracket Installation. pg. 4
Fan Assembly. pgs. 5 - 6
Wiring. pgs. 6 - 7
Canopy Assembly. pg. 7
Blade Assembly. pg. 8
Light Kit Assembly. pg. 8
Remote/Wall Control Operation. pg. 10
Testing Your Fan. pg. 10
Troubleshooting. pg. 11
Warranty. pg. 11
Parts Replacement. pg. 11
page 1
PRINTED IN CHINA
Advertisement
Table of Contents
Subscribe to Our Youtube Channel

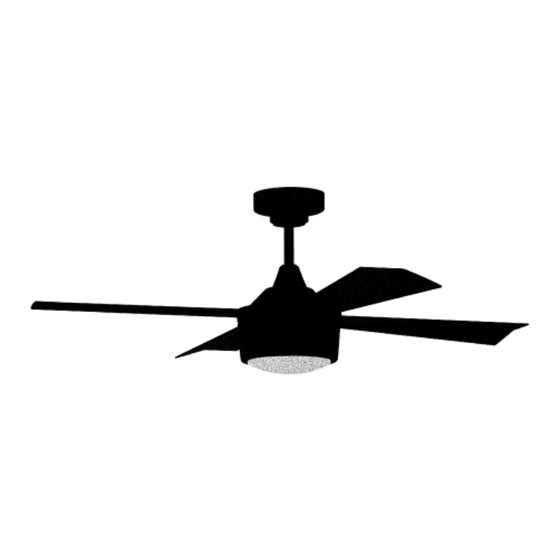

Related Manuals for Craftmade THO42
Summary of Contents for Craftmade THO42
-
Page 1: Table Of Contents
Installation Guide Safety Tips. pg. 2 Unpacking Your Fan. pg. 3 For Model: Parts Inventory. pg. 3 THO42 Installation Preparation. pg. 4 Hanging Bracket Installation. pg. 4 Fan Assembly. pgs. 5 - 6 Wiring. pgs. 6 - 7 Canopy Assembly. pg. 7 Blade Assembly. -
Page 2: Safety Tips
(2) this LED light kit must accept any interference received, including interference that may cause undesired operation. Distributed by: Craftmade, 650 S. Royal Lane, Coppell, TX, 75019; 1-800-486-4892 NOTE: The important safety precautions and instructions appearing in the manual are not meant to cover all possible conditions and situations that may occur. -
Page 3: Unpacking Your Fan
1. Unpacking Your Fan. Carefully open the packaging. Remove items from Styrofoam inserts. Remove motor housing and place on carpet or Styrofoam to avoid damage to finish. Do not discard fan carton or Styrofoam inserts should this fan need to be returned for repairs. Check against parts inventory that all parts have been included. -
Page 4: Installation Preparation
3. Installation Preparation. blade edge To prevent personal injury and damage, ensure inches that the hanging location allows the blades a 7 feet (76cm) clearance of 7 feet (2.13m) from the floor and (2.13m) 30in. (76cm) from any wall or obstruction. This fan is suitable for room sizes up to 144 square 10ft - 12ft (3.05m - 3.66m) -
Page 5: Fan Assembly. Pgs
5. Fan Assembly. stop pin set screw Remove hanging ball from downrod provided by loosening set screw on hanging ball. Remove pin hanging ball and clip. Lower hanging ball and remove stop pin. Slide hanging ball off of the downrod. [Refer to clip diagram 1.] diagram 1... -
Page 6: Wiring. Pgs
5. Fan Assembly. (cont.) wood ceiling With the hanging bracket secured to the outlet box and joist able to support the fan, you are now ready to hang your safety cable loop fan. Grab the fan firmly with two hands. Slide downrod through opening in hanging bracket and let hanging ball rest on the hanging bracket. -
Page 7: Canopy Assembly
6. Wiring. (cont.) outlet box wall control [PLEASE NOTE: Wall and/or handheld remote control must be used for fan to operate. If you do not wish to use the wall control, please proceed to dimmer Section 7 below to continue with fan installation.] switch green/ green/... -
Page 8: Blade Assembly
8. Blade Assembly. WARNING: To reduce the risk of serious bodily injury, DO NOT use power tools to assemble the blades. If screws are overtightened, blades may crack and break. motor housing Time Saver: Washers for blade attachment (view from underside) screws can be set on each screw prior to installing blades. -
Page 9: Handheld Remote Control Assembly
10. Handheld Remote Control Assembly. IN ORDER TO USE THE HANDHELD REMOTE CONTROL, remote control PLEASE CONTINUE WITH SECTION 10 for remote control cover assembly instructions. If you have already installed the wall control but do not wish to use the handheld remote control, please proceed to Section 11. -
Page 10: Automated Learning Process./Activating Code
11. Automated Learning Process./Activating Code. CAUTION: The wall and/or handheld remote control can be programmed to multiple receivers or fans. If this is not desired, turn wall switch off to any other programmable receiver or fan. Restore electrical power and then, if using wall control, set slider switch on wall control to the ON position. Within 60 seconds of turning on the wall control, press and hold the OFF button on the wall control for 5 seconds (or until light blinks twice or fan blades begin to turn). -
Page 11: Troubleshooting
Service at 1-800-486-4892 to arrange for return of fan. 2. Check to be sure wall control (optional use) is Return fan, shipping prepaid, to Craftmade. We will repair wired properly. or ship you a replacement fan, and we will pay the return 3.
