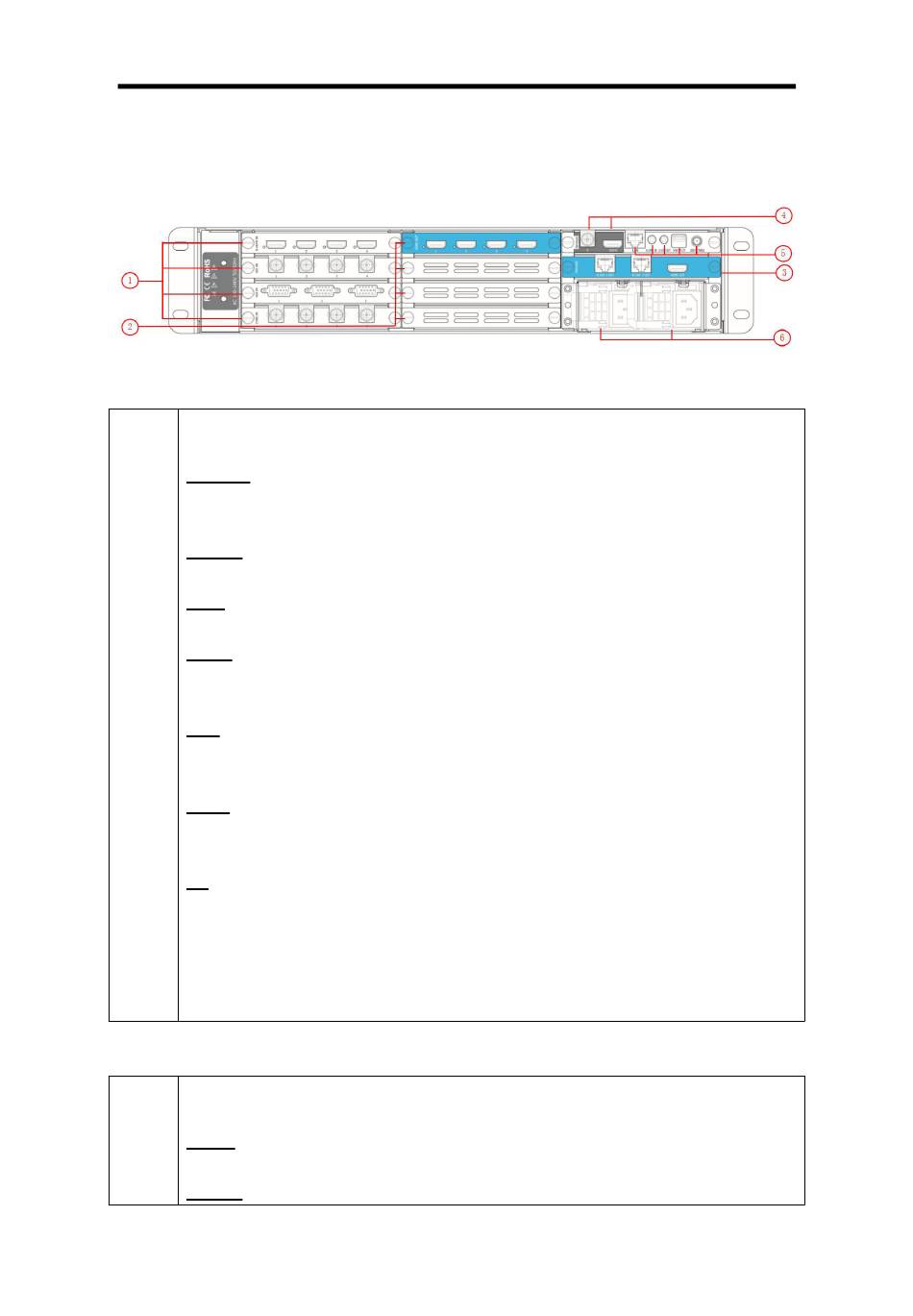

1.2.1 Back Panel

Input Option Slots
X2provides 4 input option slots, range of inputs are available for user fitting, including
S-HDMI, SDI, VGA, CVBS, USB, HDMI, H.264 and 4K.
S-HDMI
Each HDMI module supports 4 HDMI-A inputs. Standard signal from computer can
input.
3G-SDI
Each SDI module supports 4 SDI inputs. Standard 3G-SDI signals can input.
VGA
Each VGA module supports 3 DB15 inputs. Standard VGA signals can input.
CVBS
Each CVBS module supports 4 BNC inputs. Standard video signal from players,
cameras can input.
1
USB
Each USB module supports 4 USB-A inputs. Access the USB device or mobile hard
disk with USB storage function. Support general image and video formats.
H.264
Each H.264 module supports 4 RJ15 inputs. Standard signal from cameras and router
can input.
4K
Each 4K module supports 1 HDMI input and 1 DP input, each with loop.
The HDMI input can input the image signal from computer. The HDMI Loop can
connect to the HDMI input of the ne×t X2or the device with HDMI input.
Standard DisplayPort signals can be input for DP input. The DP Loop can connect to the
DP input of the ne×t X2or the device with DP input.
Program Output Option Slots
X2provides 4 output option slots, range of inputs are available for user fitting, including
HDMI and SDI.
2 HDMI
Connect to the display device, video processor or matri× with HDMI input.
3G-SDI
