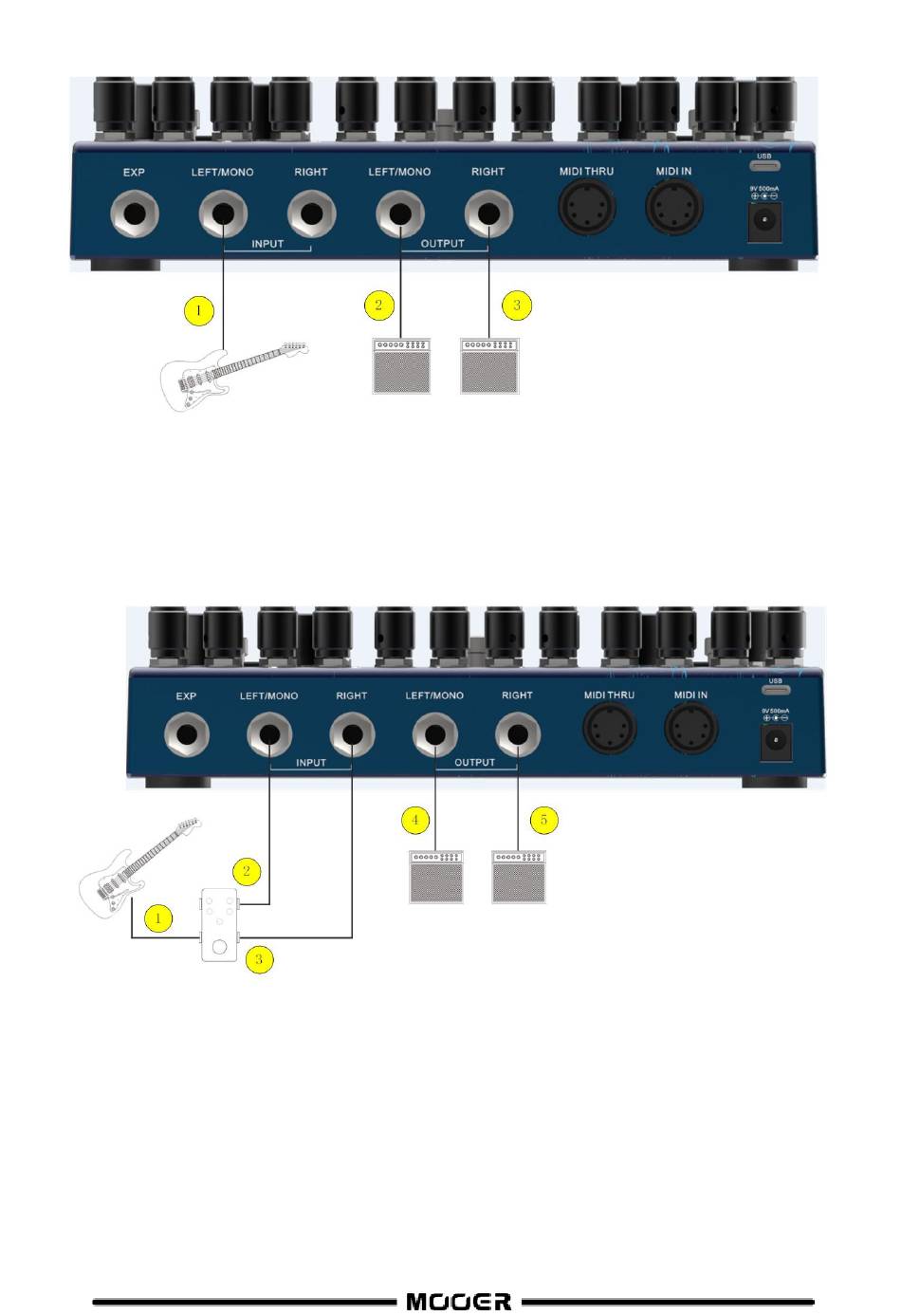

Mono input and stereo output setup
1.
Guitar connects to the LEFT/MONO input jack
2.
LEFT/MONO output jack connects to the INPUT of the amplifier
3.
RIGHT output jack connects to the INPUT of another amplifier
Stereo input and stereo output setup
1.
Guitar connects to the INPUT of a stereo pedal
2.
LEFT output jack of the stereo pedal connects to the LEFT/MONO input jack
3.
RIGHT output jack of the stereo pedal connects to the RIGHT input jack
4.
LEFT/MONO output jack connects to the INPUT of the amplifier
5.
RIGHT output jack connects to the INPUT of the other amplifier
5
