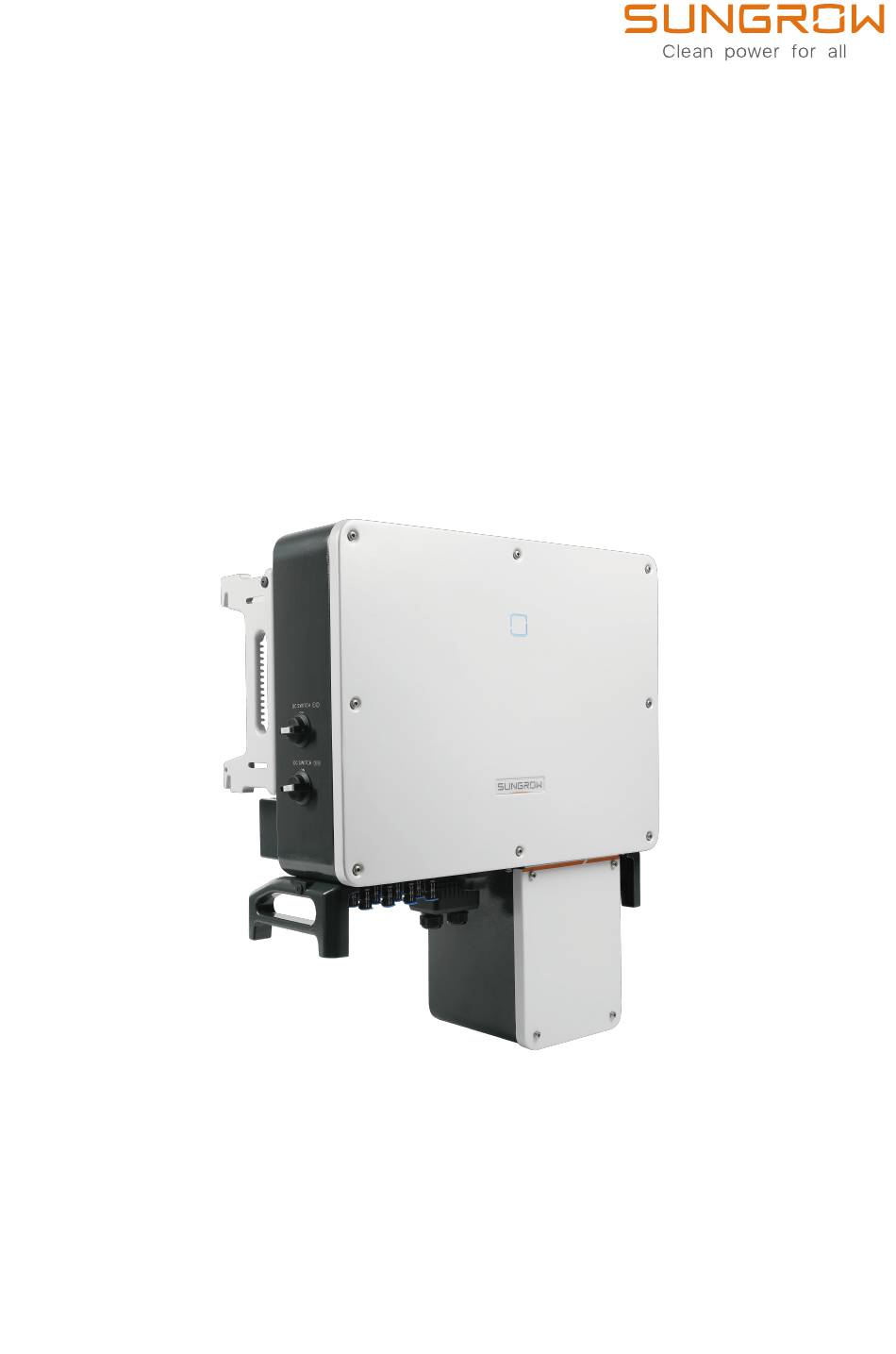

- Page 1 PV Grid-Connected Inverter Quick Installation Guide SG36CX-US/SG60CX-US WWW.SUNGROWPOWER.COM SG36_60CX-US-QIEN-Ver12-202411...
- Page 2 Any violation could result in personal death or injury or device damage, and will void the warranty. Safety Please follow the safety instructions related to the PV strings and the utility grid. Otherwise, SUNGROW shall not be held liable for any damage caused.
- Page 3 The warning label on the inverter body are as follows. Disconnect the inverter from all the external There is a danger from a hot surface that power sources before service! may exceed 60°C. Check the user manual before service!
-
Page 4: Scope Of Delivery
≥ 450mm ≥ 200mm ≥-30 － ≥ 1000mm ≥650mm ≤100% ≥ 650mm ≥ 10° Please consult SUNGROW before tilting backwards the inverter and install it in floating power plants. Dimenson 50mm/ 1.97” 4 - φ 11 78mm/ 3.1” 199mm/7.8” 295mm/ Type (W×H×D) - Page 5 Mounting 1.5 N.m PE Connection L = E + (2~3)mm 4.2~4.5 N.m Φ6AWG-4AWG Wiring compartment 4.2~4.5 N.m 15mm 15mm 13-15 N.m...
- Page 6 AC Connection 2-1/2 1.5 N.m L = E + (2~3)mm D: 20~50mm ≥165 mm SG36-US:6~2/0AWG SG60-US:5~2/0AWG 1.5 N.m 10~12 N·m DC Connection D: 4.7~6.4mm ≤1000V dmjdl 12~10AWG (SG60CX-US) (SG36CX-US) 880.0 Click ≤ 1000 V...
-
Page 7: Rs485 Communication Connection
RS485 Communication Connection Lower layer Upper layer Lower layer Upper layer RS485-1 interface (RJ45) RS485-1 dip switch RS485-2 interface RS485 DI DI PGND NC COM NO A1 A1 B1 B1 PGND CON1 RS485-1interface Emergency stop dry contact Fault output dry contact (Crimp) Crimp 7 mm... - Page 8 Power on...
- Page 9 More information in the QR code or at http://support.sungrowpower.com/ Specifications are subject to changes without advance notice.
