Wall Mounted Hand Held Drench Hose –
Single Outlet with Recoil Hose
Installation and Maintenance Instructions
EL450
technical data
Inlet Connection
Minimum Water Supply
Line Size
Working Pressure Range
Minimum Flow Rate
Suggested Flushing Water
Temperature
Activation
I00303_13 Jun 2024
1300 369 273 | info@enware.com.au | enware.com.au
1/2" BSP (DN15)
DN15
Min 50 kPa
Max 500 kPa
6 Lpm
Tepid
16°C min - 38°C max
Squeeze trigger handle
1/2" BSP
FEMALE
95
50
3.75 m LONG
NYLEX SELF
STORE HOSE
Advertisement
Table of Contents
Related Manuals for Watts ENWARE EL450
Summary of Contents for Watts ENWARE EL450

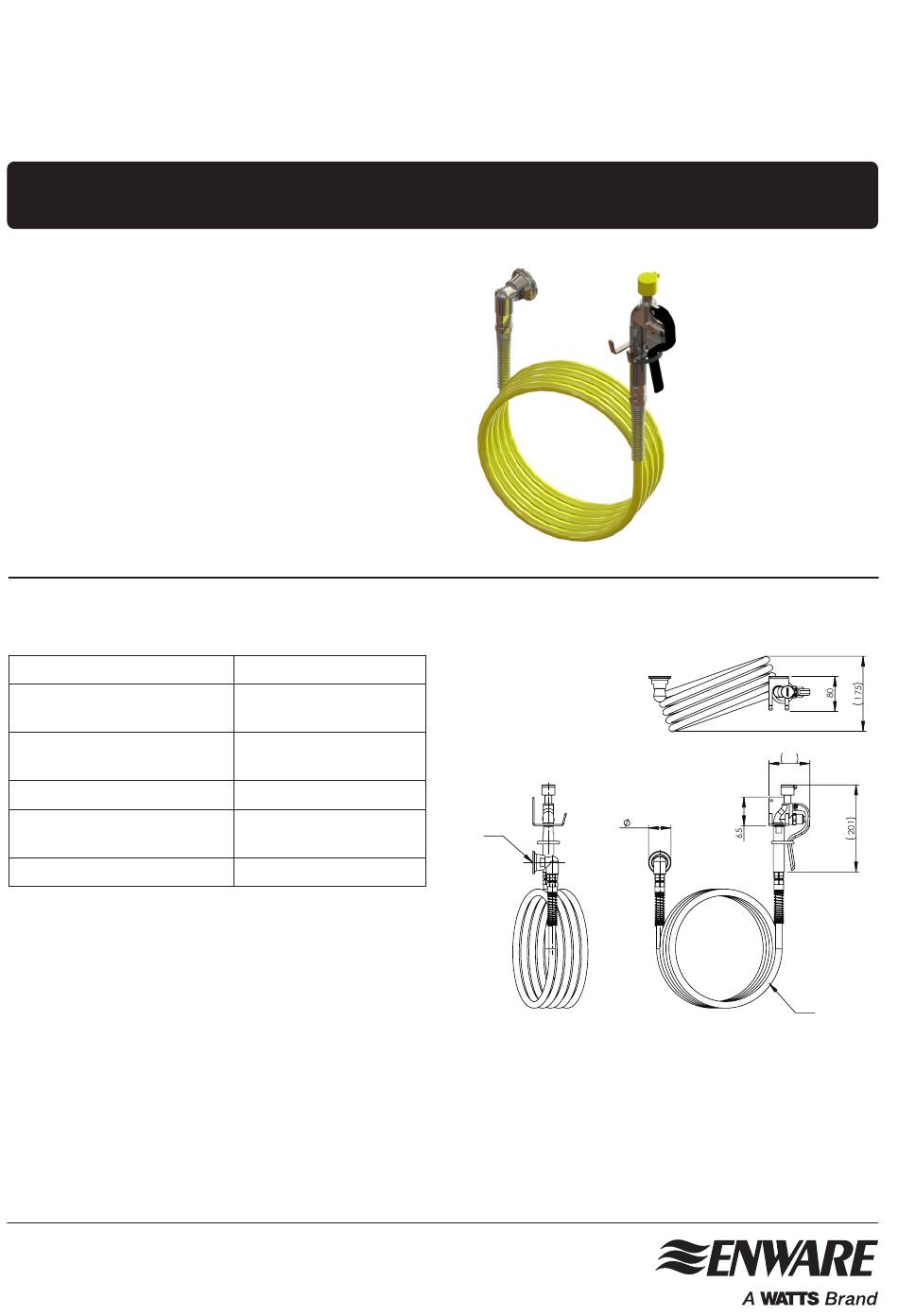

- Page 1 Wall Mounted Hand Held Drench Hose – Single Outlet with Recoil Hose Installation and Maintenance Instructions EL450 technical data Inlet Connection 1/2” BSP (DN15) Minimum Water Supply DN15 Line Size Working Pressure Range Min 50 kPa Max 500 kPa 6 Lpm Minimum Flow Rate Suggested Flushing Water Tepid...
-
Page 2: Installation Compliance
installation compliance Before proceeding with installation ensure all operating and dimensional specifications are suitable for the intended installation. This product is a supplemental equipment to provide immediate flushing to support plumbed and self-contained emergency eyewash and shower equipment but does not replace them. Enware products are to be installed in accordance with the Plumbing Code of Australia (PCA), AS/ NZS3500 and instructions provided. -
Page 3: Installation
installation 1. Set out and Rough-in: Provide a 1/2” BSP male fitting for water inlet, allowing approximately 12mm of thread proud from finished wall. SEE IMAGE 01 2. Prior to installation, flush the line thoroughly to remove debris. Once the line is clear of debris, proceed to next step. -
Page 4: Troubleshooting
operating instructions Instructions for all emergency equipment should be readily accessible to maintenance and training personnel. To turn ON, grab Trigger Gun up from Bracket, and squeeze Trigger Handle. Water starts to flow. Apply to body parts needing treatment. SQUEEZE TO TURN ON To turn OFF, release Trigger Handle. - Page 5 components DESCRIPTION PRODUCT CODE Wall Mount Elbow Swept ½” BSP MF C/P Outlet Shroud and Dust Cap Aerator 13 Lpm Rubber Washer 5, 6 Aerator and Washer ESPE015 4, 5, 6 Outlet ESPE016 Wall Bracket FS071 Trigger Gun Hose Assembly 1/2” Nylex Self Store ESP011 Aerator Key SP304...
-
Page 6: Service And Maintenance
service & maintenance The drench hose needs to be activated weekly for a period long enough to verify operation and ensure the flushing fluid is available (AS4775 & ANSI Z358.1). Note: the intent is to ensure that there is a flushing fluid supply at the head of the device, to clear the supply line of any sediment build up that could prevent fluid from being delivered to the head of the device, and to minimize microbial contamination due to sitting water. - Page 7 COVER DOME RED FIBRE WASHER PISTON SERVICE KIT FS077NS TRIGGER HANLDE FS790 AERATOR ESPE015 DUST COVER AERATOR KEY SP304 CLEANING Enware Product should be cleaned with a soft damp cloth using only mild liquid detergent or soap and water. Do not use cleaning agents containing a corrosive acid, scouring agent or solvent chemicals.
-
Page 8: Product Warranty Statement
- WATTS AUSTRALIA EFFECTIVE FROM 20 November 2023 3. Our responsibilities This Warranty Statement applies to products supplied by Australian Valve (a) In the event that the Supplier is reasonably satisfied that there is a Group Pty Ltd (ACN 068 227 270) (AVG) or Enware Pty Ltd (ACN 662...
