Pedestal Mounted Emergency Eye & Eye/
Face Wash

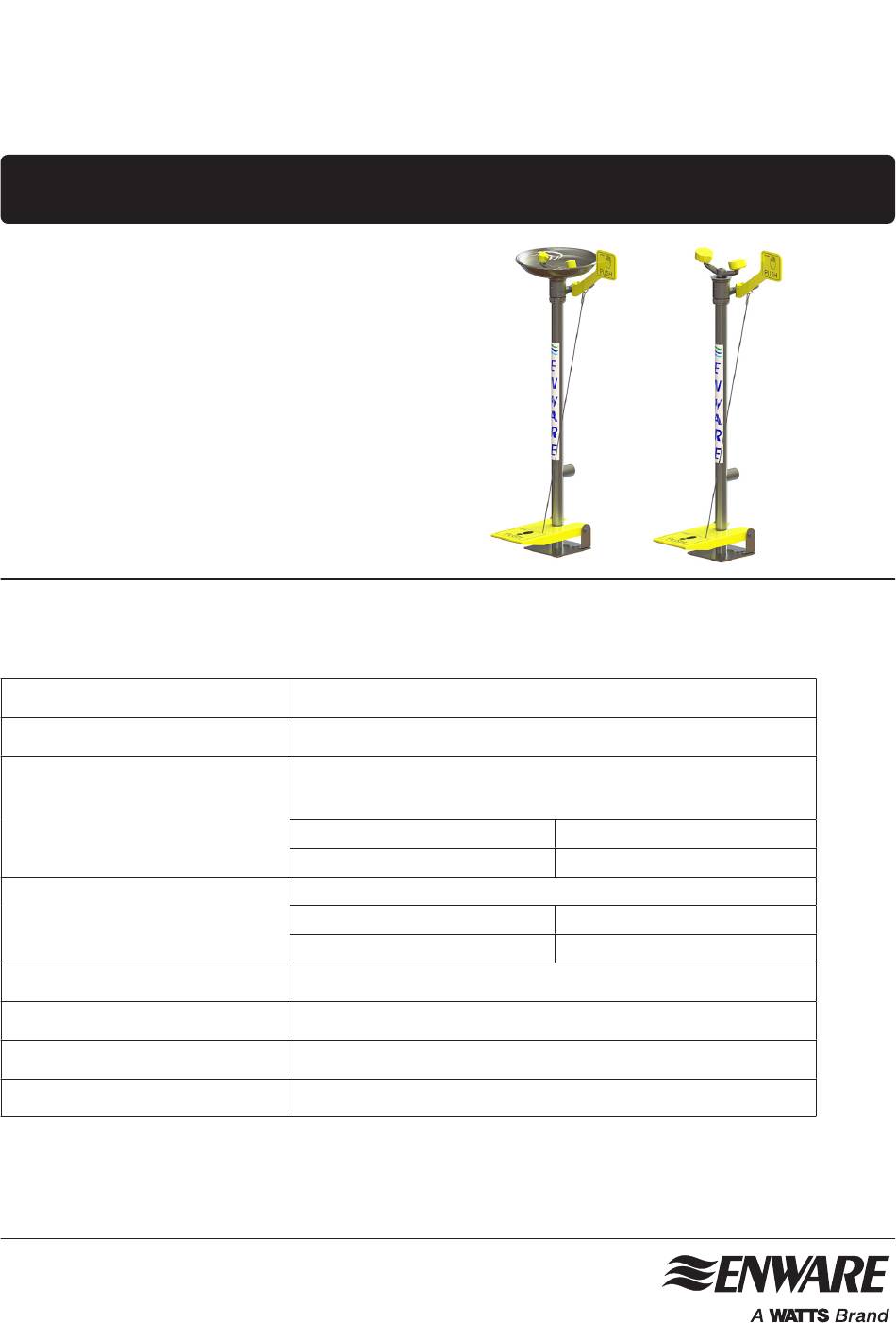

Installation and Maintenance Instructions
EEE180
ENBE180
EEE210
ENBE210
EFE360
ENBE360
EFE390
ENBE390
technical data
Inlet Connection
Water Supply Line Size
Minimum Requirements
to achieve ANSI Z358.1-2009 and
AS/NZS 4775 2007 compliance
Enware Performance
Waste water outlet connection
Mounting Base Plate Size
Approximate Shipping Weight
Shipping Dimensions
I00011_27 Feb 2024
1300 369 273 | info@enware.com.au | enware.com.au
1/2" BSP male (DN 15mm)
Supply piping shall be adequately sized to meet flow requirements
Min Working Pressure: 210 kPa (30 psi)
Caution should be taken when pressure exceeds 550 kPa (80 psi)
Eye Wash Minimum Flow
Eye/Face Wash Minimum Flow
At Working Pressure: 210 kPa (30 psi)
Eye Wash Flow
Eye/Face Wash Flow
G 1-1/4" BSP
150 x 150 mm with 4 bolts 11 mm
7 - 8 kg
1150 x 290 x 200 mm
1.5 lpm (0.4 US gpm)
11.4 lpm (3 US gpm)
17 lpm (4.5 US gpm)
26 lpm (6.9 US gpm)
Advertisement
Related Manuals for Watts ENWARE EEE180
Summary of Contents for Watts ENWARE EEE180
- Page 1 Pedestal Mounted Emergency Eye & Eye/ Face Wash Installation and Maintenance Instructions EEE180 ENBE180 EEE210 ENBE210 EFE360 ENBE360 EFE390 ENBE390 technical data Inlet Connection 1/2” BSP male (DN 15mm) Water Supply Line Size Supply piping shall be adequately sized to meet flow requirements Min Working Pressure: 210 kPa (30 psi) Minimum Requirements Caution should be taken when pressure exceeds 550 kPa (80 psi)
-
Page 2: Installation Compliance
installation compliance Installation of emergency showers, eye and eye/face wash equipment shall be in accordance with AS/NZS4775-2007 or ANSI Standard Z358.1-2009 - whichever is applicable to the installation. Supply Lines Flushing Fluid Temperature Installation procedures shall be in accordance Continuous and timely irrigation of affected with proper plumbing practices. - Page 3 dimensions EFE390 1/2" (BSP )WITH OLIVE COMPRESSION FITTING 1-1/4" (BSP) WASTE OUTLET ENBE390 1/2" (BSP) WITH OLIVE COMPRESSION FITTING www.enware.com.au Page 3 © Enware Pty Ltd...
- Page 4 components Item Description Pedestal frame Bowl ESPE008 Eye wash waste with inlet control valve ESPE818 Grub screw M6 x 12mm waste tee ESPE814 Ball valve and flow control assembly ESP005 FF half inch SS one piece Compression nut 1/2” Nylon olive 1/2” BSP Push handle ESPE010 Eye wash outlet tee piece assembly...
- Page 5 Item Description Mesh Filter 1/2” (40 Mesh) ESPE811 O-rings for Eye & Eye/Face Wash Tee Piece ESPE812 (2x Spigot O-rings, 1x Strainer Cap O-ring) Eye Wash Dustcover With Aerator (1 Pair) and key ESPE016 Aerator and Washer to Suit Eye Wash (1 each) ESPE015 Eye/Face Wash Outlet (each ESPE012...
-
Page 6: Installation
installation 1. Place the unit so there is enough space for any 150mm additional plumbing fixtures being used. Bolt the base of pedestal frame to a level floor, 100 TYP using 4 corrosion resistant anchors (refer to AS/NZS 2982.1, ANSI Z358.1-2009 and AS/ NZS4775-2007). - Page 7 8. (For Foot-Operated Models Only) Remove the two bolts of the foot pedal at the hinge and dismantle foot pedal assembly. Keep the bolts and nuts at hand. Loosen the two rear mounting bolts on the base of pedestal frame. Slide the foot pedal bracket under the washers of the two mounting bolts, and re-tighten.
-
Page 8: Testing And Commissioning
testing & commissioning / operation / maintenance TESTING & COMMISSIONING Pull back up to turn off 1. Before turning on the water supply to the unit make sure eye wash valve is closed. Pull forward the eye wash “PUSH” handle back up to ensure the valve is in the closed position. -
Page 9: Foot Pedal Operation
Pull back up to turn off EYE, EYE/FACE WASH OPERATION The Eye/Face wash is activated by pushing forward (away from the user) the flat “PUSH” handle. This opens the 1/2" ball valve allowing water to flow to the Eye, Eye/Face wash outlets. To close the valve and stop flow, gently pull the handle back up (towards the user). -
Page 10: Maintenance
AS4775–2007 Safety Equipment Minimum Performance Checklist Installation shall be in accordance with proper plumbing practices. Supply piping shall be adequately sized to meet flow requirements. (Sec D1) All plumbed emergency equipment shall be connected to a continuous source of flushing fluid supply which may be drinking water, preserved water, preserved buffered saline solution or other medically acceptable solution manufacturedacceptable solution... - Page 11 ANSI Z358.1-2009 Safety Equipment Minimum Performance Checklist RECOMMENDED TESTING FLOW PRESSURE IS 30 psi (+.5 psi -.0 psi) Safety equipment shall be accessible within 10 seconds of hazard. (Sec 4.5.2, 5.4.2, 6.4.2, 7.4.2) Safety equipment shall be located on the same level as ...
-
Page 12: Product Warranty Statement
- WATTS AUSTRALIA EFFECTIVE FROM 20 November 2023 3. Our responsibilities This Warranty Statement applies to products supplied by Australian Valve (a) In the event that the Supplier is reasonably satisfied that there is a Group Pty Ltd (ACN 068 227 270) (AVG) or Enware Pty Ltd (ACN 662...
