Watts ENWARE Lutana ELB4400 Installation And Maintenance Instructions

Shroud

Download this manual

Enware Lutana Shroud

Installation and Maintenance Instructions

ELB4400

* Dimensions are nominal and subject to normal ceramic manufacturing variations due to the nature of the manufacture of

vitreous china.

NOTE: Enware Australia advises:

1. Due to ongoing Research and Development, specifications may change without notice.

2. Component specifications may change on some export models.

I00299_10 Sep 2024

1300 369 273 | info@enware.com.au | enware.com.au

Shroud xing bracket

drill holes

150

230

FRONT VIEW

295

SIDE VIEW

Rev. B.1

Need help?

Do you have a question about the ENWARE Lutana ELB4400 and is the answer not in the manual?

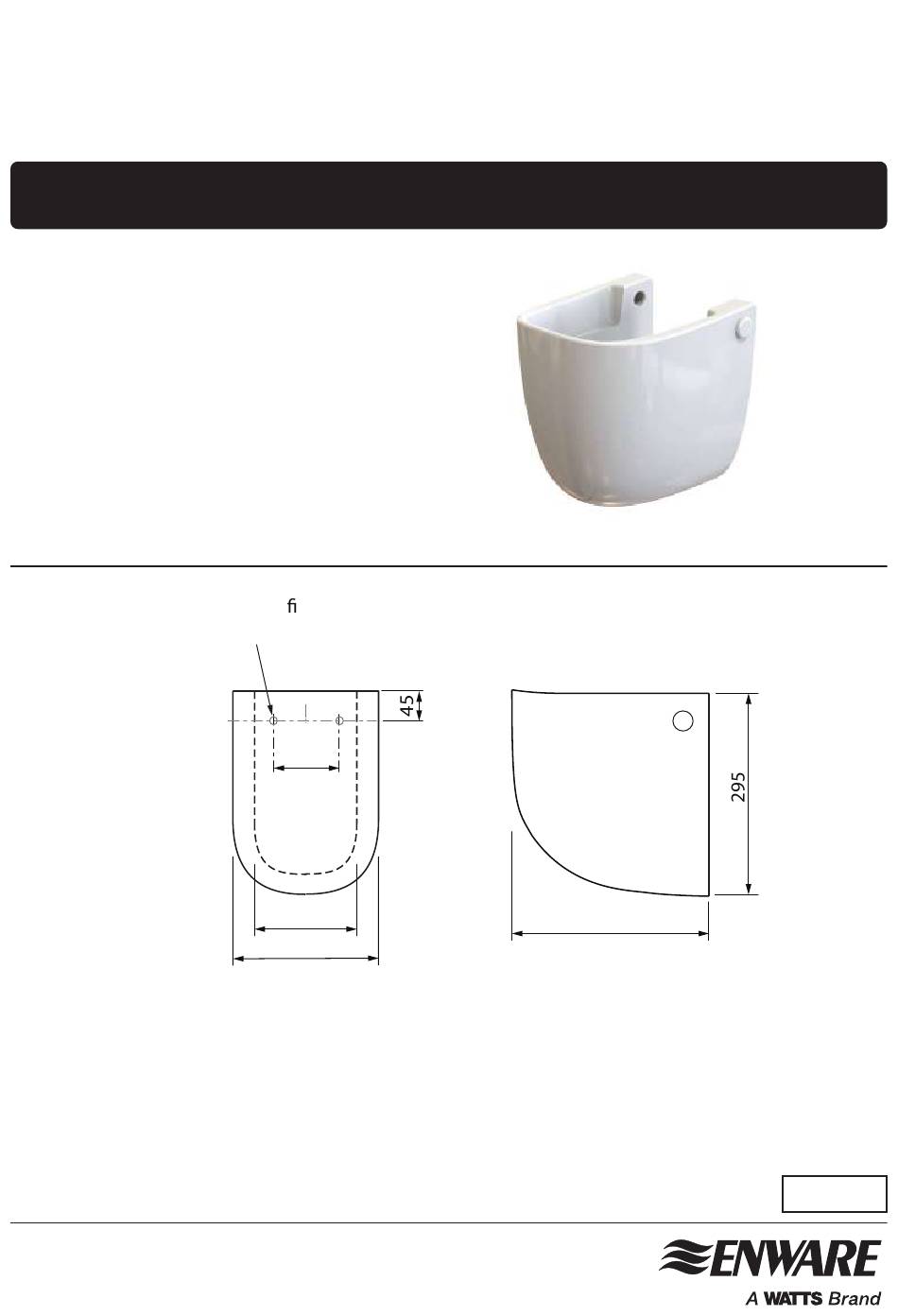

Page 1 Enware Lutana Shroud Installation and Maintenance Instructions ELB4400 Shroud xing bracket drill holes FRONT VIEW SIDE VIEW * Dimensions are nominal and subject to normal ceramic manufacturing variations due to the nature of the manufacture of vitreous china. NOTE: Enware Australia advises: 1.
Page 2 COMPONENTS INCLUDED • Ceramic Shroud • Bracket & fixing bolt kit (Part No: 495325) INSTALLATION 1. Ensure there is adequate wall structure and suitable reinforcement behind finished wall for basin and shroud fixings at the required height position. 2. Mount Enware Lutana basin on wall and level. 3.
Page 3 BASIN WITH SHROUD (ELB4400) Lutana Shroud (ELB4400) meets the clearance requirements of AS1428.1-2021 KNEE/TOE CLEARANCE (AS1428.1-2021) FINISHED FLOOR * Minimum height to comply with AS1428.1, maximum 830mm. Recommended height 850mm CLEANING Enware Product should be cleaned with a soft damp cloth using only mild liquid detergent or soap and water.
Page 4 - WATTS AUSTRALIA EFFECTIVE FROM 20 November 2023 3. Our responsibilities This Warranty Statement applies to products supplied by Australian Valve (a) In the event that the Supplier is reasonably satisfied that there is a Group Pty Ltd (ACN 068 227 270) (AVG) or Enware Pty Ltd (ACN 662...
